Vacuum Brazed Diamond Finger Bit Brazing Milling Cutter for Ceramic Tile Granite Marble

Product Name

Diamond Finger Bit Cutter for Enhancing Trimming

Style

Diamond Bits

Brand

SHDIATOOL

Colour

Silver

Specification

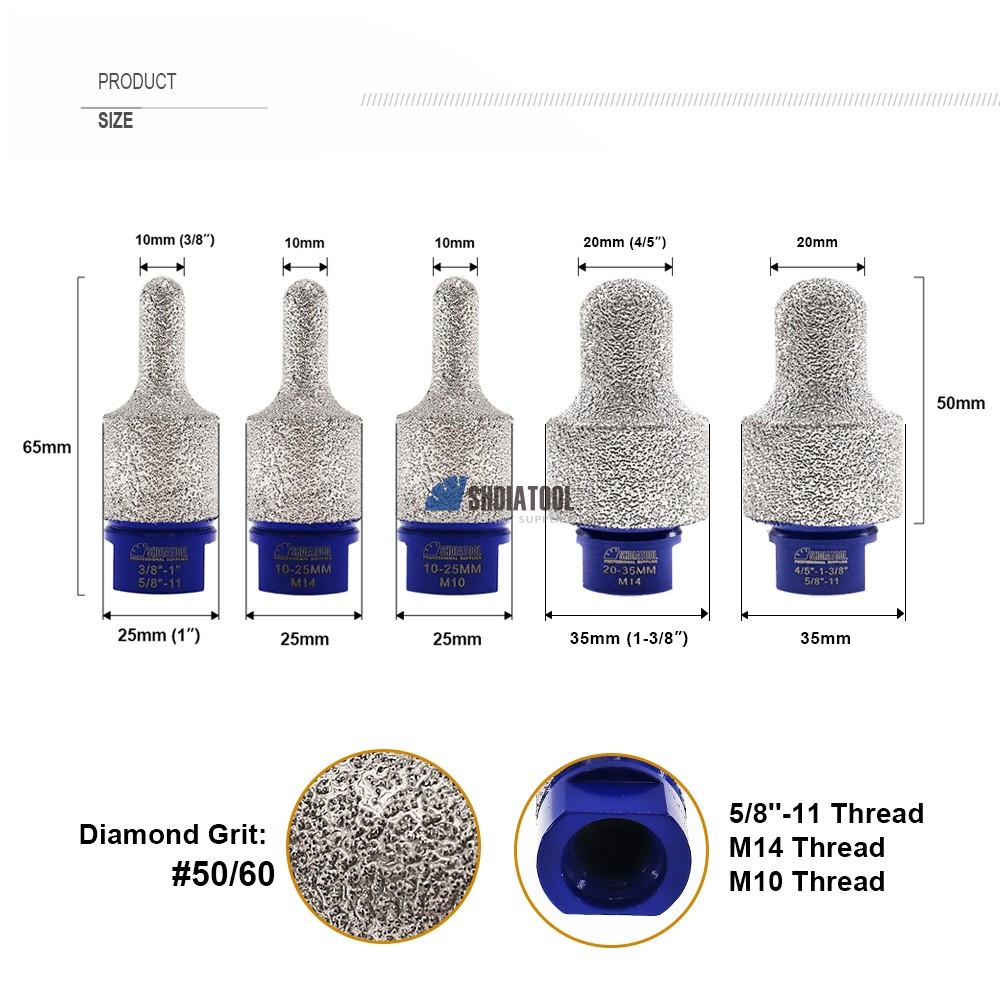

Diameter 10mmx25mm,Workable length 50mm,Total Length 65mm,Grit #50/60;
Diameter 20mmx35mm,Workable length:50MM, Total Length: 65mm,Grit #50/60;

Connection

M14 (for EU) or 5/8"-11 Thread(for NA)

Feature

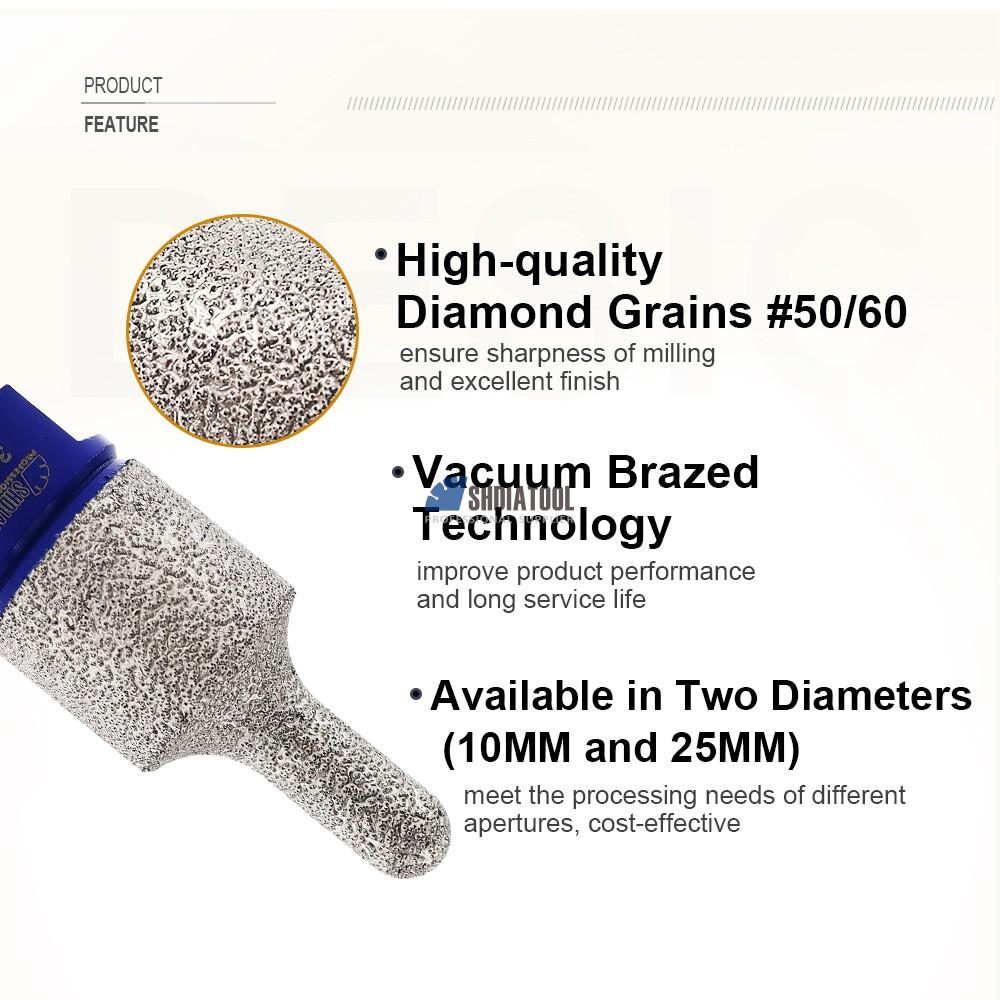

1. Adopting the cutting-edge vacuum brazing processing technology, the matrix and diamond are closely combined by vacuum welding,and the service life is longer;

2. One grinding rod, with two diameters (10-25mm), meets the processing needs of different
apertures, with high cost performance and cost saving;

3. #50/60 diamond particles provide you with excellent working face effect;
4. Choose high-end diamond to provide more efficient working speed;

5. For angle grinder, very easy to operate;

6. The recommended speed is 6000rpm, and the maximum speed is 11000rpm.

Application

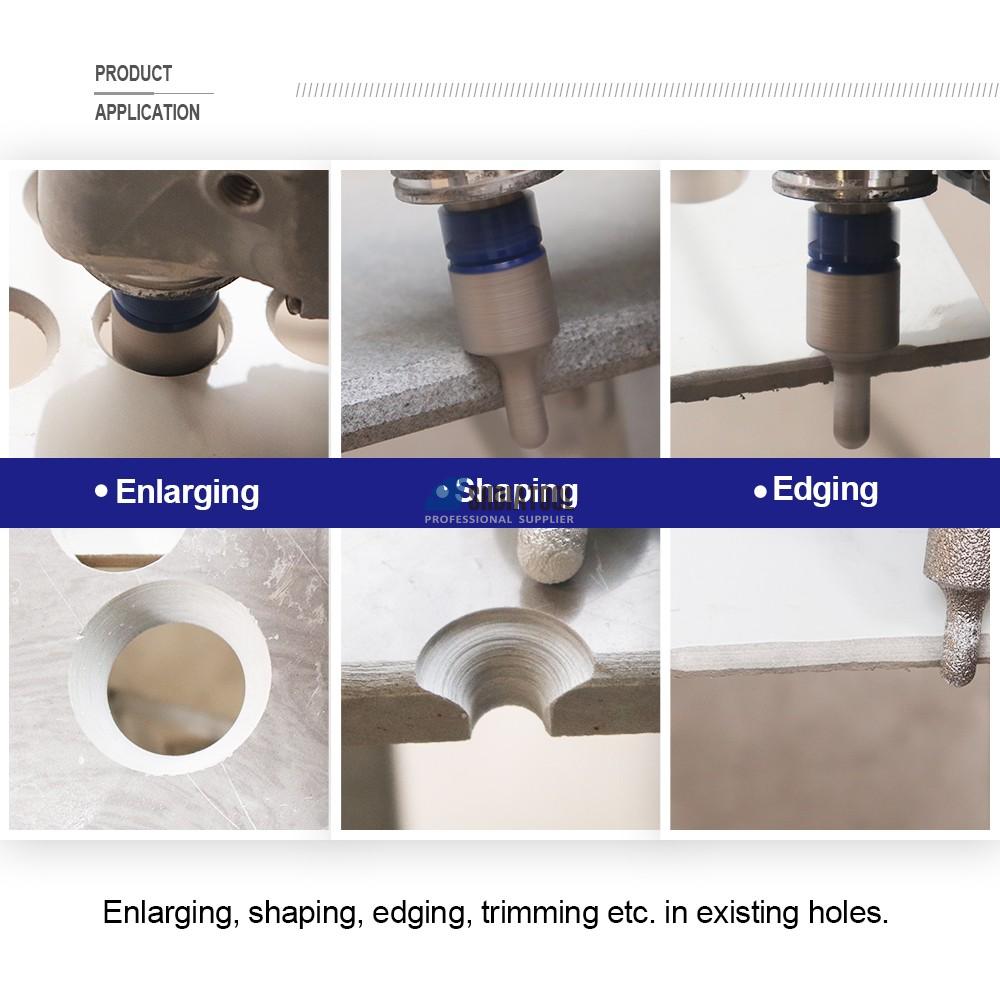

1. Used for hole processing of Ceramic Tile, Porcelain Tile，Marble, Granite and other materials;

2. It is not recommended to drill as a drill bit; It is mainly to enlarge the formed hole or process the hole with special shape;

3. There is a transition arc in the middle of the grinding rod, and the outer edge of the above materials can also be shaped by arc;
