Home Products Vacuum Brazed Diamond Tools Vacuum Brazed Core Bits Dia 48mm Vacuum Brazed Diamond Chamfer M
Dia 48mm Vacuum Brazed Diamond Chamfer Milling Finger Bit For Beveling Sharping Trimming Existing Holes on Granite Marble Tile
  1. Dia 48mm Vacuum Brazed Diamond Chamfer Milling Finger Bit For Beveling Sharping Trimming Existing Holes on Granite Marble Tile
  2. Dia 48mm Vacuum Brazed Diamond Chamfer Milling Finger Bit For Beveling Sharping Trimming Existing Holes on Granite Marble Tile
  3. Dia 48mm Vacuum Brazed Diamond Chamfer Milling Finger Bit For Beveling Sharping Trimming Existing Holes on Granite Marble Tile
  4. Dia 48mm Vacuum Brazed Diamond Chamfer Milling Finger Bit For Beveling Sharping Trimming Existing Holes on Granite Marble Tile
  5. Dia 48mm Vacuum Brazed Diamond Chamfer Milling Finger Bit For Beveling Sharping Trimming Existing Holes on Granite Marble Tile

Dia 48mm Vacuum Brazed Diamond Chamfer Milling Finger Bit For Beveling Sharping Trimming Existing Holes on Granite Marble Tile

Product Price:12.35USD

Product Item:A8678

Milling Height:25mm

Beveling Height:30mm

Adapter:5/8

Grit:#50/60

"Diamond Finger Milling Chamfer Bit"  , "Diamond Beveling Chamfer Cones Milling Bit"
Inquiry Whatsapp

Description

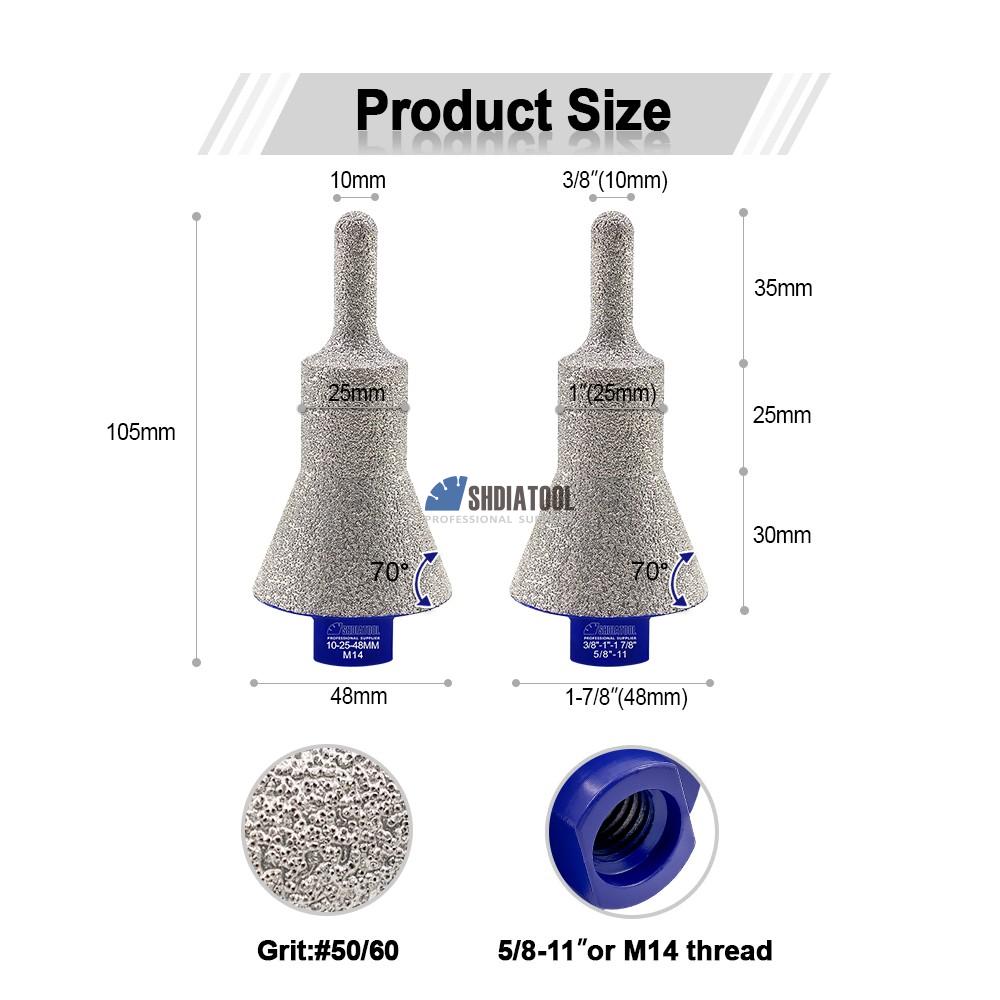

Product name

Vacuum Brazed For Diamond Beveling Chamfer Cones Milling Bit for Holes Trimming and Enlarging

Diameter

48mm

Milling Height

25mm

Beveling Height

30mm

Total Height

105mm

Adapter

5/8"-11 or M14 thread

Grit

#50/60

Feature

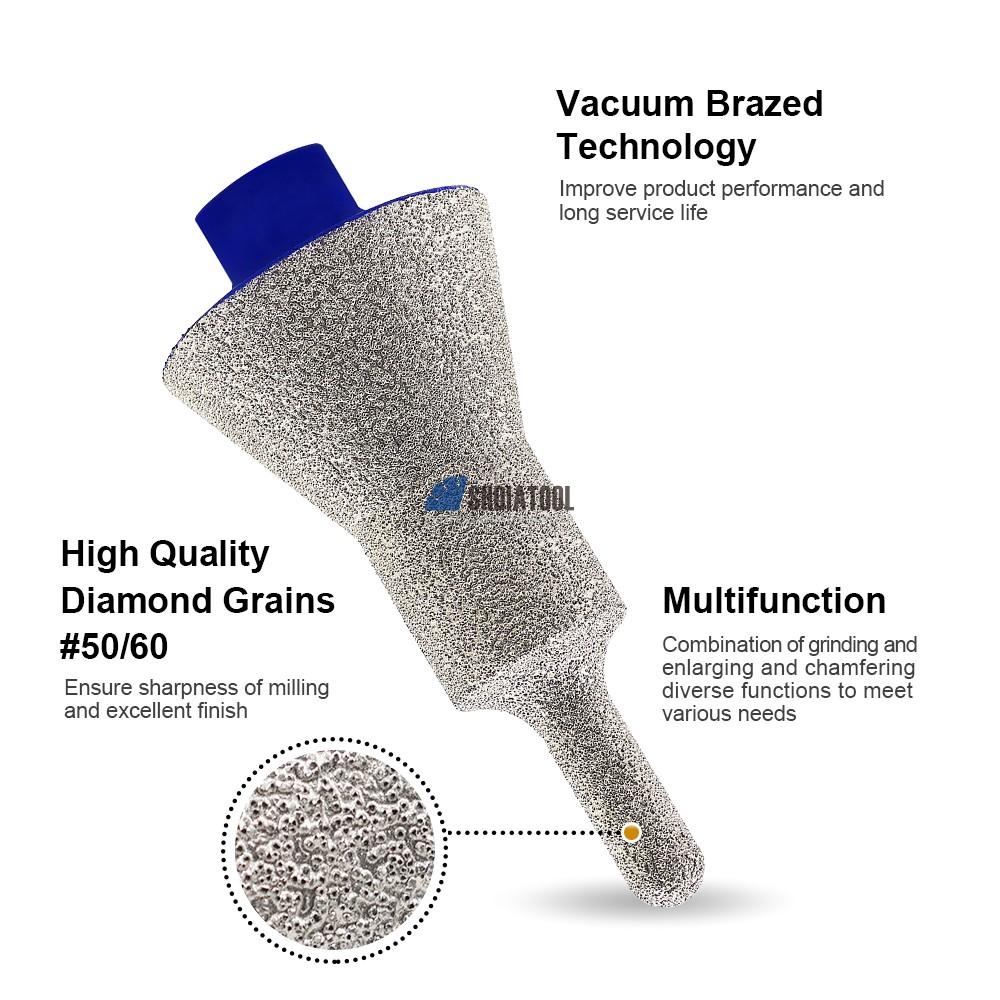

1, Milling Sharping Chamfering device combined with a special design, can meet a variety of needs; 70 ° bevel angle can ease the chamfering, Beveling, smooth rough hole;

2, 10-25mm diameter finger milling bits to meet the processing needs of different hole diameters, cost-effective, cost savings;

3, #50/60 high-quality diamond grit covered with work surface, grinding more delicate, finish effect is more outstanding;

4, Cutting-edge vacuum brazing technology, sharp and durable, long service life;

5, Provide reaming, chamfering, grinding, polishing and other functions, suitable for a variety of scenarios in a variety of molded hole reprocessing;

6, Wet and dry use, providing M14 or 5/8"-11 threads, suitable for angle grinders, easy to operate;

Application

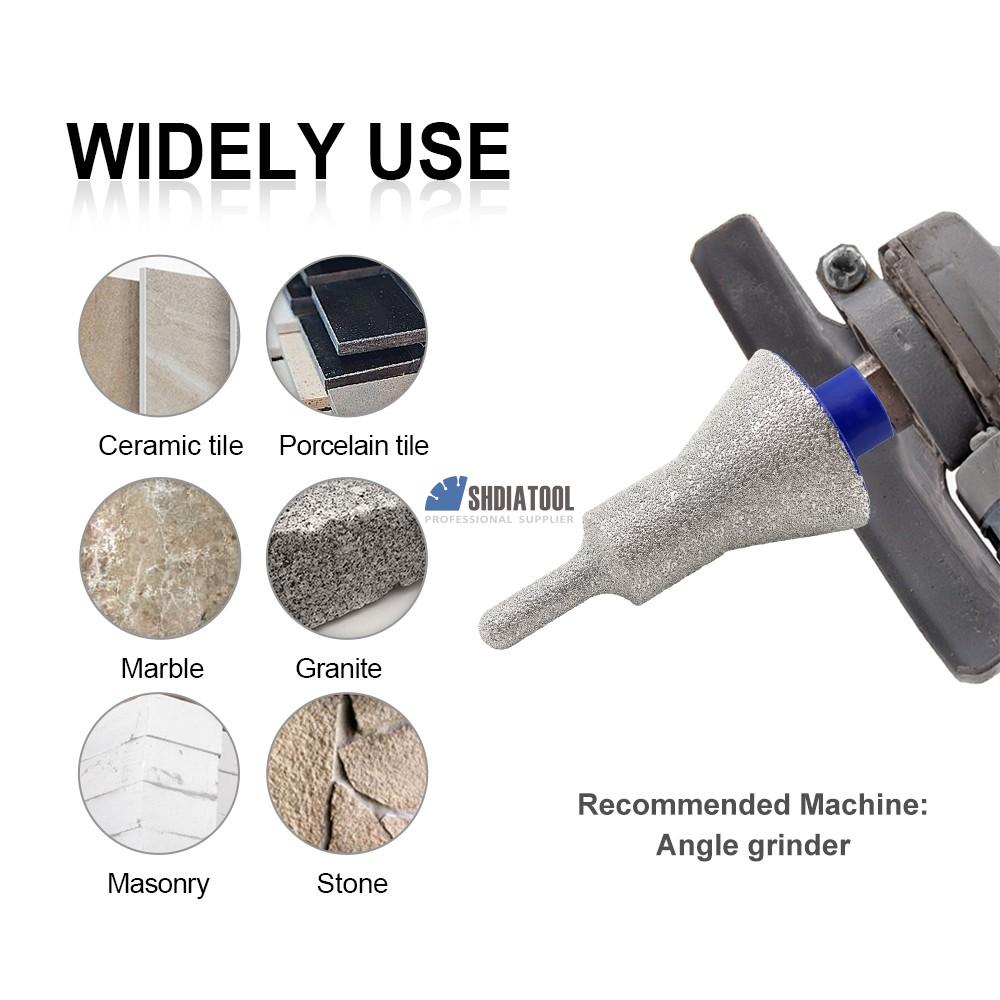

1, used for hole processing of ceramic pottery, porcelain tile, marble, granite and other materials;

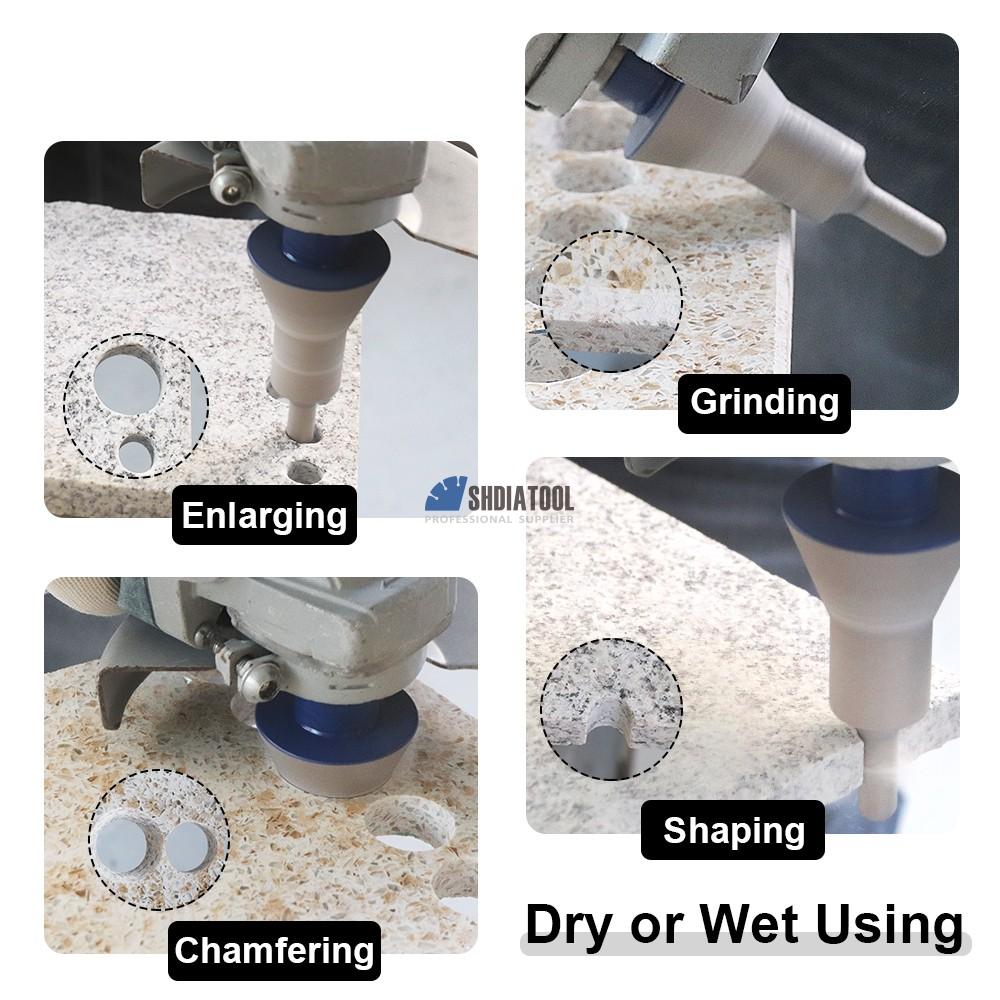

2, the hole has been molded to expand, chamfering, grinding, special shape shaping and other processing treatment, hole contour and finish repair and so on;
3、Applicable to grinding, chamfering work, is not recommended to do the work of direct drilling;
