20/35/50mm Hex Shank Diamond Beveling Chamfer Bit For Porcelain Tile Marble Ceramic Granite Quartz

Product name

Vacuum Brazed Diamond Beveling Chamfer Bit Hole Trimming Diamond Milling Bits

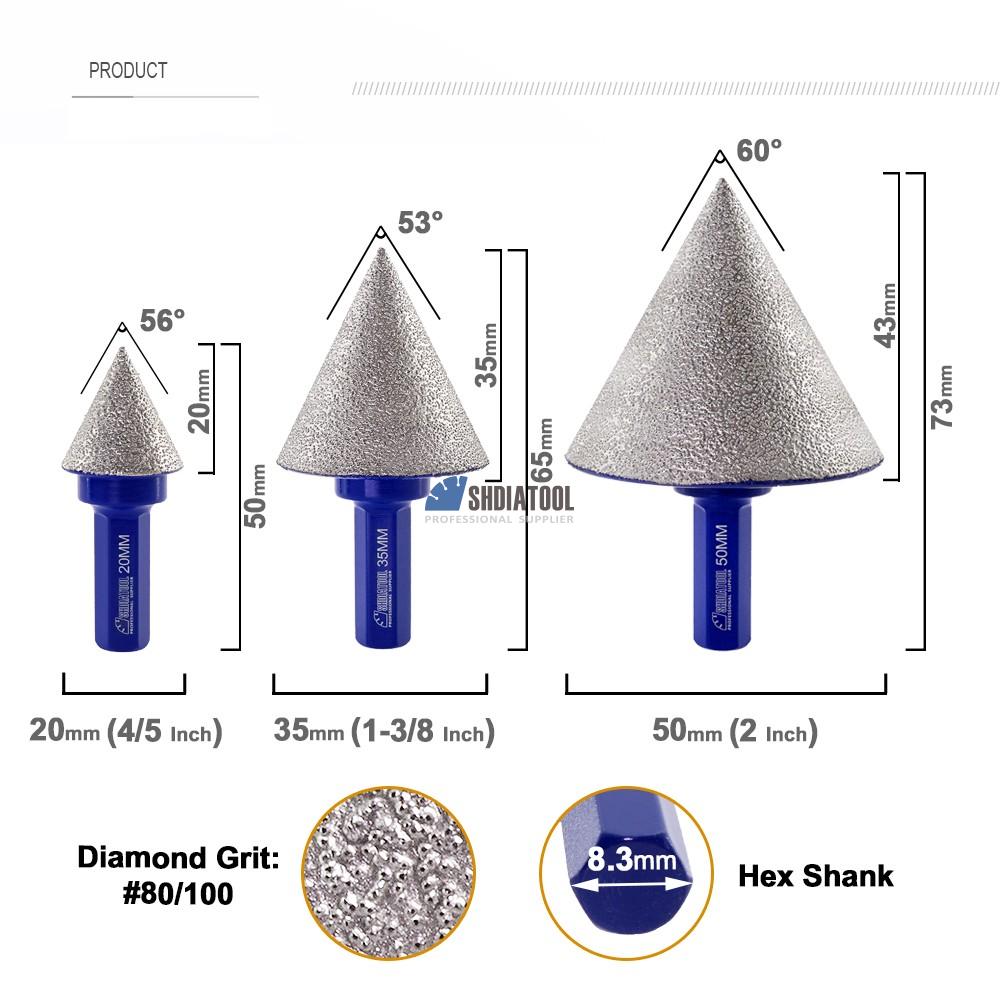

Diameter

20mm/35mm/50mm

Chamfer working height

20mm/35mm/43mm

Adapter

Hex Shank

Grit

#80/100

Feature

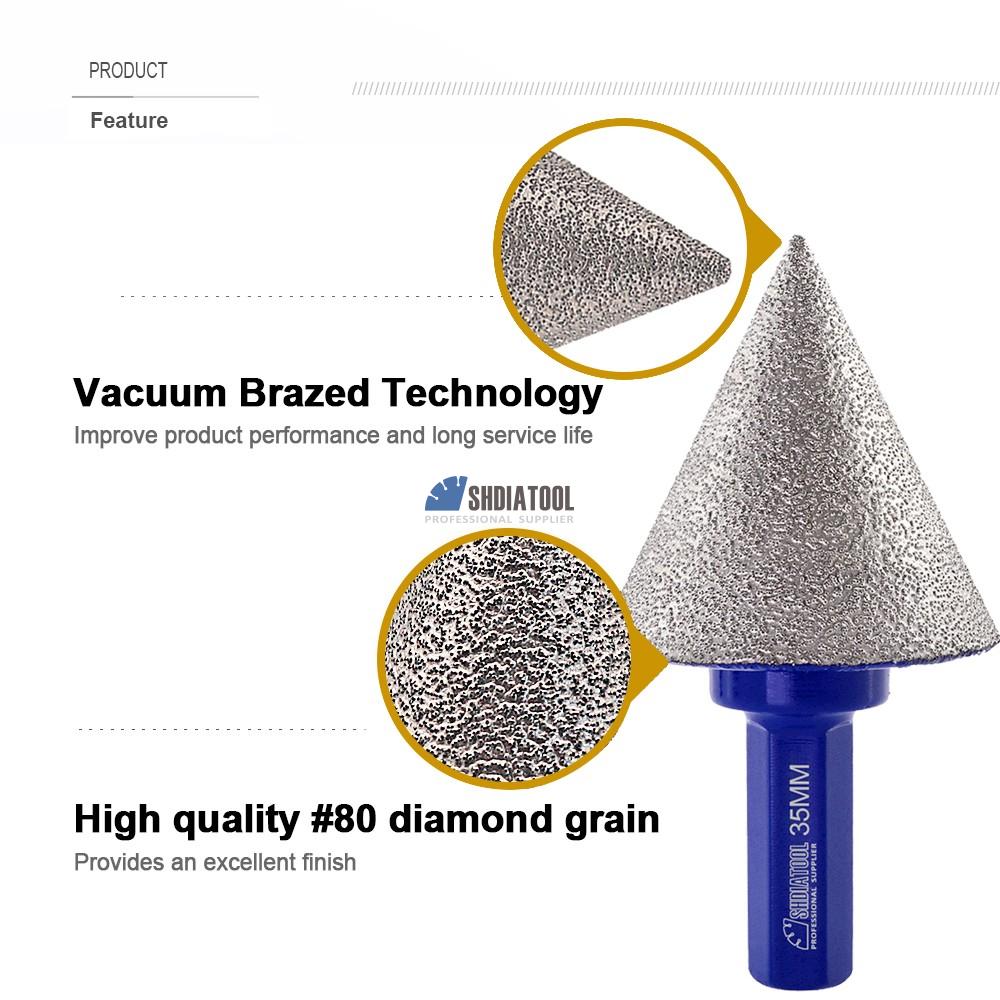

1. Cutting edge high-end vacuum brazing process provides better performance and longer service life for the product;
2. The #80 fine-grained diamond, through fine grinding, can produce excellent surface effect on the edge of the hole, smooth and clean;
3. Reduce the risk of cracking with standard and large format tiles subjected to tension (eg tightened plumbing, led lights etc);
4. It is very useful to improve aesthetic degree for the edge finishing of exposed holes.
5. Dry or wet use.

Application

1. Used for processing ceramic tiles, porcelain tiles, marble, granite and other materials;

2. Enlarge, chamfer, grind and shape the formed holes, and repair the hole contour and finish;

3. It is suitable for grinding and chamfering work, and direct drilling is not recommended;
