20/25/35mm Vacuum Brazed Diamond Drilling Finger Milling Bits M14 Thread for Granite Marble Ceramic Drilling Tool

item

SHDIATOOL Diamond Drilling Crowns Milling Finger Bits Core Drill Bits

Customized support

OEM, ODM

Brand Name

SHDIATOOL

Technology

Vacuum Brazed

Application

1. Used for processing ceramic tile, porcelain tile, marble, granite and other materials;
2.Dry or wet use, suitable for angle grinder.

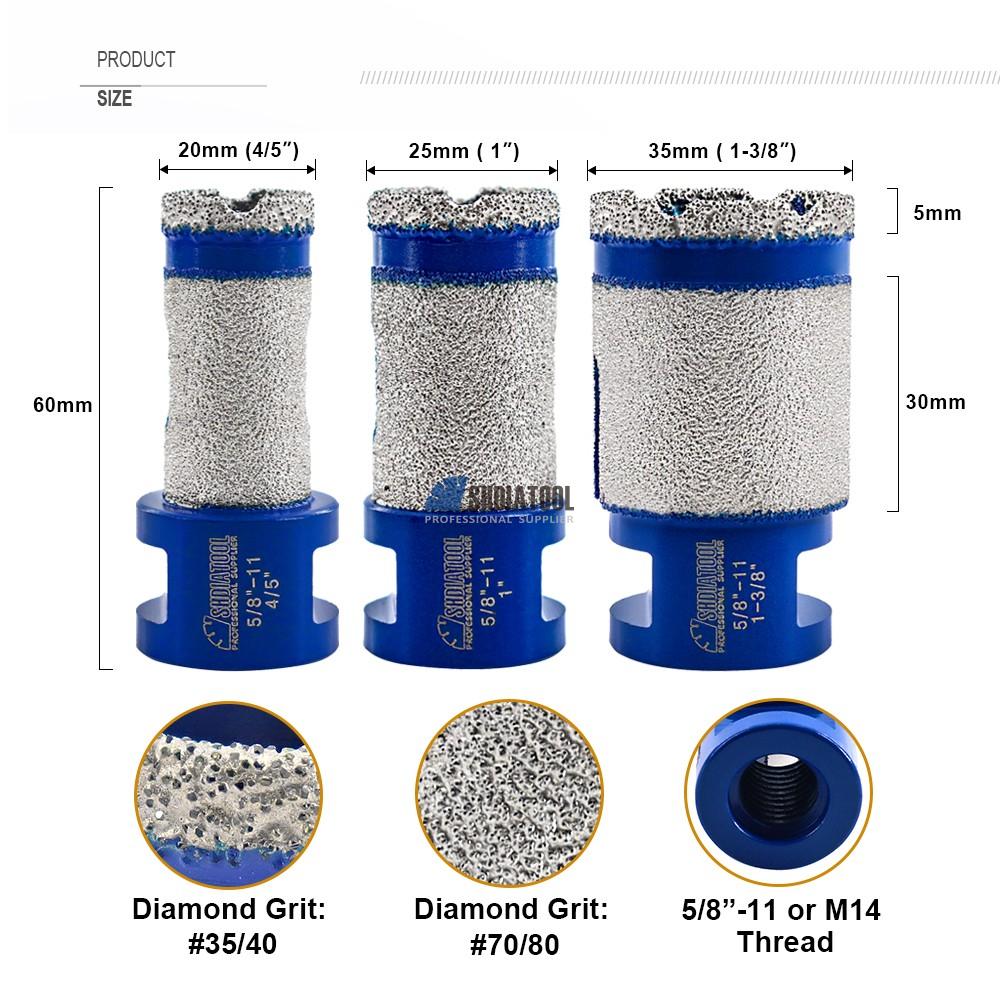

Specification

·Diameter 20mm
Drilling part: Diameter 20mm, Height 5mm; Grit #35/40;
Grinding part: Diameter 20mm, Height 35mm; Grit #70/80
Total length: 60mm

·Diameter 25mm:
Drilling part: Diameter 25mm, Height 5mm; Grit #35/40;
Grinding part: Diameter 25mm, Height 35mm; Grit #70/80
Total length: 60mm

·Diameter 35mm:
Drilling part: Diameter 35mm, Height 5mm; Grit #35/40;
Grinding part: Diameter 35mm, Height 35mm; Grit #70/80
Total length: 60mm

Feature

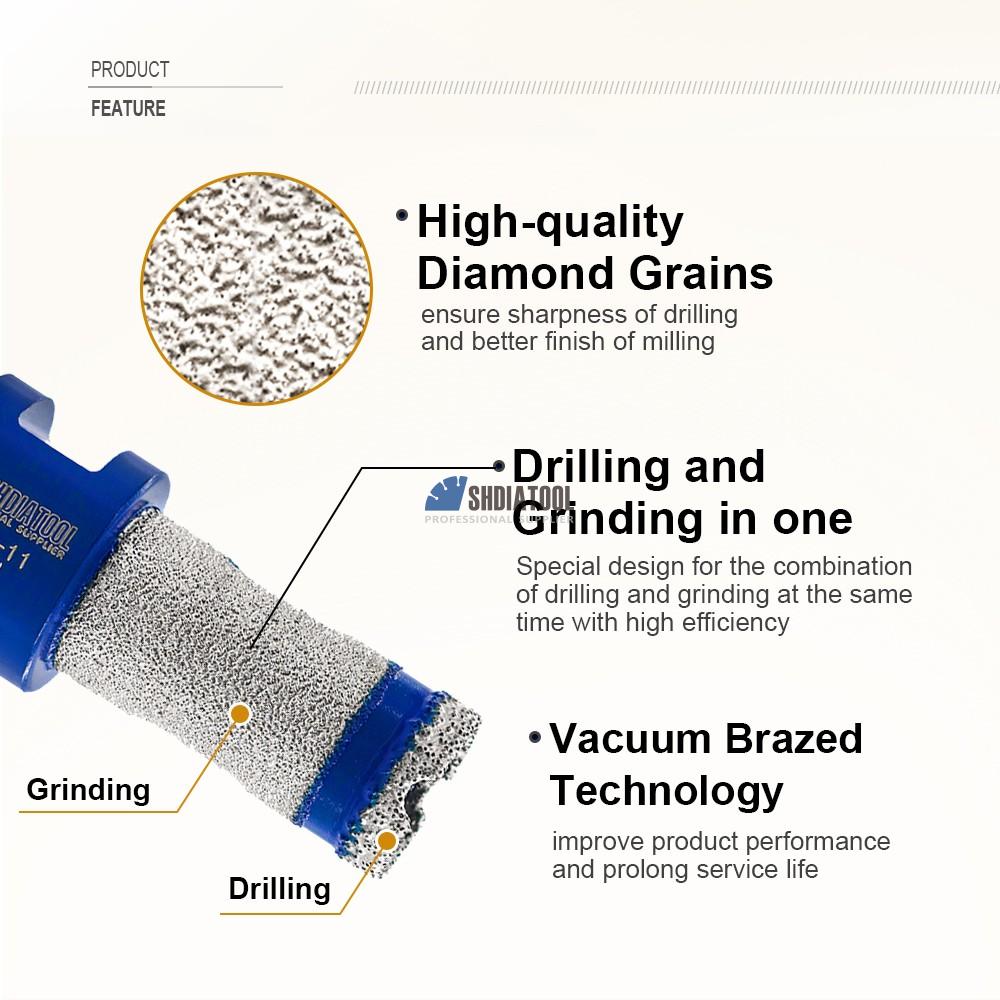

1、Drilling and Grinding in one Special design for the combination of drilling and grinding at the same time with high efficiency
2、Vacuum Brazed Technology improve product performance and prolong service life
3、High-quality Diamond Grains ensure sharpness of drilling and better finish of milling
4、Recommended speed 6000RPM, maximum speed 11000RPM.
5、Wet and dry, suitable for angle grinder, convenient operation.
8、Do not use impact or hammering modes when switching to equipment with impact and hammering modes.
