X Mesh Turbo Diamond Blade Cutting Tile Porcelain Marble (9 sizes)X Mesh Turbo Diamond Blade Cutting Tile Porcelain Marble (9 sizes)X Mesh Turbo Diamond Blade Cutting Tile Porcelain Marble (9 sizes)

X Mesh Turbo Diamond Blade Cutting Tile Porcelain Marble (9 sizes)

  • Product Item:A391
  • Diameter 4“-14”
  • For ceramic porcelain tile marble cutting
  • Dry or wet cutting
  • diamond disc  , diamond wheel  , tile saw blade cutting disc  , saw blades  , tile cutting disc
    Inquiry Send Email Buy Online

    Description

    Specification:

    105MM Diameter 4"/105MM, Bore 22.2MM with a 16mm washer, Diamond height 10MM, Segment thickness 1.2MM.

    115MM Diameter 4.5"/115MM, Bore 22.2MM, Diamond height 10MM, Segment thickness 1.2MM.

    125MM Diameter 5"/125MM, Bore 22.2MM, Diamond height 10MM, Segment thickness 1.2MM.

    175MM Diameter 7"/175MM, Bore 25.4MM with a 22.2mm washer, Diamond height 10MM, Segment thickness 1.6MM.

    200MM Diameter 8"/200MM, Bore 25.4MM with a 22.2mm and 16mm washer, Diamond height 10MM, Segment thickness 1.8MM.

    230MM Diameter 9"/230MM, Bore 25.4MM with a 22.2mm washer, Diamond height 10MM, Segment thickness 1.8MM.

    250MM Diameter 10"/250MM, Bore 25.4MM with a 20mm and 16mm washer, Diamond height 10MM, Segment thickness 1.8MM.

    300MM Diameter 12"/300MM, Bore 25.4MM with a 20mm washer, Diamond height 10MM, Segment thickness 2MM.

    350MM Diameter 14"/350MM, Bore 25.4MM with a 20mm washer, Diamond height 10MM, Segment thickness 2.2MM

    Application: For ceramic porcelain tile marble cutting

    Feature:

    Dry or wet cutting,

    Very thin segments provide chip free cutting

    Hot-pressed sintered blade with very high quality diamond grain provide long working life.

    X Mesh turbo rim segment help to cool and bring the dust out, so get more efficient and better performance

    Reinforced ring core on both side of blade, make cutting more stable and get better finishing.

    ==============The End==============

    Note: These products are marked with our brand. If you do not want our brand name, please leave us message, we could send you products without brand.

    Customize service: If you order more, we could mark your brand name on our products

    Inquiry Us





    Related Products

    Welded Diamond Single Row Cup Wheel

    Welded Diamond Single Row Cup Wheel

    Multi-holes Diamond Turbo saw Blade

    Multi-holes Diamond Turbo saw Blade

    Quick fit hex shank dry diamond drill bit

    Quick fit hex shank dry diamond drill bit

    Mesh Diamond Turbo Blade(5 sizes availble)

    Mesh Diamond Turbo Blade(5 sizes availble)

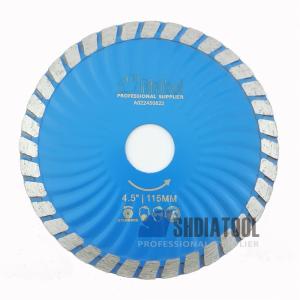

    Diamond waved Turbo Blade for stone concrete cutting (2 sizes available)
