Vacuum Brazed M14 Tile Porcelain Core Drill Bit Diamond Drills Hole Saw Kit Hole Cutter Diamond Drill Bit Chamfer Set

Item

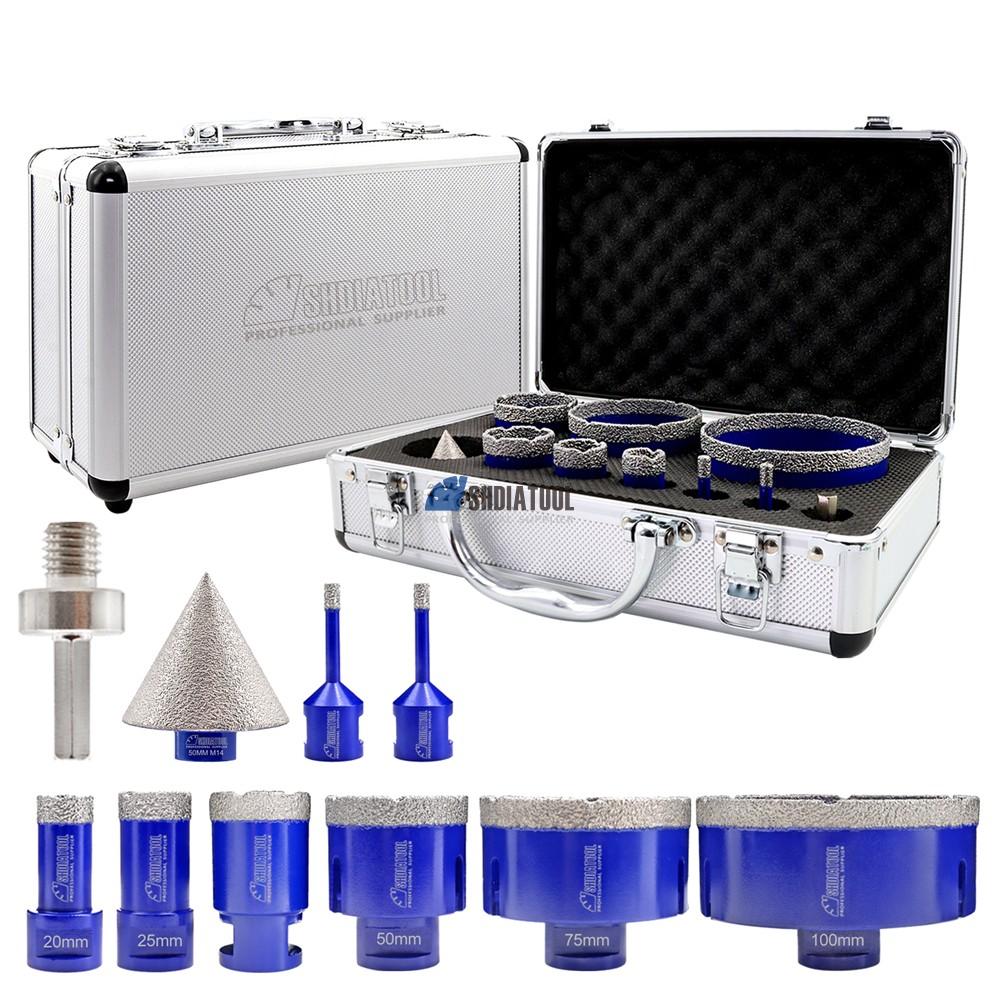

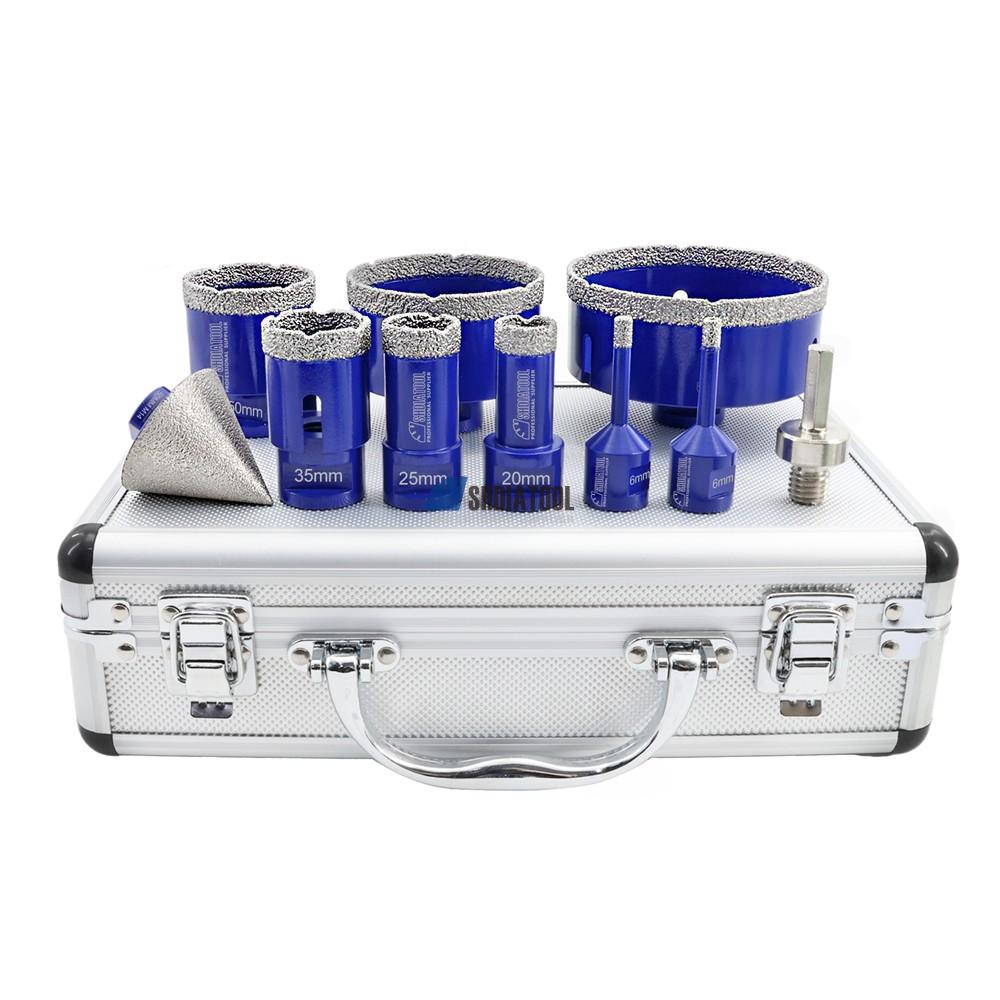

1set/10pcs M14 Thread drill bits with box 6/6/20/25/35/50/75/100mm 50mm Chamfer Bit+HEX Adapter

Brand Name

SHDIATOOL or OEM

Type

Core Drill Bit

Use

Ceramic porcelain tile, granite, marble, masonry,brick

Color

Blue

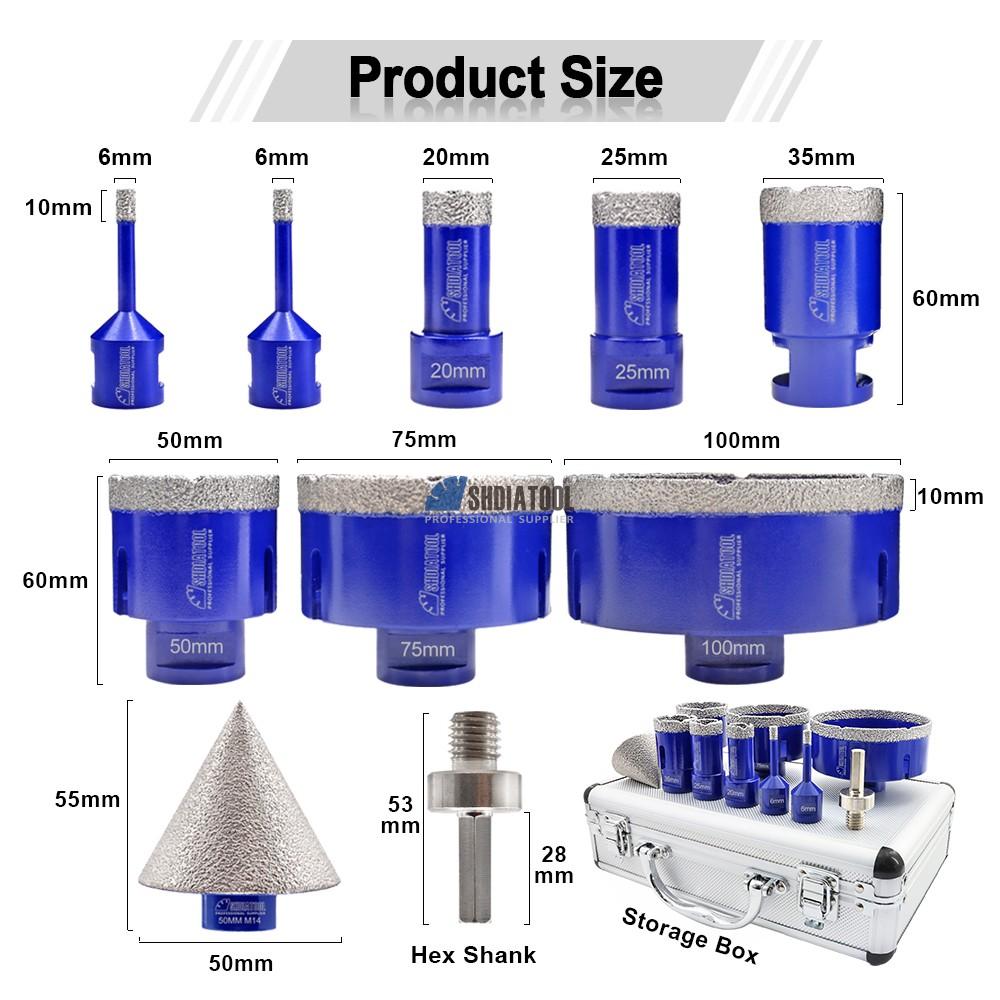

Specification

Drill Bit: Diameter 6mm, 6mm, 20mm, 25mm, 35mm, 50mm, 75mm, 100mm;
Total length: 60mm,Diamond height 10MM;
Chamfer Bit: Diameter 50mm, Working length 46mm, Total length 55mm, Grit #80
Adapter: M14 male thread to hexagon shank adapter , total lengt 53MM, shank length 28MM
Box Size: 22x15x8.5CM

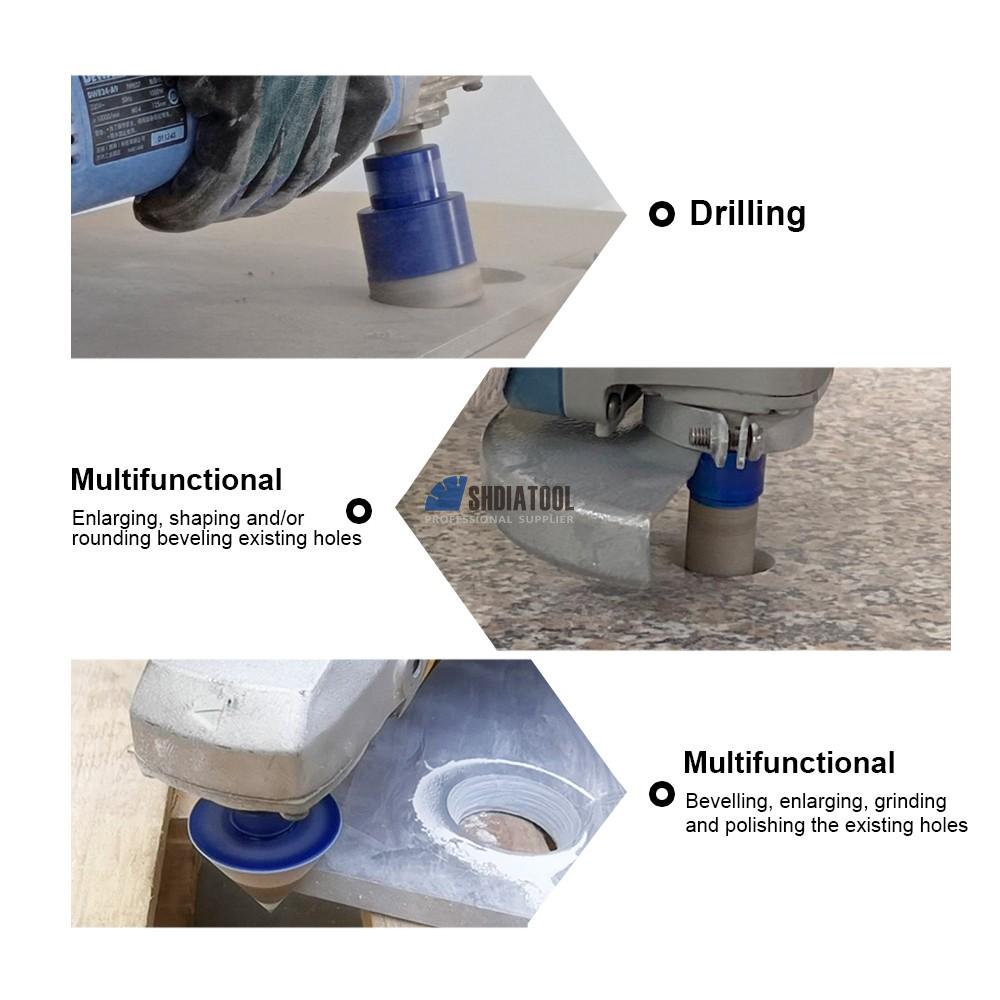

Application

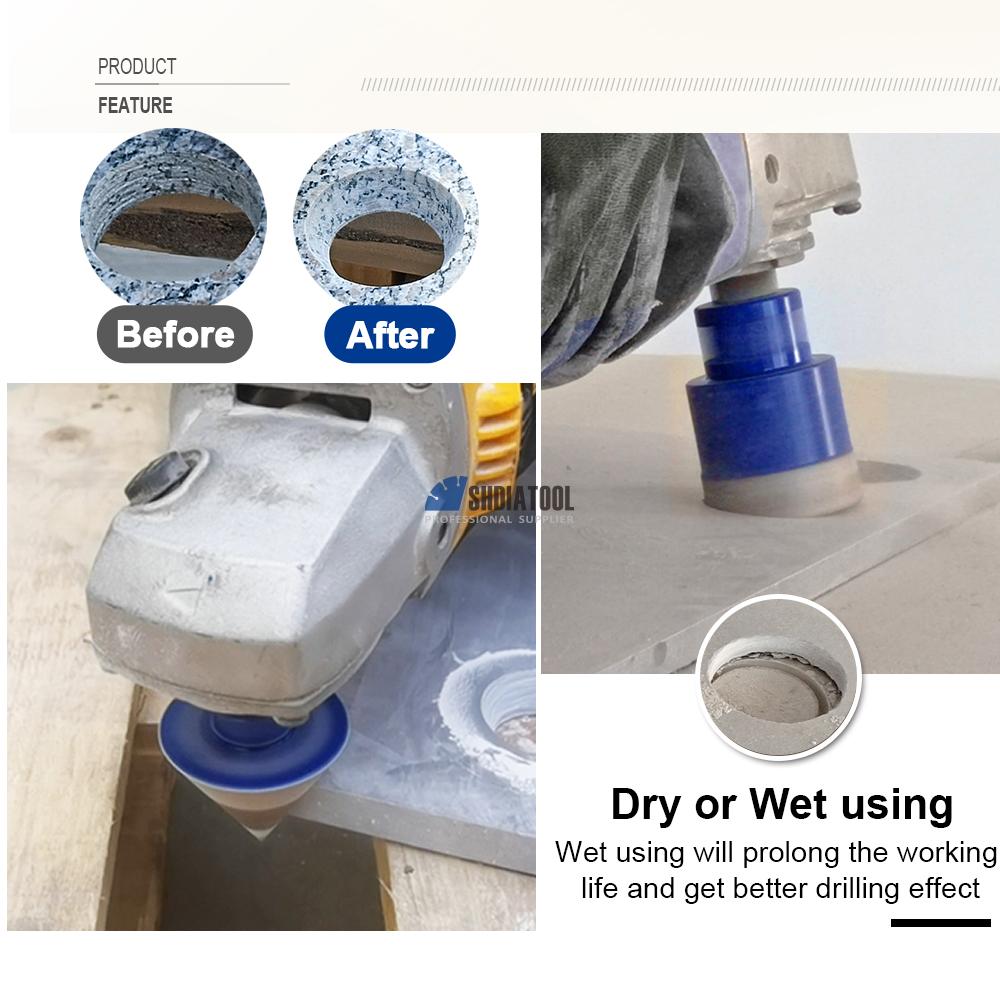

1. Drill Bit: Dry/wet drilling for porcelain tile, granite, marble, ceramic;
2. Chamfer Bit: For chamfering, widening, grinding and polishing exit holes.
3. Adapter: M14 thread core bits can be fitted on hand drill or electric drill with hexagon shank adapter

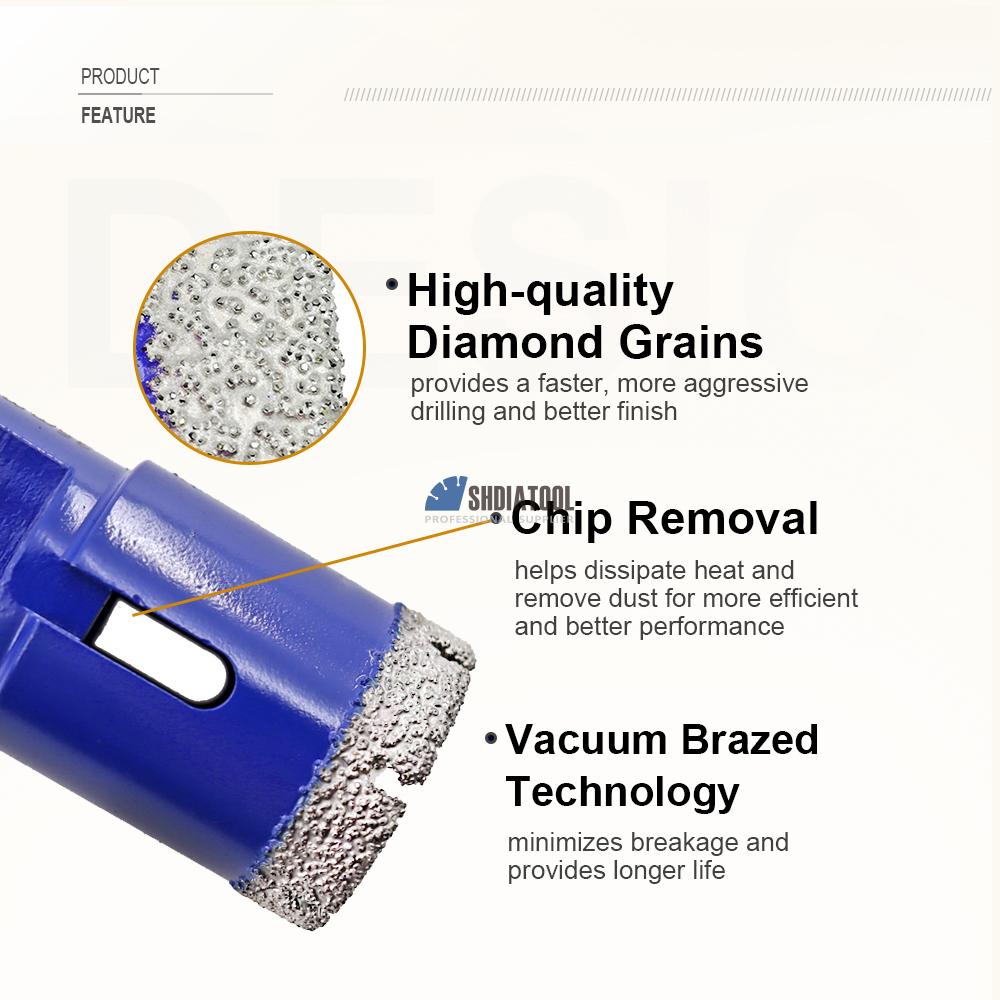

Feature

1. Vacuum brazed technology provide high efficient working performance
2. Fast and Smooth drilling
3. Long lifetime
4. Less Chipping
5. Minimizing any breakage
