Vacuum Brazed M14 Diamond Core Drill Bit Chamfer Beveling Chamfer Bit Set Granite Hole Saw Kit for Marble Angle Grinder
  1. Vacuum Brazed M14 Diamond Core Drill Bit Chamfer Beveling Chamfer Bit Set Granite Hole Saw Kit for Marble Angle Grinder
  2. Vacuum Brazed M14 Diamond Core Drill Bit Chamfer Beveling Chamfer Bit Set Granite Hole Saw Kit for Marble Angle Grinder
  3. Vacuum Brazed M14 Diamond Core Drill Bit Chamfer Beveling Chamfer Bit Set Granite Hole Saw Kit for Marble Angle Grinder
  4. Vacuum Brazed M14 Diamond Core Drill Bit Chamfer Beveling Chamfer Bit Set Granite Hole Saw Kit for Marble Angle Grinder

Vacuum Brazed M14 Diamond Core Drill Bit Chamfer Beveling Chamfer Bit Set Granite Hole Saw Kit for Marble Angle Grinder

Product Item:A85326010K4T

Drill Bit Diamond Height:10mm

Chamfer working height:63.5mm

Bits Thread:M14 / 5/8''-11

Adapter:Hex Shank

Inquiry Whatsapp

Description

Specification

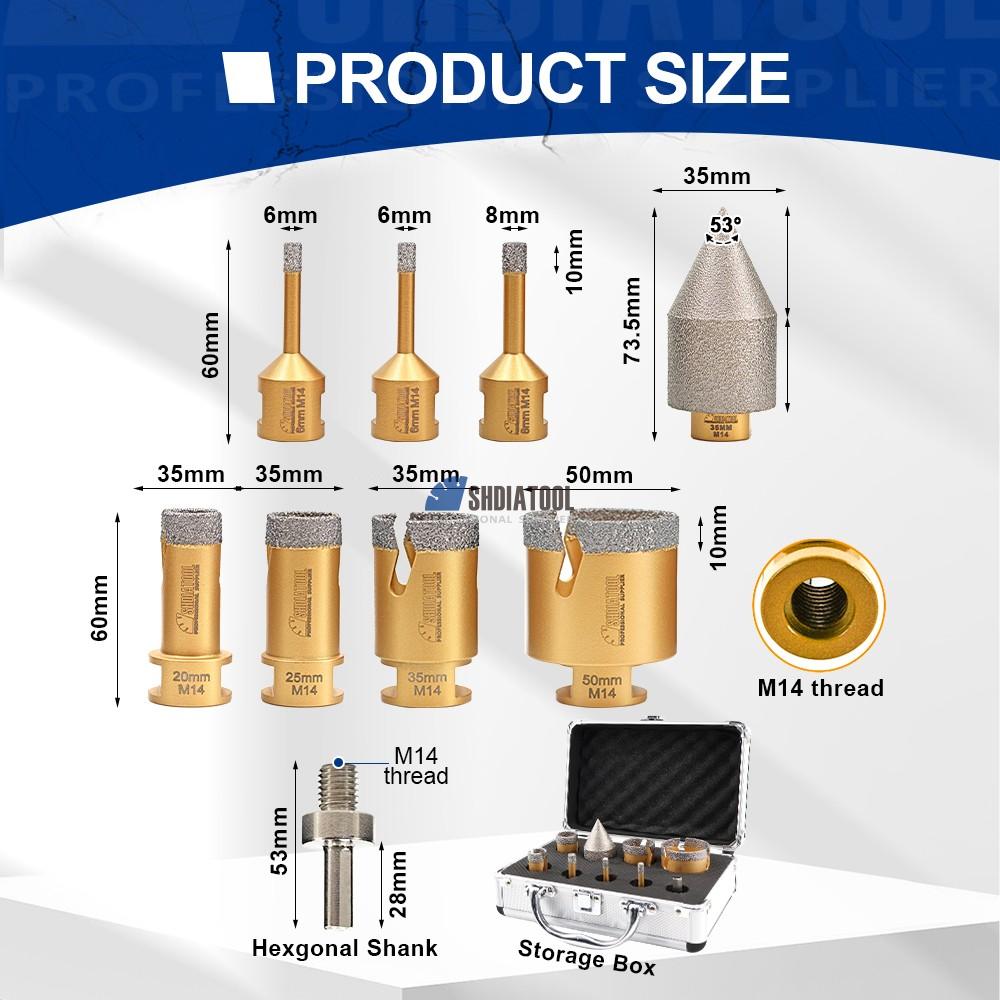

Diamond Drill Bit:
Diameter 6/6/8/20/25/35/50mm, Total length 60mm,
Connection: M14 Thread, Diamond height 10mm;
Chamfer Beveling bit:
Diameter 35mm, Working length 63.5mm Total length 73.5mm
Adapter:
M14 Male Thread to Hexagon Shank, total length 53mm, shank length 28mm
Box Size: 22x15x9.5CM

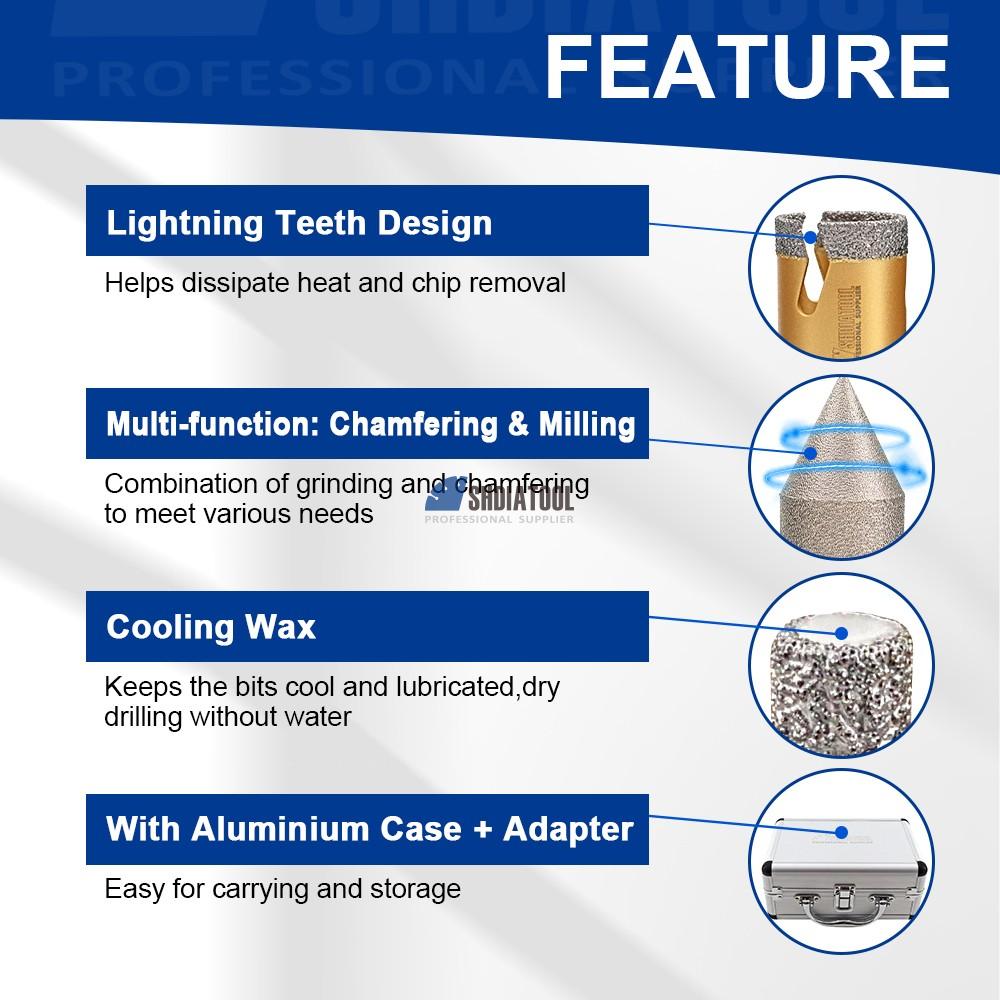

Feature

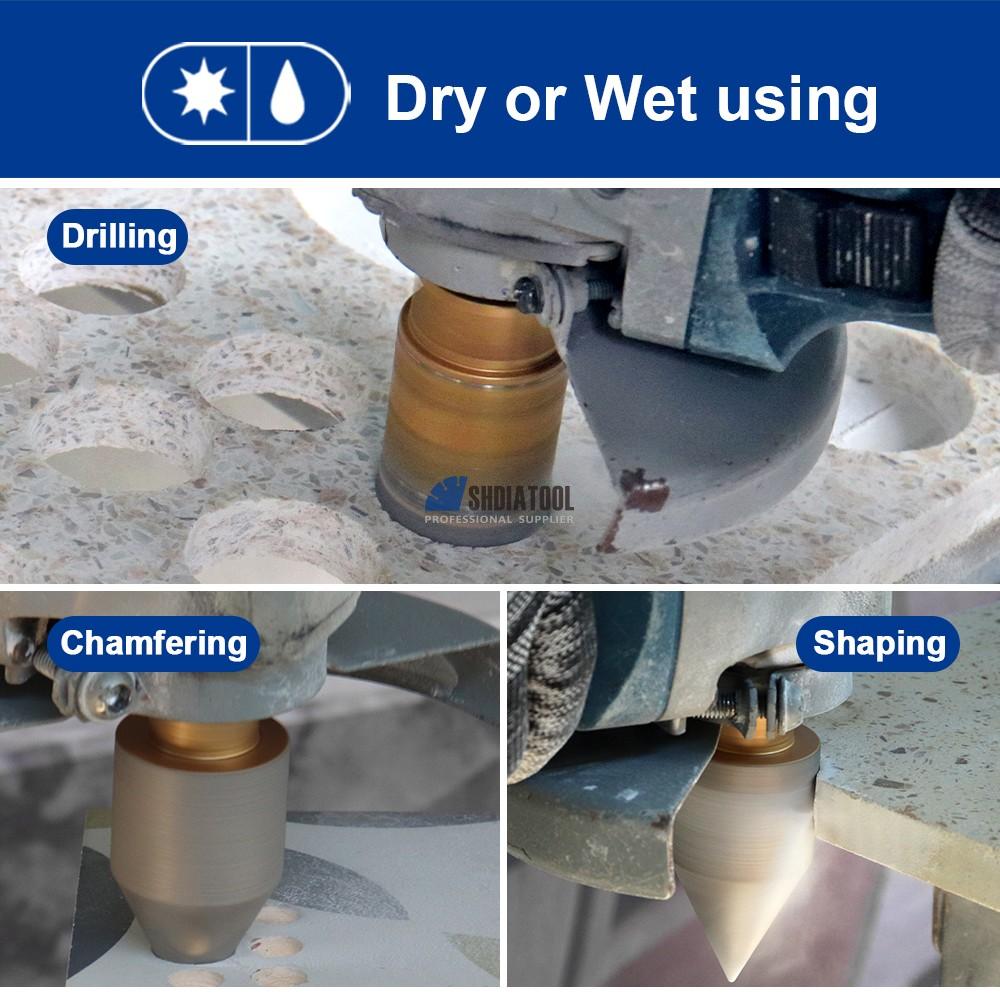

1.Drilling, grinding and chamfering are available to meet a variety of work requirements and increase efficiency.
2.This hole saw drill bit set adopts M14 thread, suits for angle grinder. The design of lightning tooth chip grooves provides longer working life, fast and smooth drilling.
3.Vacuum brazing technology,better durability and higher heat resistance.

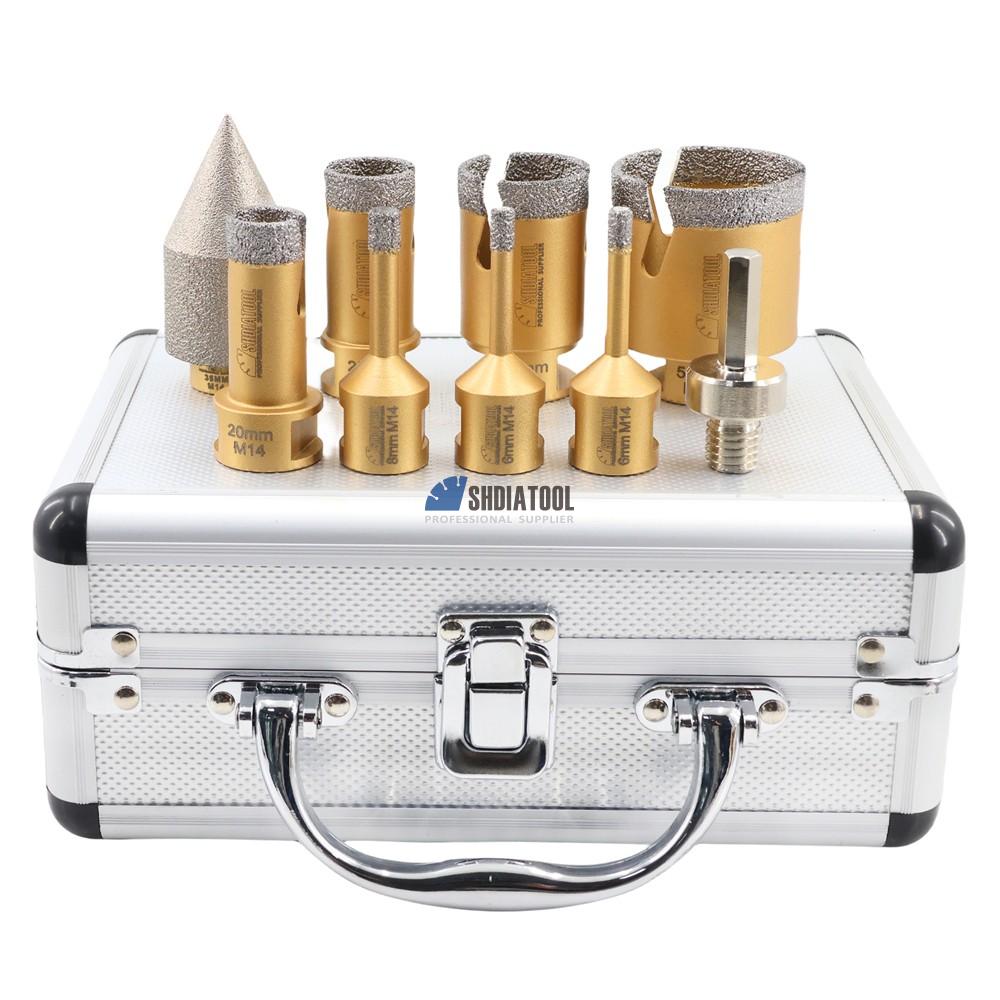

4.Come with an Aluminium Box, easy to carry and more economical.
Application

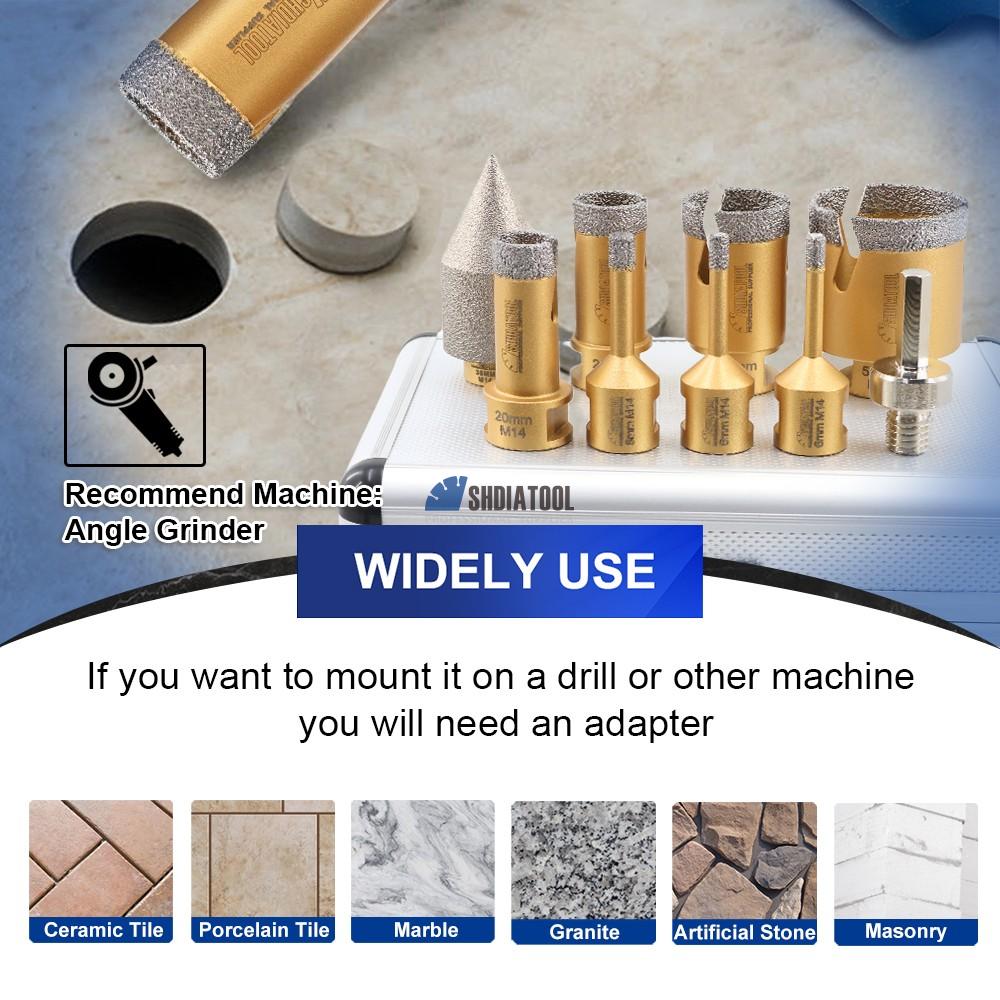

Drilling for Ceramic Tile,Porcelain Tile,Marble,Granite,Quartz,Artificial Stone,etc.
