Home Products Diamond Core Drill Bits Vacuum Brazed Diamond Hole Saw Kit 5PCS/

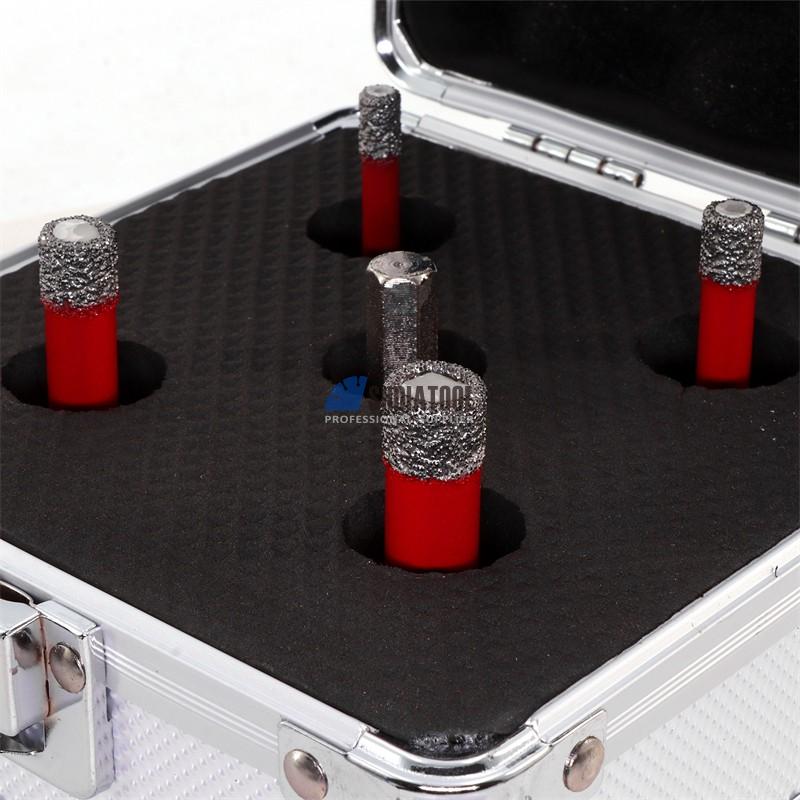

Vacuum Brazed Diamond Hole Saw Kit 5PCS/Set 6+8+10+12mm+HEX Tile Tool Diamond Core Drill Bit Set For Marble Granite
  1. Vacuum Brazed Diamond Hole Saw Kit 5PCS/Set 6+8+10+12mm+HEX Tile Tool Diamond Core Drill Bit Set For Marble Granite
  2. Vacuum Brazed Diamond Hole Saw Kit 5PCS/Set 6+8+10+12mm+HEX Tile Tool Diamond Core Drill Bit Set For Marble Granite
  3. Vacuum Brazed Diamond Hole Saw Kit 5PCS/Set 6+8+10+12mm+HEX Tile Tool Diamond Core Drill Bit Set For Marble Granite
  4. Vacuum Brazed Diamond Hole Saw Kit 5PCS/Set 6+8+10+12mm+HEX Tile Tool Diamond Core Drill Bit Set For Marble Granite

Vacuum Brazed Diamond Hole Saw Kit 5PCS/Set 6+8+10+12mm+HEX Tile Tool Diamond Core Drill Bit Set For Marble Granite

Product Item:A85310M14K1T

Diameter:6+8+10+12mm+HEX Adapter

Diamond height:10mm

Connection: M14 Thread

Box size:13x13x8.5CM

Inquiry Whatsapp

Description

Type
Diamond Core Drill Bit Set
Use
Porcelain tile, Granite, Marble, Ceramic tile,Stone

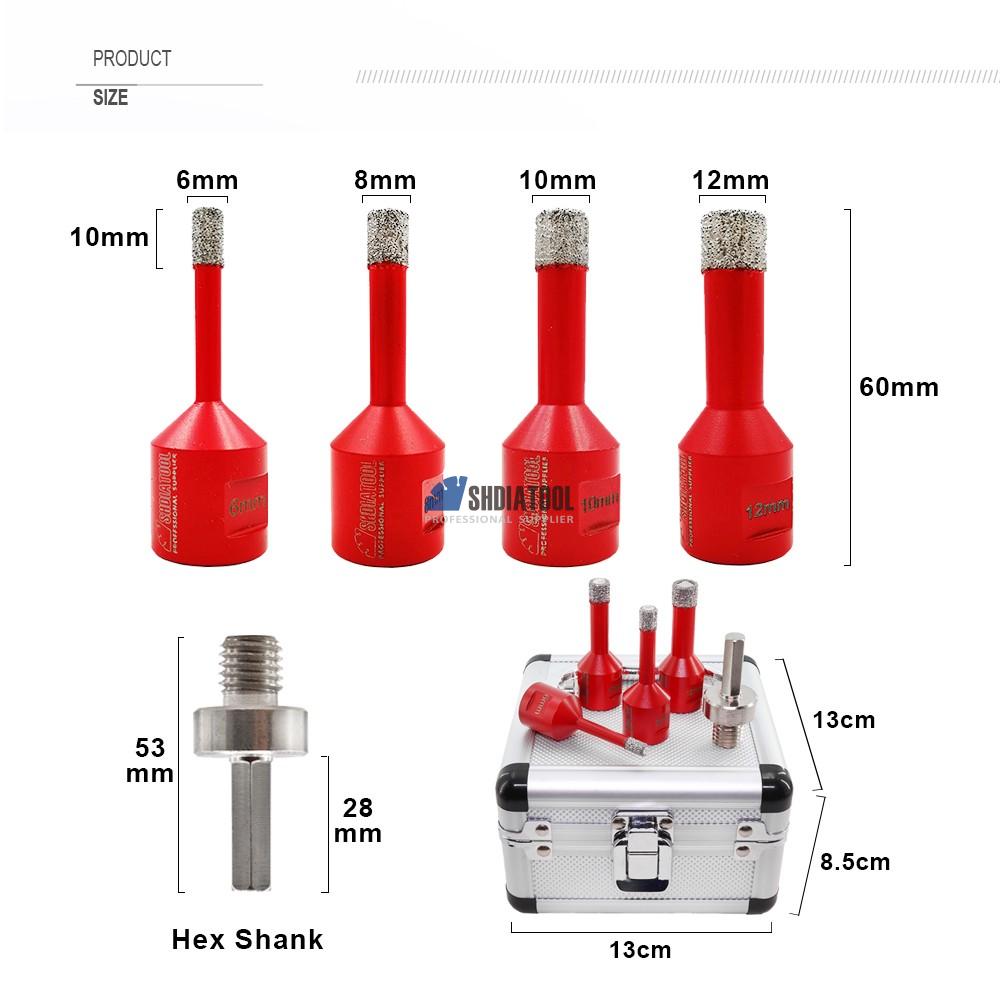

Specificiation
Red Color Drill Bit: Total length: 60mm, Connection: M14 Thread, Diamond height 10MM;
Adapter: M14 male thread, 3/8" Hexagon Shank, total length 55MM, shank length 28MM
Box size:13x13x8.5CM

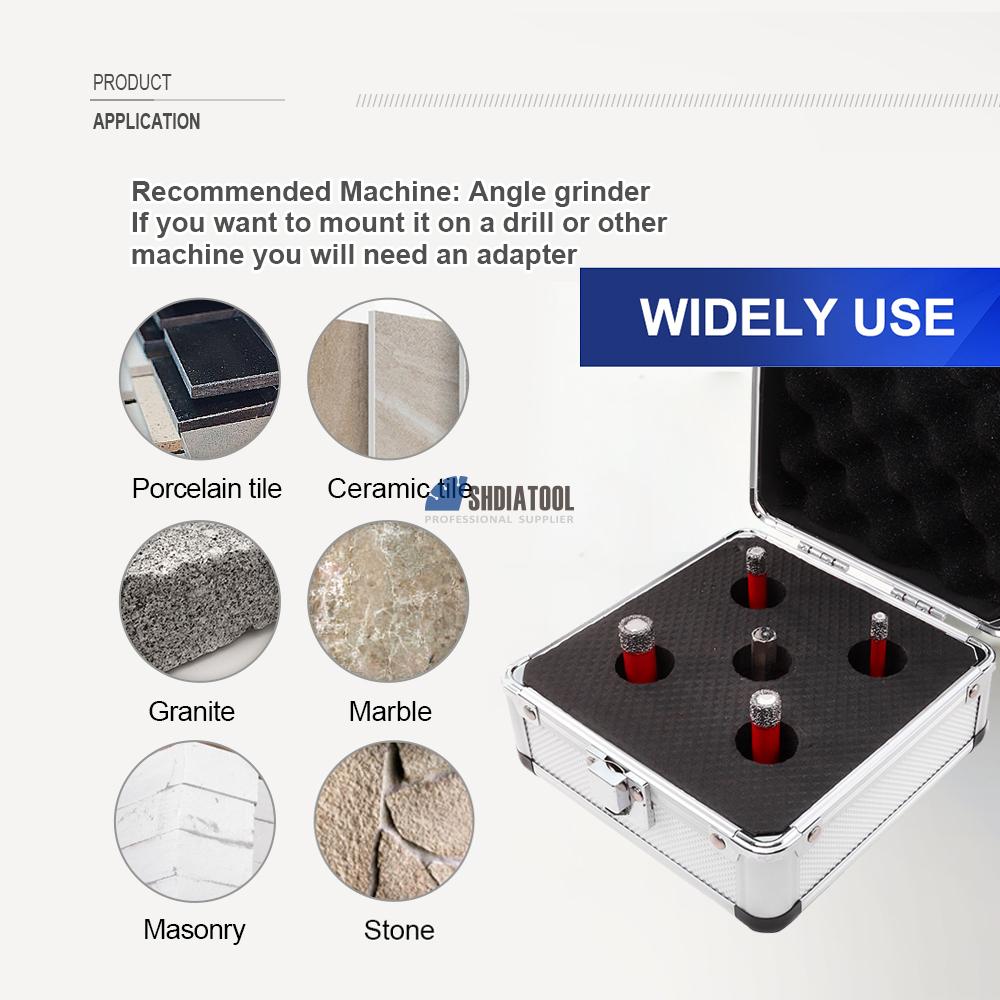

Application
1. Drill Bit: Dry/wet drilling for porcelain tile, granite, marble, ceramic;
2. Aapter: M14 thread core bits can be fitted on hand drill or electric drill.

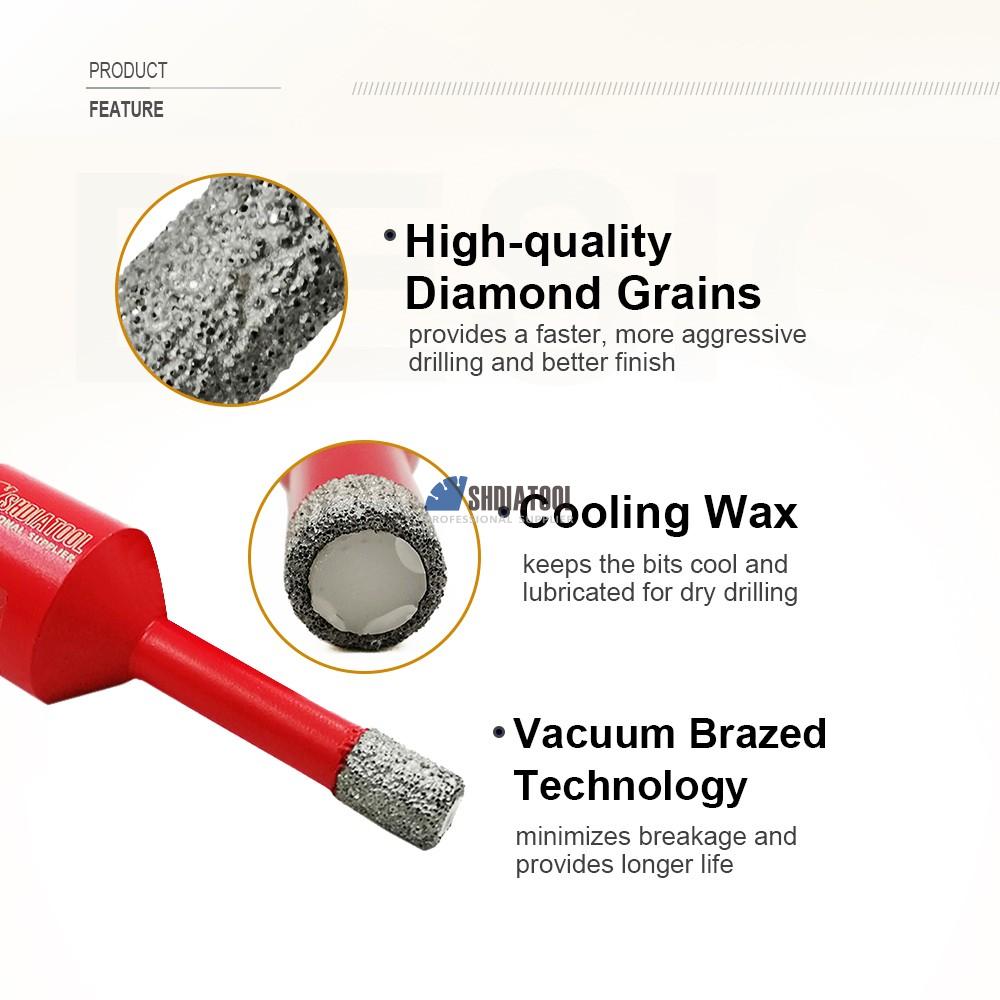

Feature
1.This hole saw drill bit set adopts M14 thread, suits for angle grinder. The design of U-shaped chip grooves provides longer working life, fast and smooth drilling.

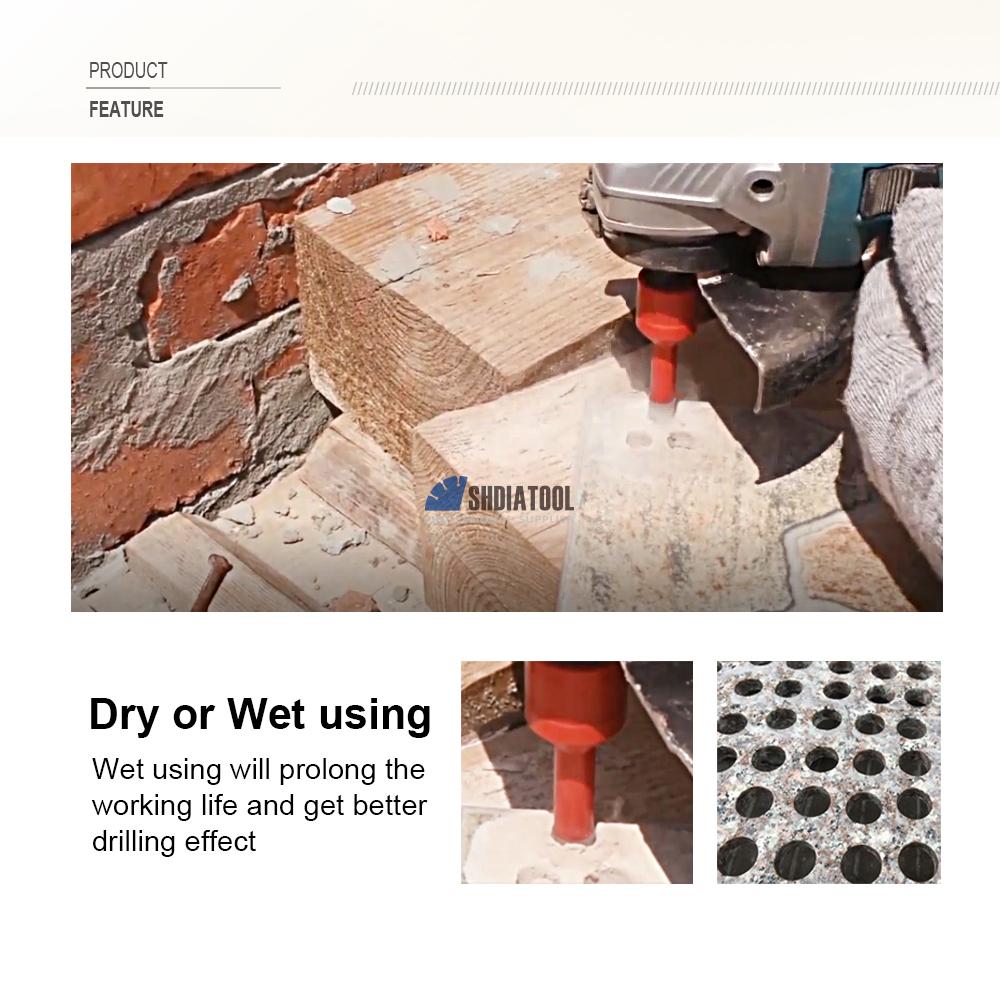

2. Dry/Wet Cutting.This hole saw bit can be cut arbitrarily in wet or dry to meet various user environments. A little water will make it smoother.

3.High performance vacuum barzed diamond core drill bit provide fast and smooth drilling;

4.Premium-grade diamond core drill bit for long lifetime,less chipping and minimizing any breakage; Vacuum brazed technology leads to less heat generation and can bear heavy duty working;
