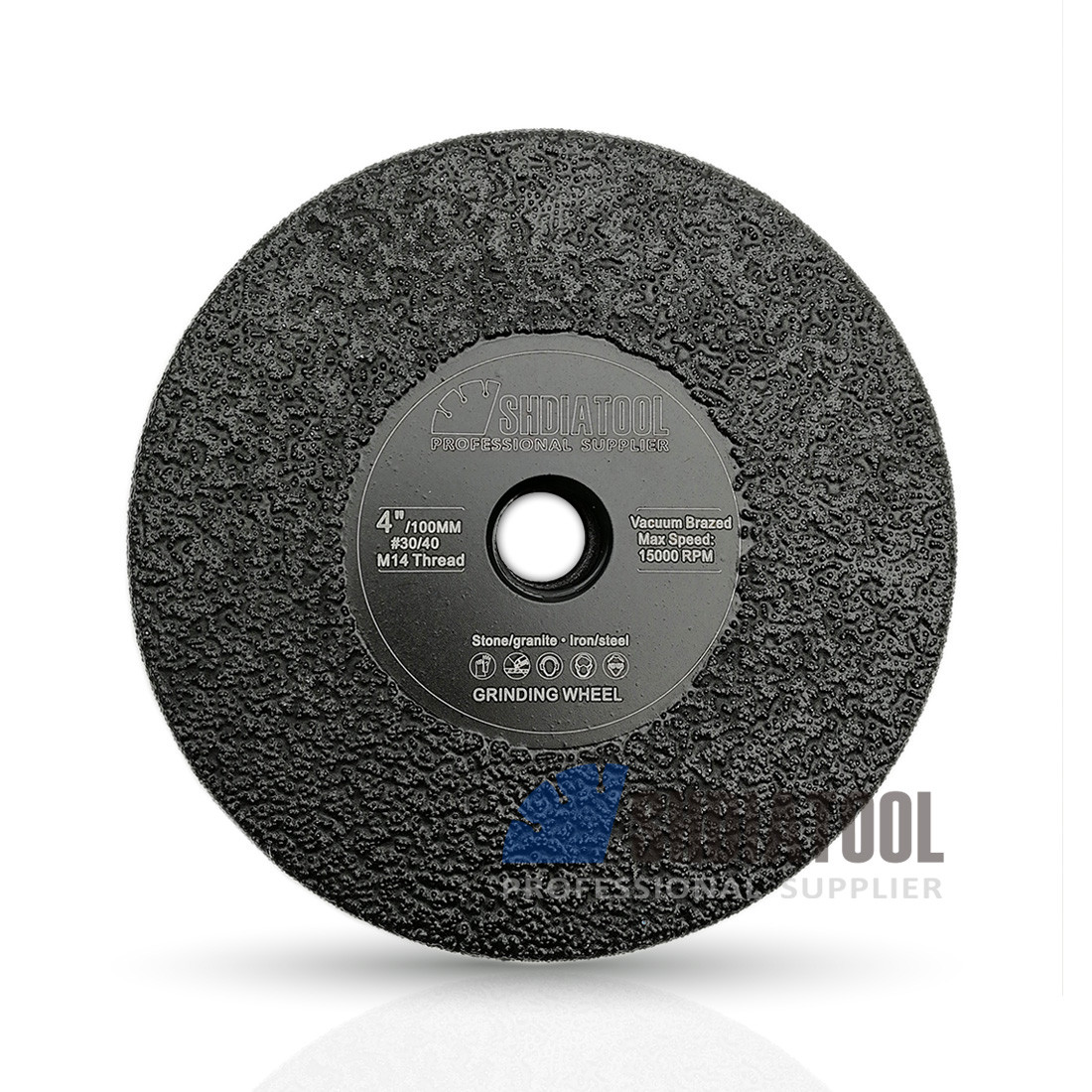

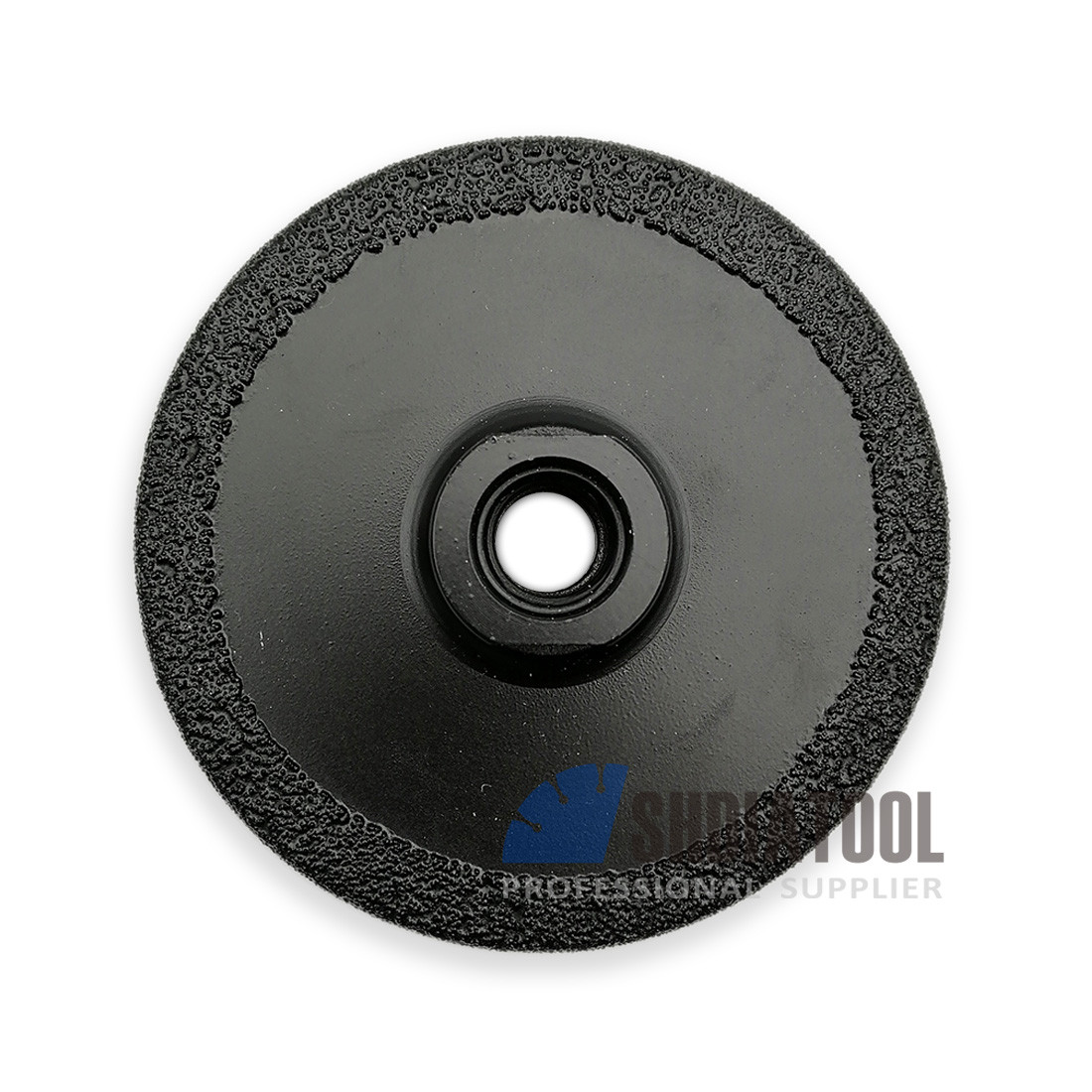

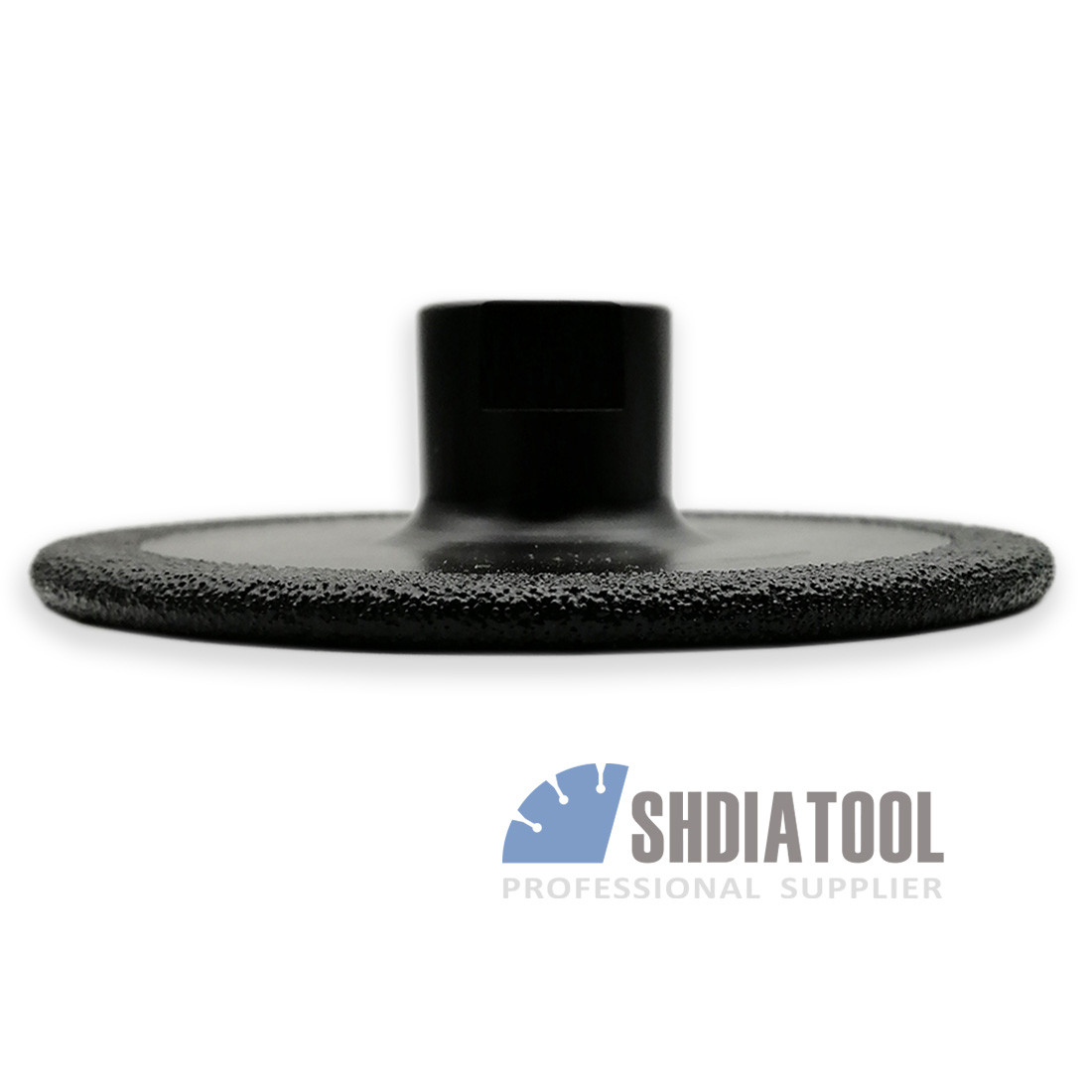

Vacuum Brazed Diamond Flat Grinding Wheel

Description

Specification:

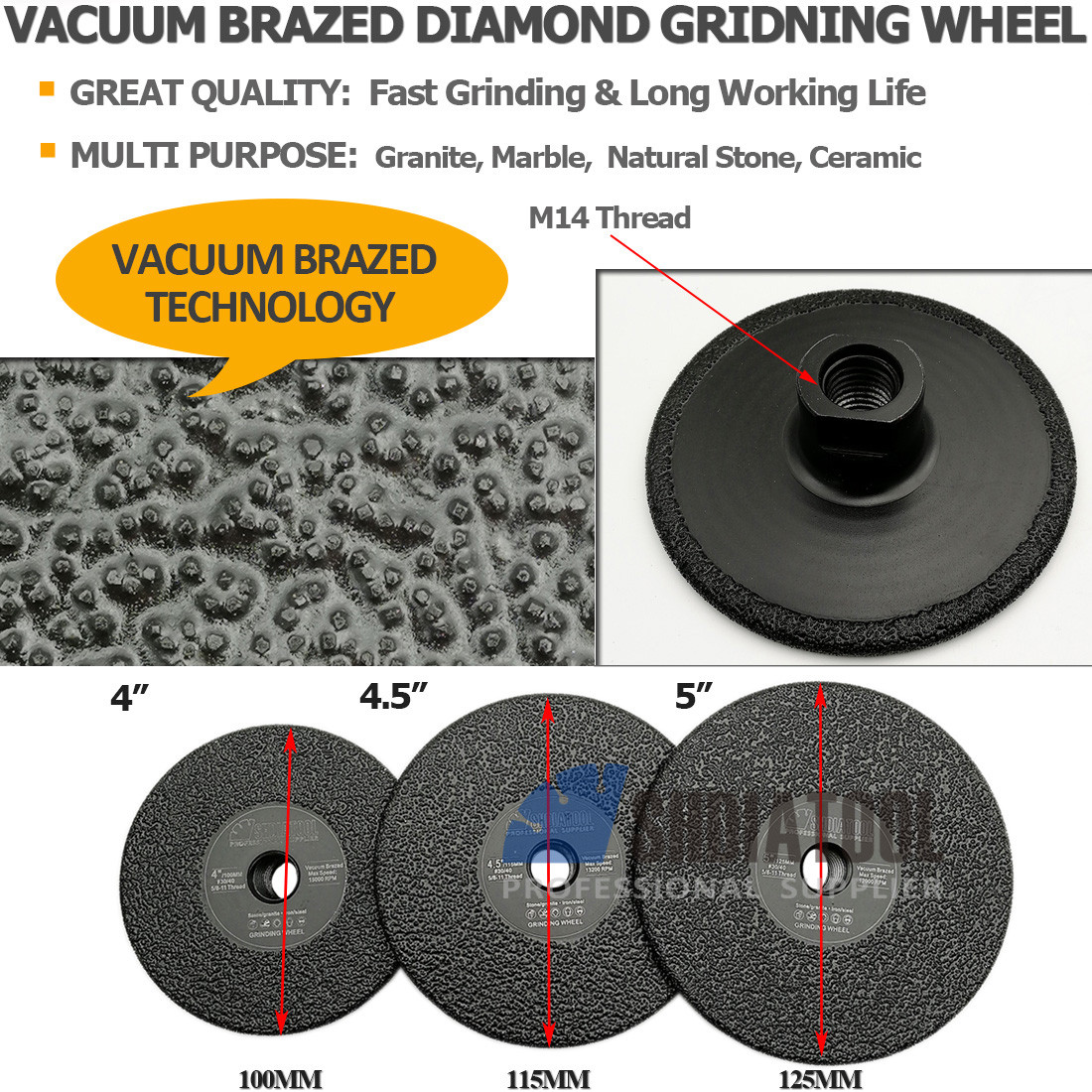

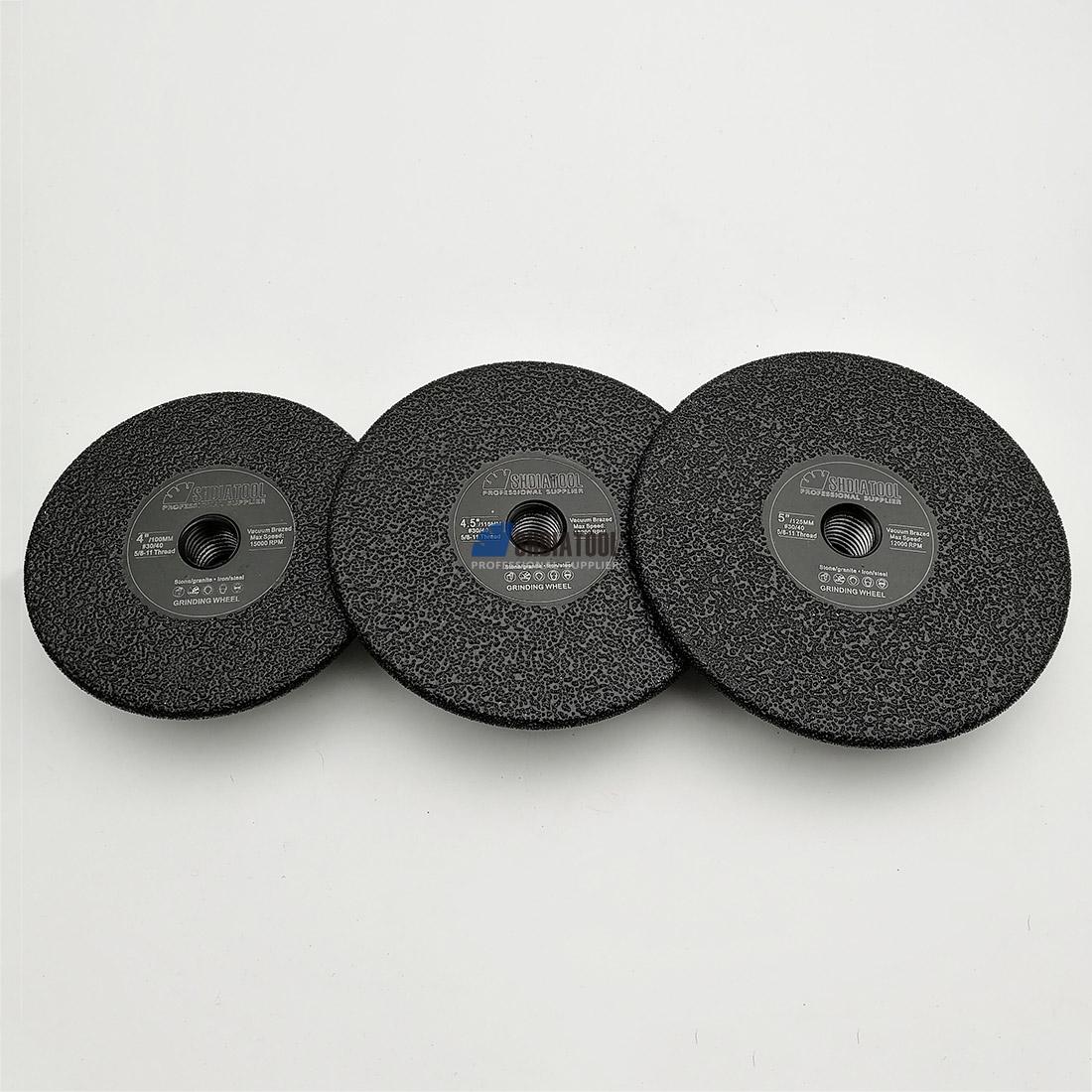

Diameter 4”/105MM; M14 or 5/8-11 Thread; Diamond height: 27mm; thickness: 6.1mm, grit: #30/40;

Diameter 4.5"/115mm; M14 or 5/8-11 Thread; Diamond height: 32mm; thickness: 6.2mm, grit: #30/40;

Diameter 5"/125mm; M14 or 5/8-11 Thread; Diamond height: 37mm; thickness: 6.2mm, grit: #30/40;

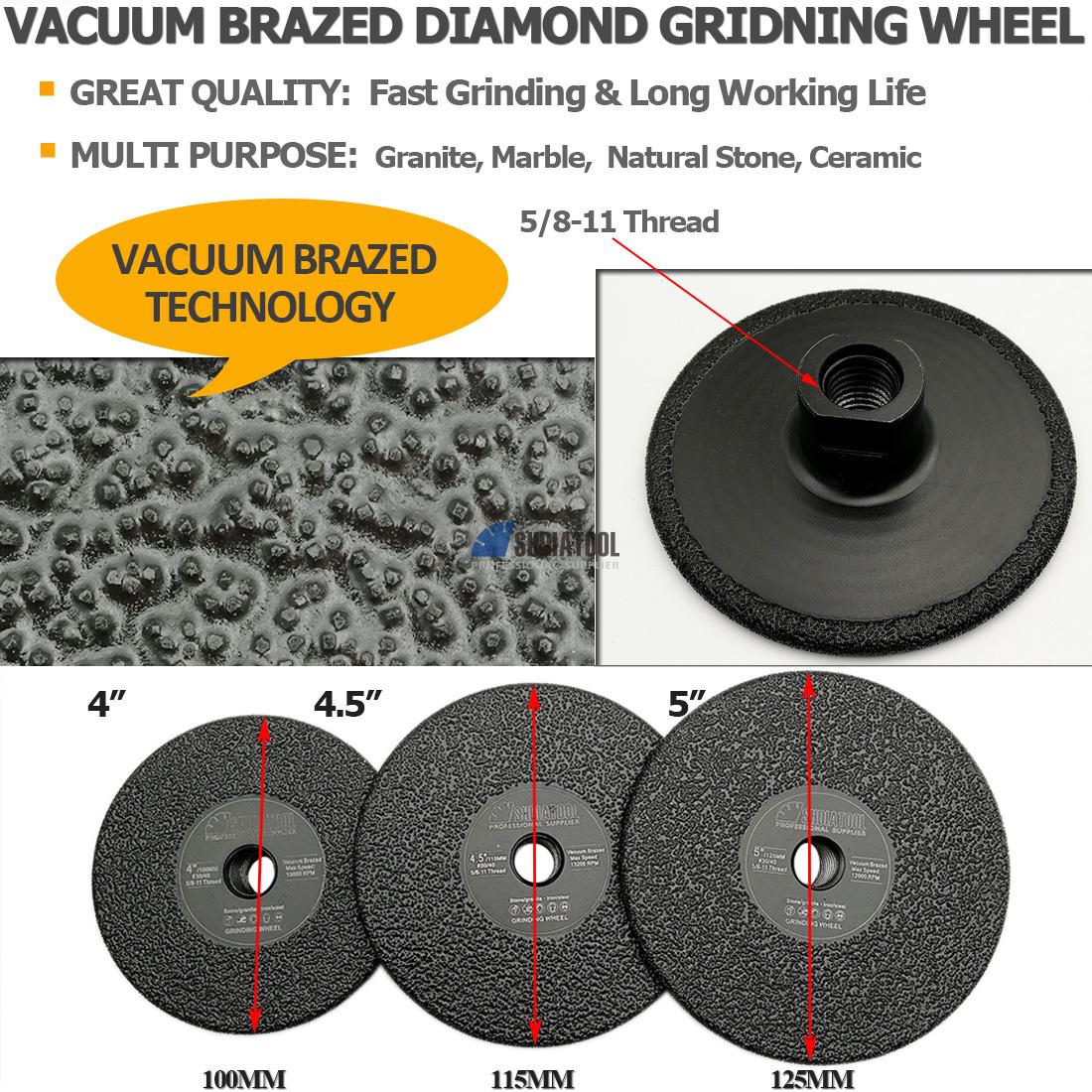

(NOTE: 5/8-11 Thread, it's usually suitable for North America Market, please attention!)

Application:

For grinding shaping or Beveling granite & marble concrete artifical stone masonry ceramic.

Also available for cutting or grooving.

Feature:

1. Can be used wet or dry.

2. #30/40 Coarse and high quality diamond grain provide fast grinding speed.

3. Provide fast stock removal with little or no operator fatigue.

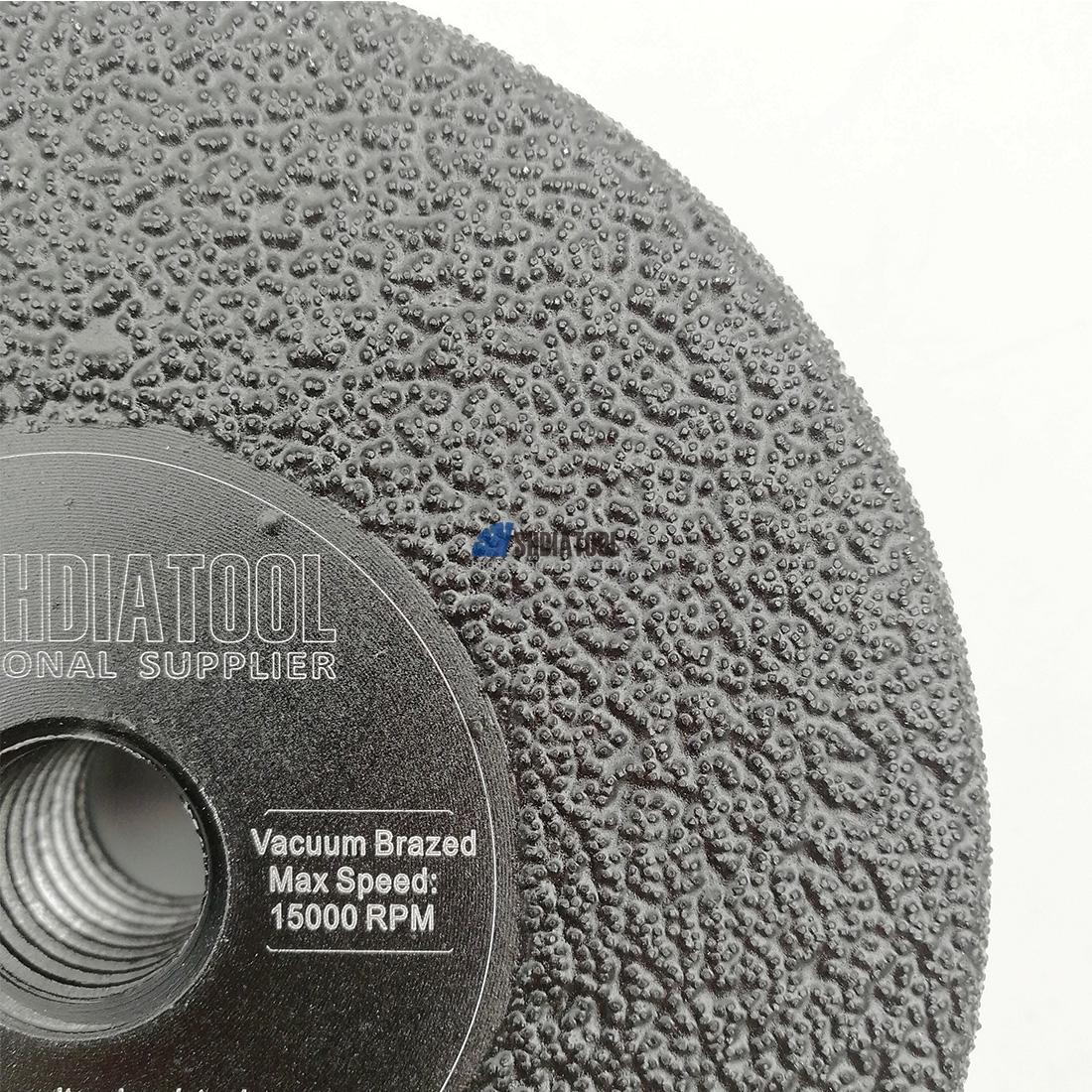

4. Vacuum brazed technology extend the working life.

5. Machine & operating: Grinder or wet polishers or some other grinding power tool.

4000RPM is recommended.
