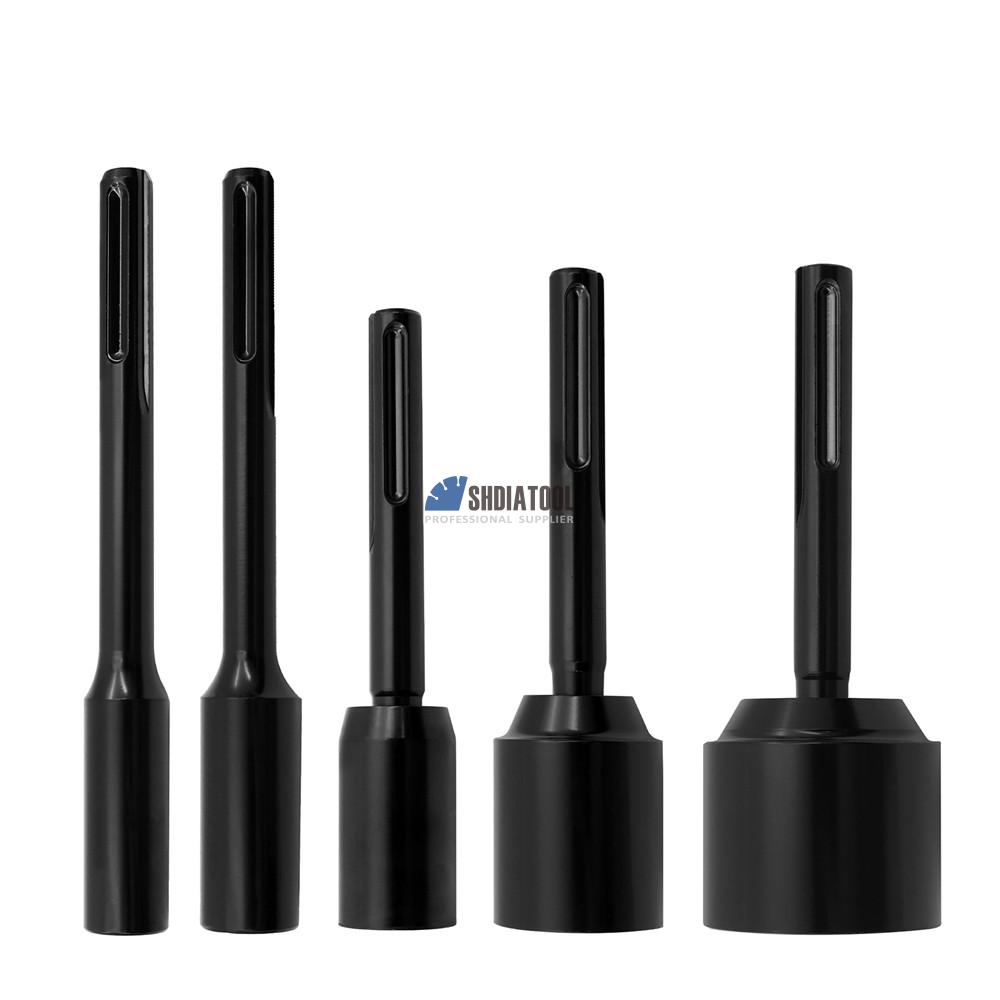

SDS Max Ground Rod Driver Hardened Steel Earth Stake Grounding Rod for 5/8Inch 3/4Inch Ground Rods on Rotary Hammer Drill

Brand

SHDIATOOL

Shank Type

SDS MAX Shank

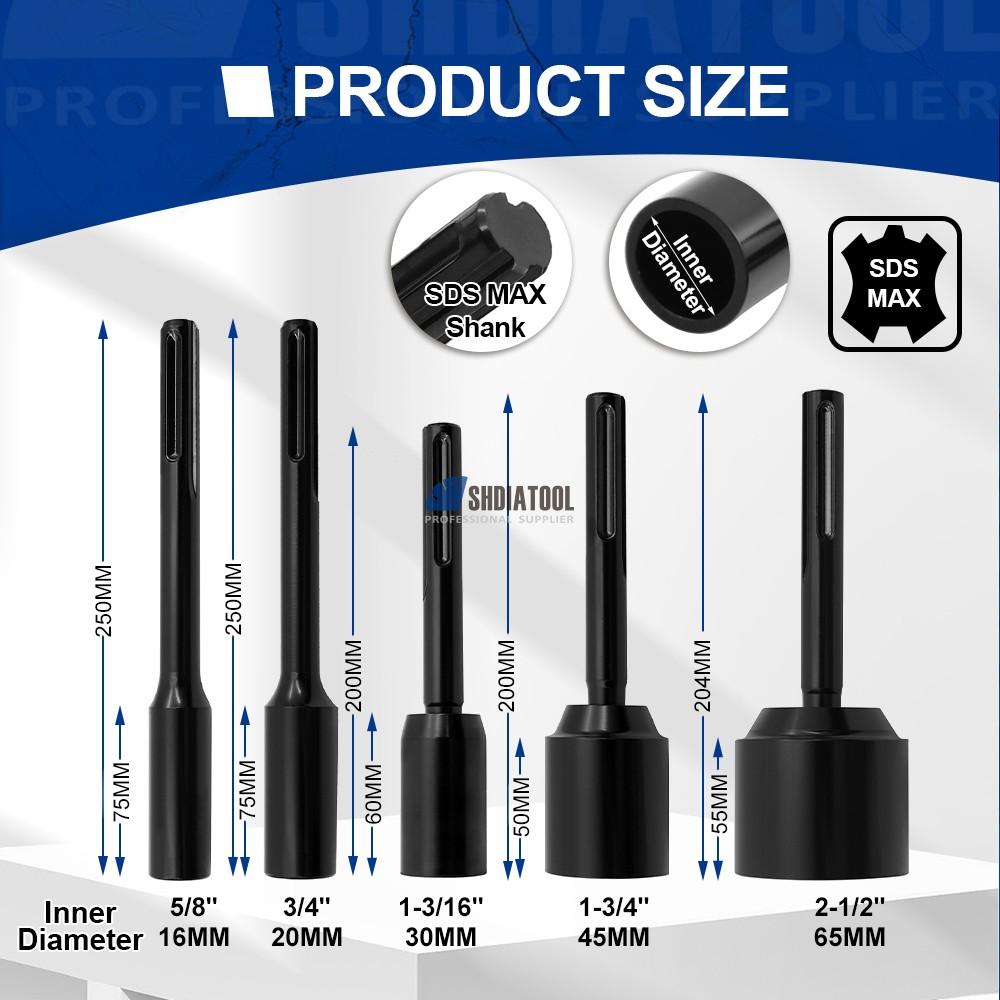

Specification

All-in-one Type

5/8inch: Inside diameter:16mm  Outside diameter:28mm

Workable depth:50mm  Total length:250mm  Head length:75mm

3/4inch: Inside diameter:20mm  Outside diameter:32mm

Workable depth:50mm  Total length:250mm  Head length:75mm

Split Type

1-3/16": Inside diameter:30mm  Outside diameter:38mm

Workable depth:50mm  Total length:200mm  Head length:60mm

1-3/4": Inside diameter:45mm  Outside diameter:53mm

Workable depth:50mm  Total length:200mm  Head length:55mm

2-1/2": Inside diameter:65mm  Outside diameter:73mm

Workable depth:50mm  Total length:204mm  Head length:55mm

Application

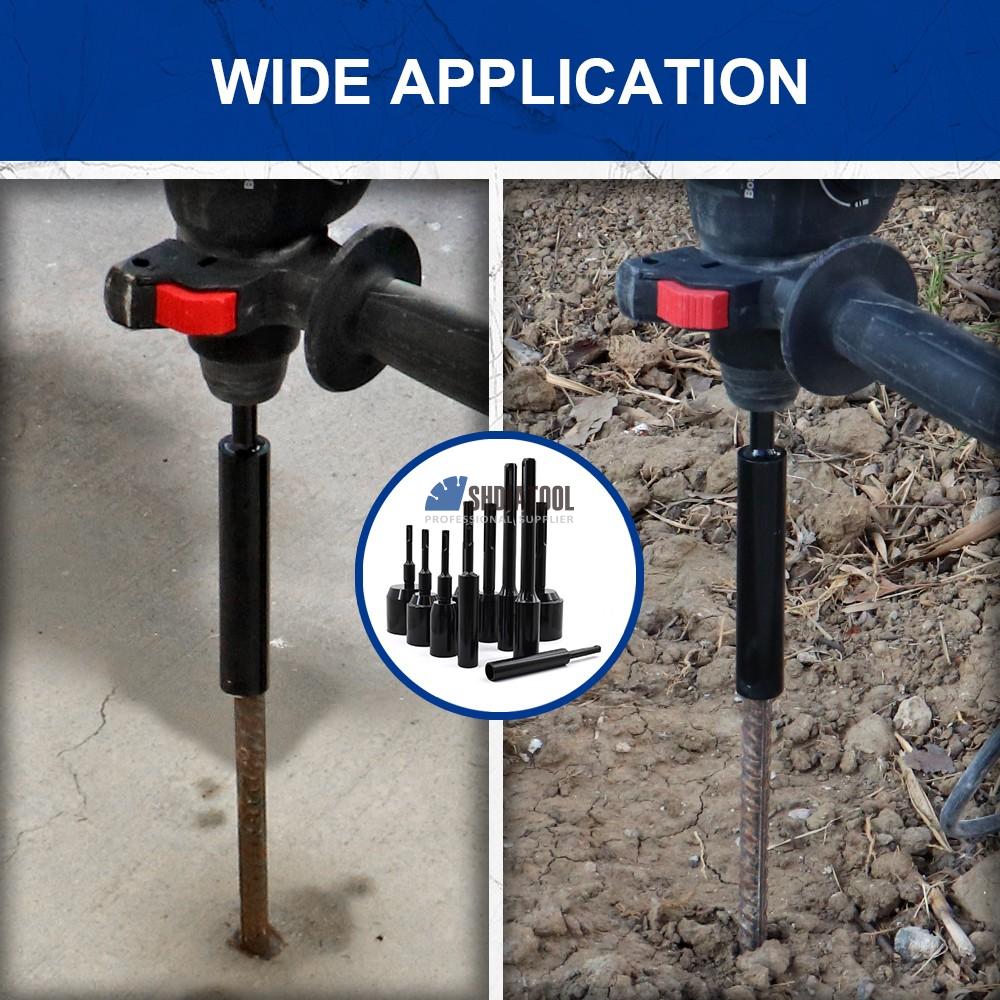

Drive grounding rod installation, easily complete the task of installing parking bumper stakes, electric fence posts or steel bars.

Feature

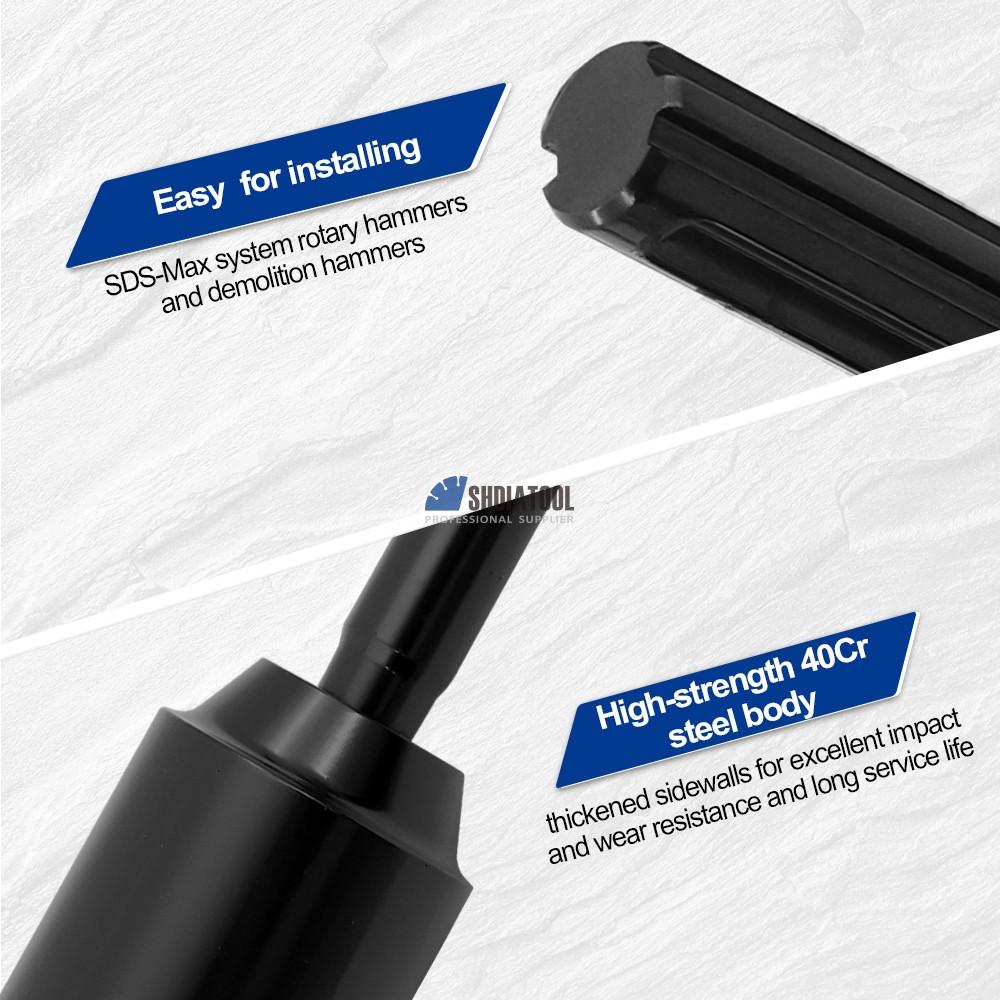

1.Industrial grade professional grounding driver bar, choose high quality and high strength 40Cr steel body and thickened side wall, one-piece design and split design with heat treatment process, excellent impact and abrasion resistance, long service life.
2. The taper at the bottom of the one-piece driver throat is in contact with the top of the grounding rod. It helps minimize the creation of mushrooming of the rod compared to a flat-bottomed driver and helps maintain the integrity of the grounding rod.

3.You no longer need to use a sledgehammer to install grounding rods, small fence posts, small electric fence posts, etc. Reduces the risk of finger injuries from sledgehammers.

4.The product is packaged in a convenient clear plastic tube that is durable and easy to store and carry.

Applicable Machines

Standard SDS-MAX shank（18mm Diameter）is compatible with Bosch, Dewalt, Milwaukee, Hilti and all other brand SDS-Max system rotary hammers and demolition hammers
