Porous Brazed Turbo Diamond Saw Blade Rock Slab Cutting Disc for Angle Grinder Cutting Grinding Tile Granite Marble Ceramic

Product Name

Rock Slab Vacuum Brazed Saw Blade

Brand

SHDIATOOL or OEM

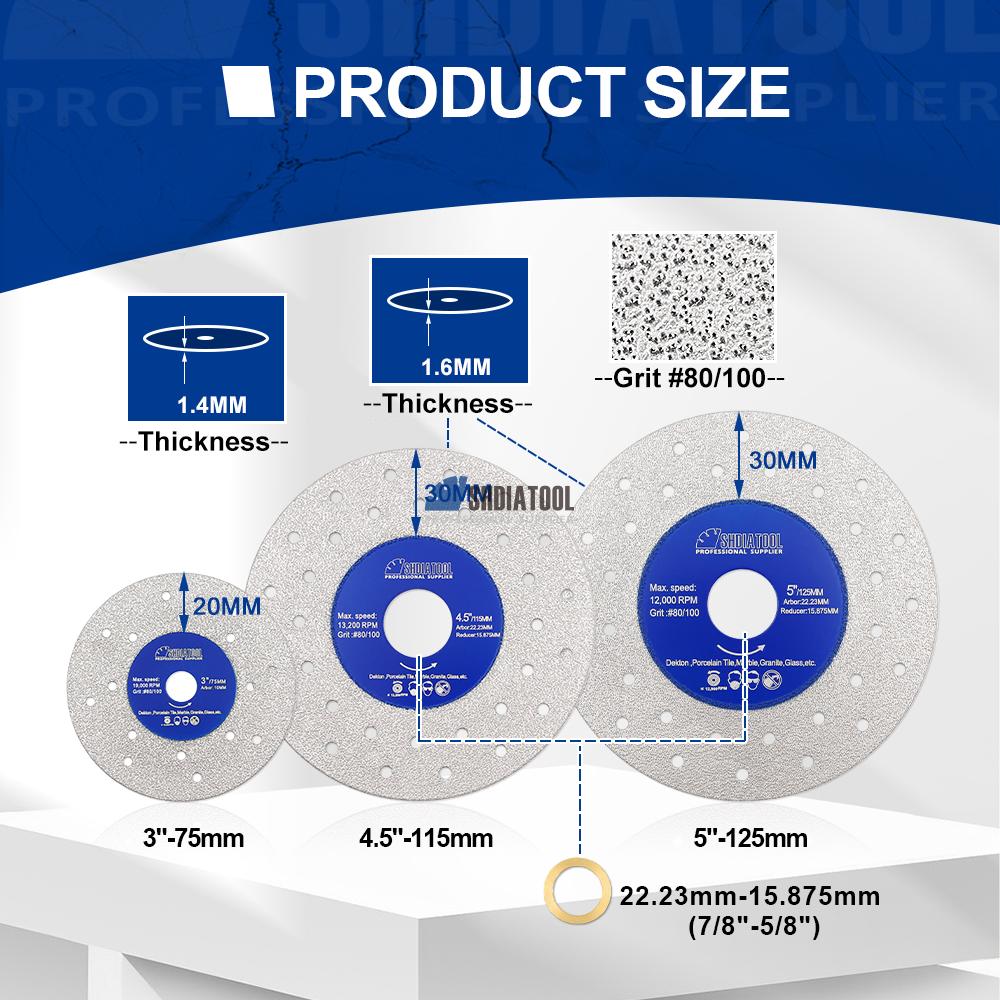

Specification

1.Diameter: 3"/75mm
Diamond height 20mm, Segment thickness: 1.4mm; Diamond Grit: #80/100
Bore: 10mm,

2. Diameter: 4.5"/115mm
Diamond height: 30mm, Segment thickness: 1.6mm; Diamond Grit: #60/70
Bore: 22.23mm,with washer 15.875mm,

3.Diameter: 5"/125mm
Diamond height: 30mm, Segment thickness: 1.6mm; Diamond Grit: #80/100
Bore: 22.23mm,with washer 15.875mm,

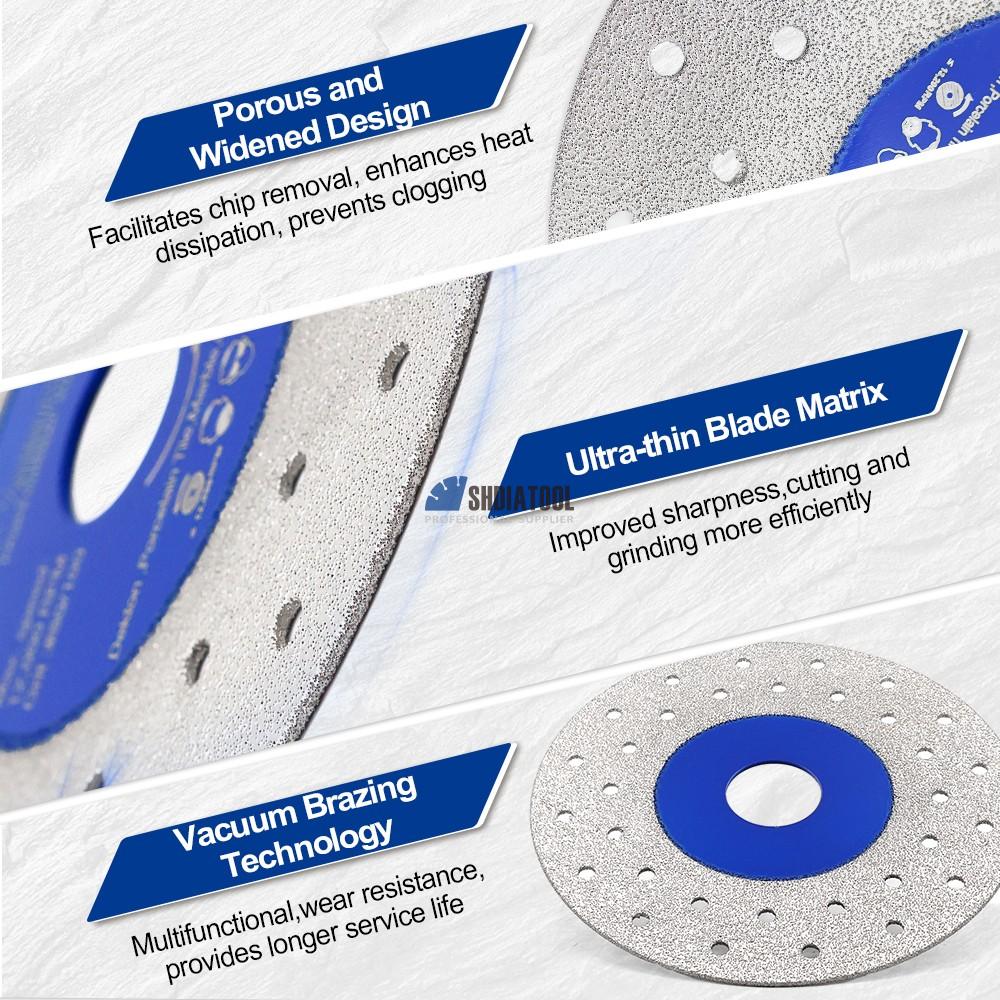

Feature

1.【Ultra-thin Base Design】Ultra-thin saw blade design, increase sharpness, more efficient;

2.【Materials of high quality】Preferred high-grade diamond raw materials, long life, good use, diamond closely arranged, high density, high hardness, cut and grind faster;

3.【Presenting smooth finish effect】High cutting and grinding efficiency, smooth finish effect; 4.【Multi-hole widening design】Multi-hole widening design is conducive to chip removal and increase heat dissipation performance. Prevent clogging and extend the service life of the saw blade;

5.【Frontier Processing Technology】Adopting vacuum brazing technology, diamond bareness
is higher, sharper than electroplating process, higher processing efficiency, longer life;

Application

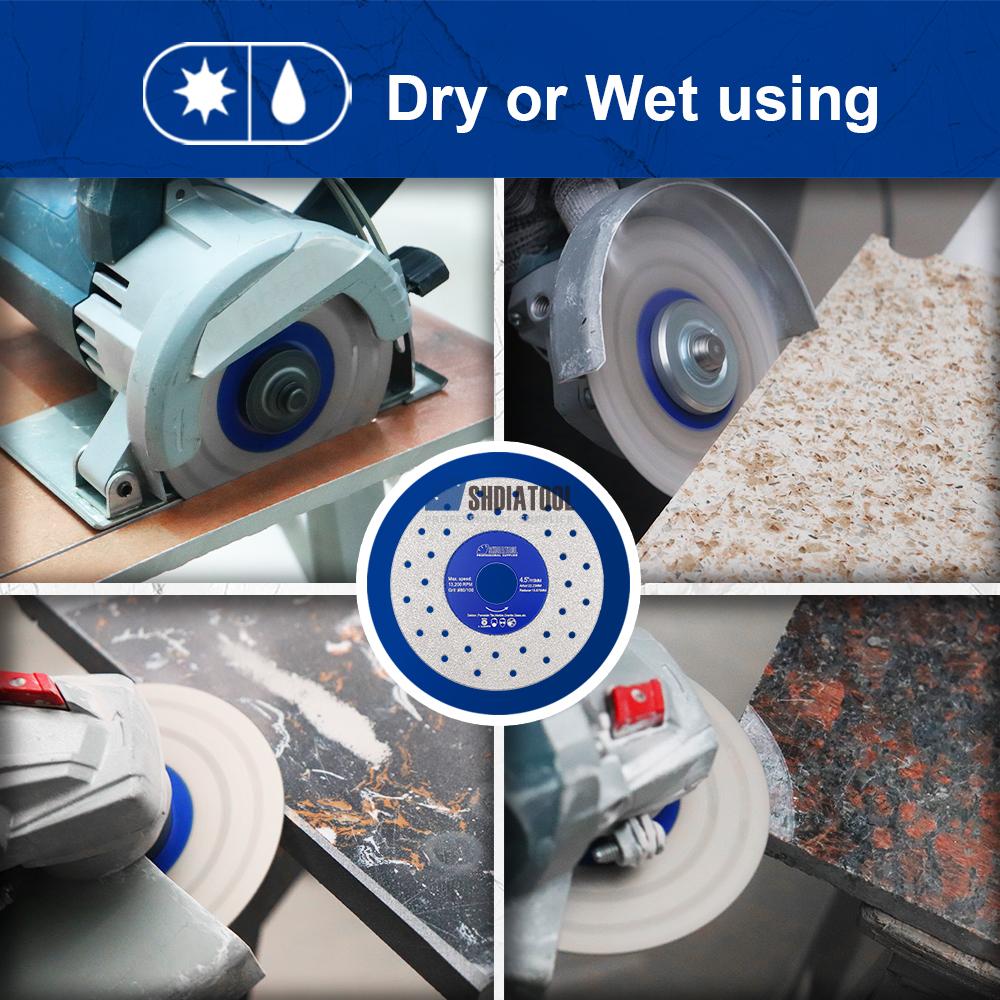

1.Use:wet and dry used

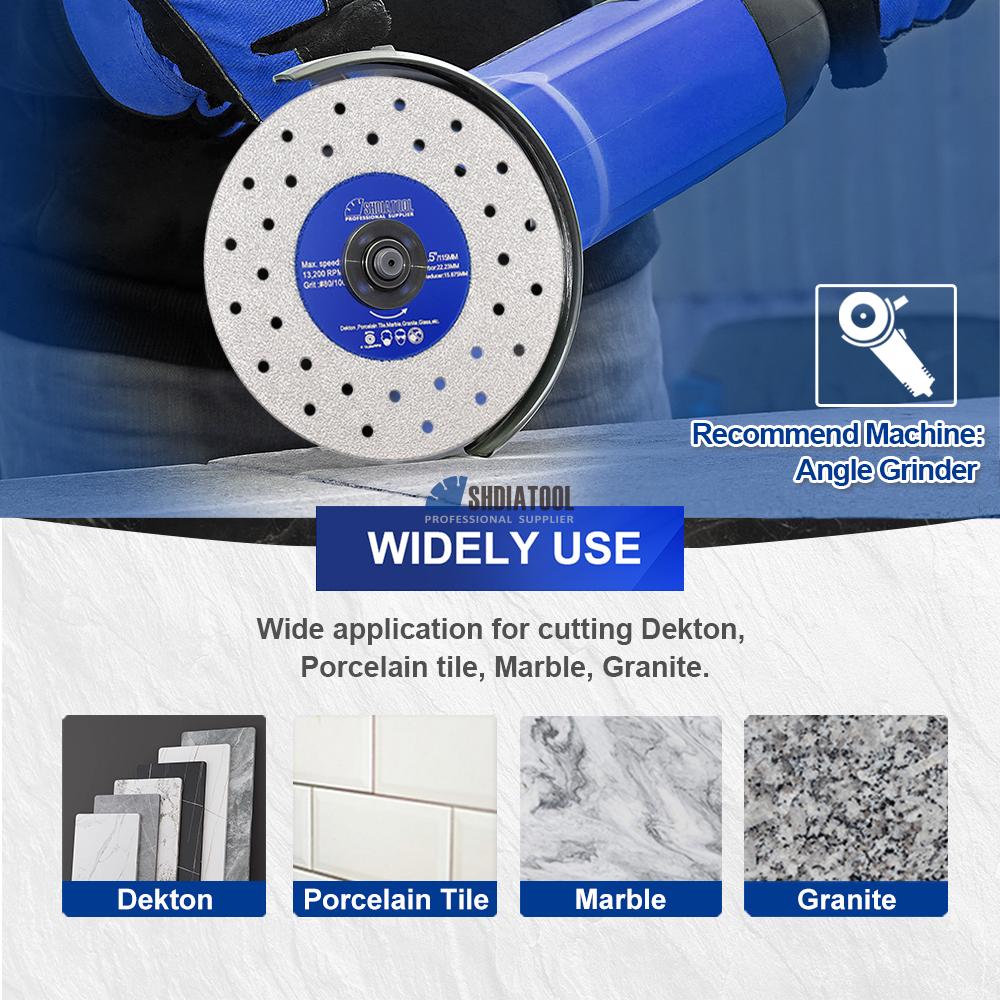

2.Can be used for dekton/rock slab, stone, tile, marble, granite, glass and other materials for quick cutting and grinding

3.Machine:3''for mini angle grinder (3''10MM bore); 4-5'' for: angle grinder/circular saw machine
