Home Products Diamond Saw Blade (DIY) Diamond Turbo Blade Mesh Diamond Turbo Blade(5 sizes availbl
Mesh Diamond Turbo Blade(5 sizes availble)Mesh Diamond Turbo Blade(5 sizes availble)Mesh Diamond Turbo Blade(5 sizes availble)Mesh Diamond Turbo Blade(5 sizes availble)

Mesh Diamond Turbo Blade(5 sizes availble)

  • Product Item:A390
  • Diameter 4
  • Hard material, granite marble tile ceramic brick ect.
  • Dry or wet cutting
  • diamond disc  , diamond wheel  , granite saw blade cutting disc  , saw blades  , tile cutting disc
    Inquiry Send Email Buy Online

    Description

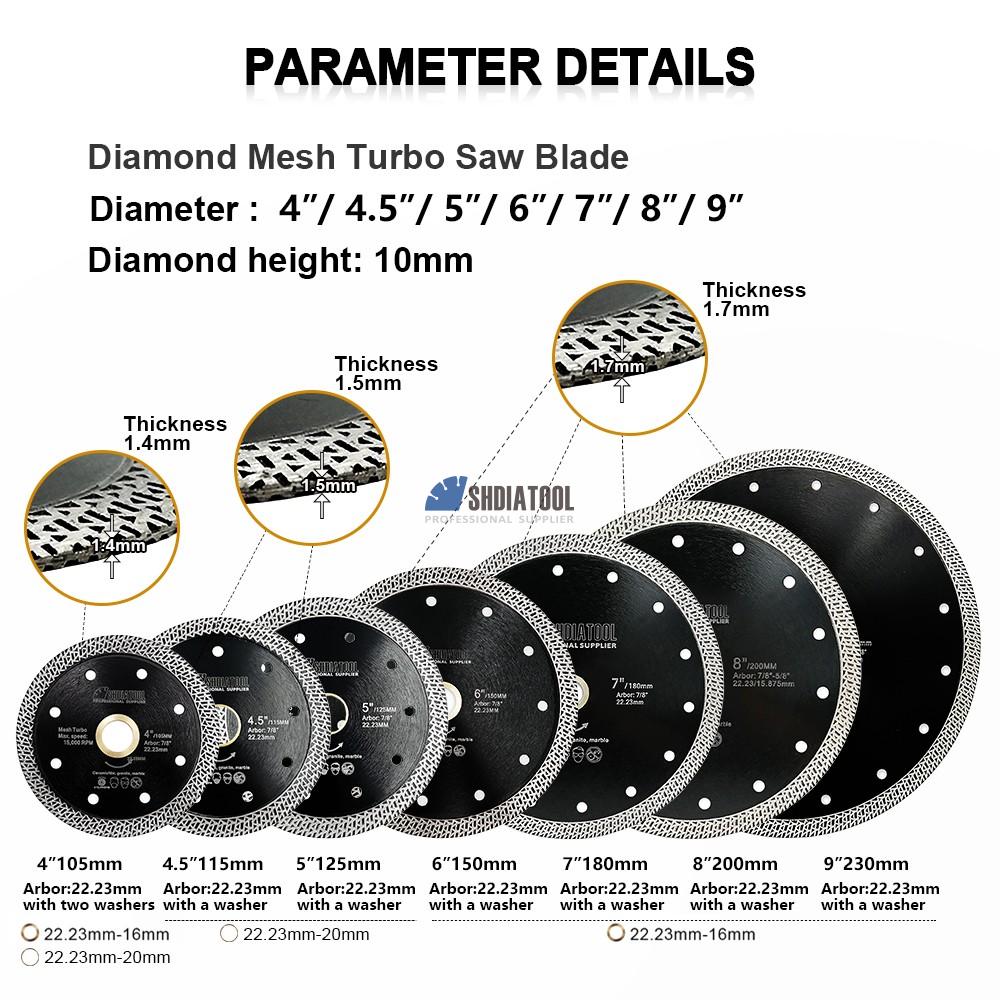

    Specification:

    105MM       Diameter 4"/105MM, Bore 20MM with a 20-16mm washer, Diamond height 10MM, Segment thickness 1.4MM.

    115MM       Diameter 4.5"/115MM, Bore 22.23MM with a 22.23-20mm washer,Diamond height 10MM, Segment thickness 1.5MM.

    125MM       Diameter 5"/125MM, Bore 22.23MM with a 22.23-20mm washer,Diamond height 10MM, Segment thickness 1.6MM.

    150MM       Diameter 6", Bore 22.23MM, Diamond height 10MM, 22.23mm-15.875mm(5/8") washer, Segment thickness 1.7MM

    180mm     Diameter 7"/180MM, Bore 22.23MM, Diamond height 10MM, 22.23mm-15.875mm(5/8") washer, Segment thickness 1.7MM

    230mm     Diameter 9"/230MM, Bore 22.23MM, Diamond height 10MM, 22.23mm-15.875mm(5/8") washer, Segment thickness 1.7MM

    Application:

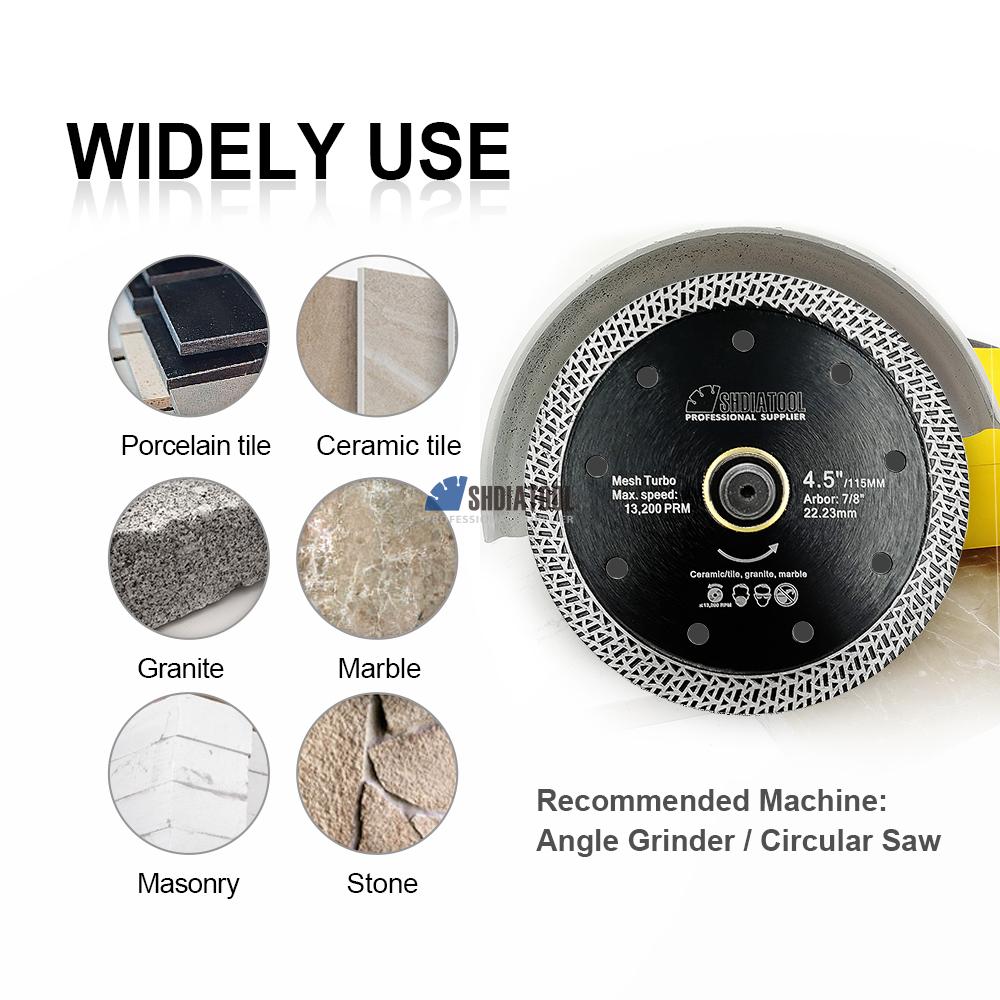

    Hard material, granite marble tile ceramic brick ect.

    Feature:

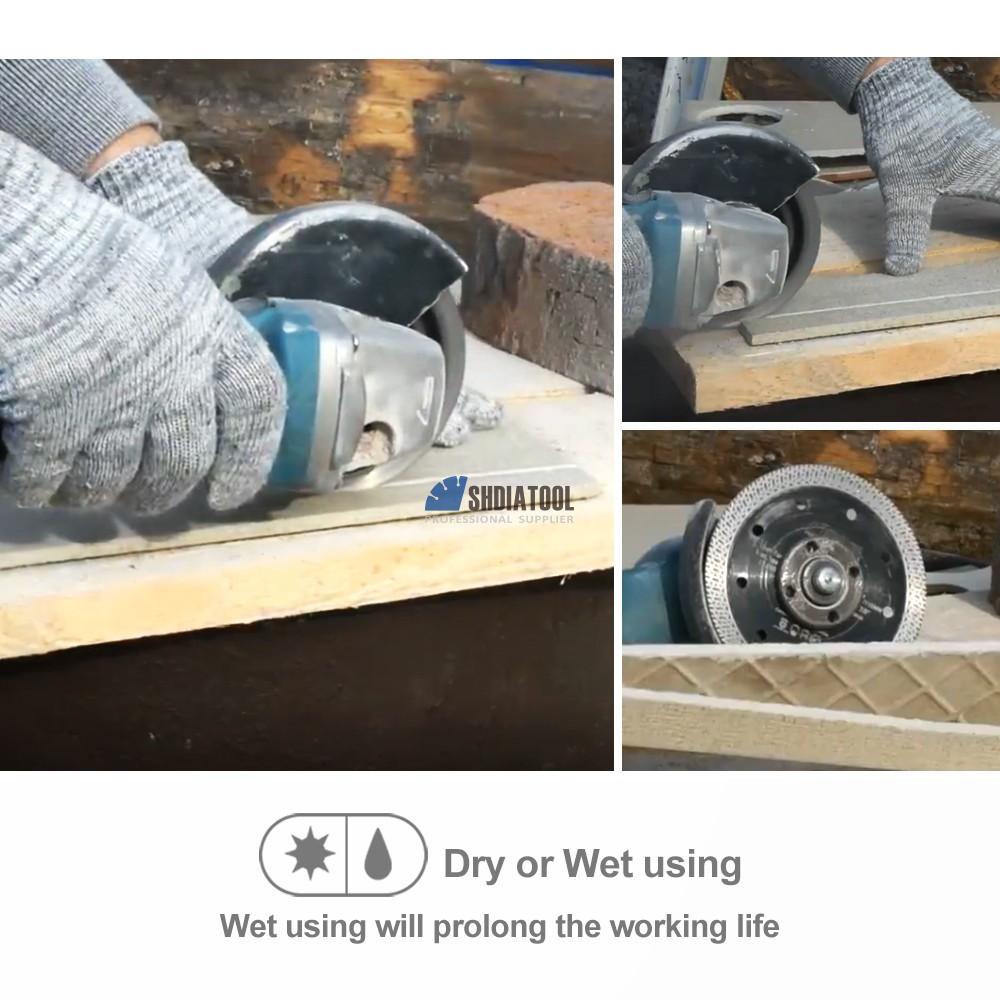

    Dry or wet cutting,

    Hot-pressed sintered blades provide long working life.

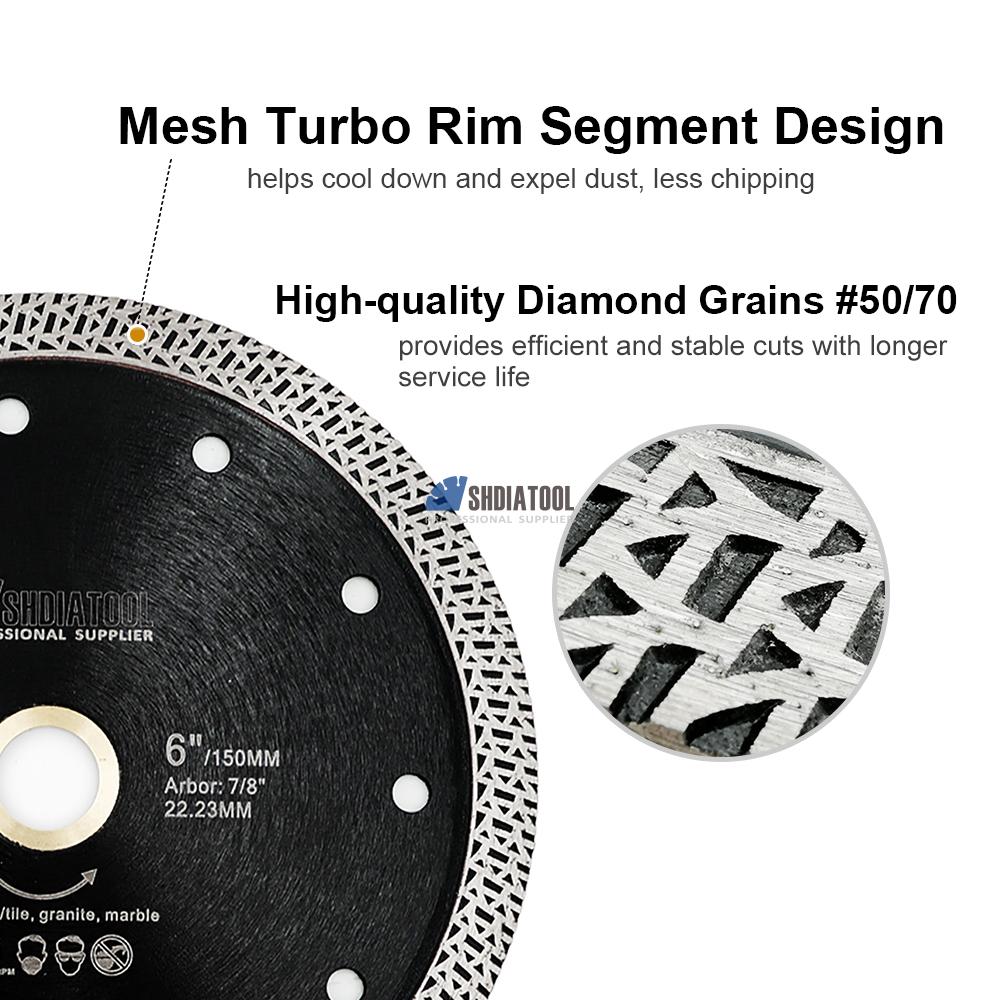

    New Design of Mesh turbo rim segment, the mesh turbo help to cooling and bring the dust out, so more efficient, fast and stable in cutting

    High quality industrial diamond grain was used in segments which can cutting multi materials

    ==============The End==============

    Ref. Brand: This product is marked our brand name. If you need these diamond disc without our brand, please leave us message.  we could send you products without brand. We also provide brand-customizing service (If you order more more, we could mark your brand name on these products)
