M16 Laser Welded Turbo Segment Diamond Core Drill Bit 68/72/82mm Center Drill SDS-Plus Adapter on Concrete Masonry Brick

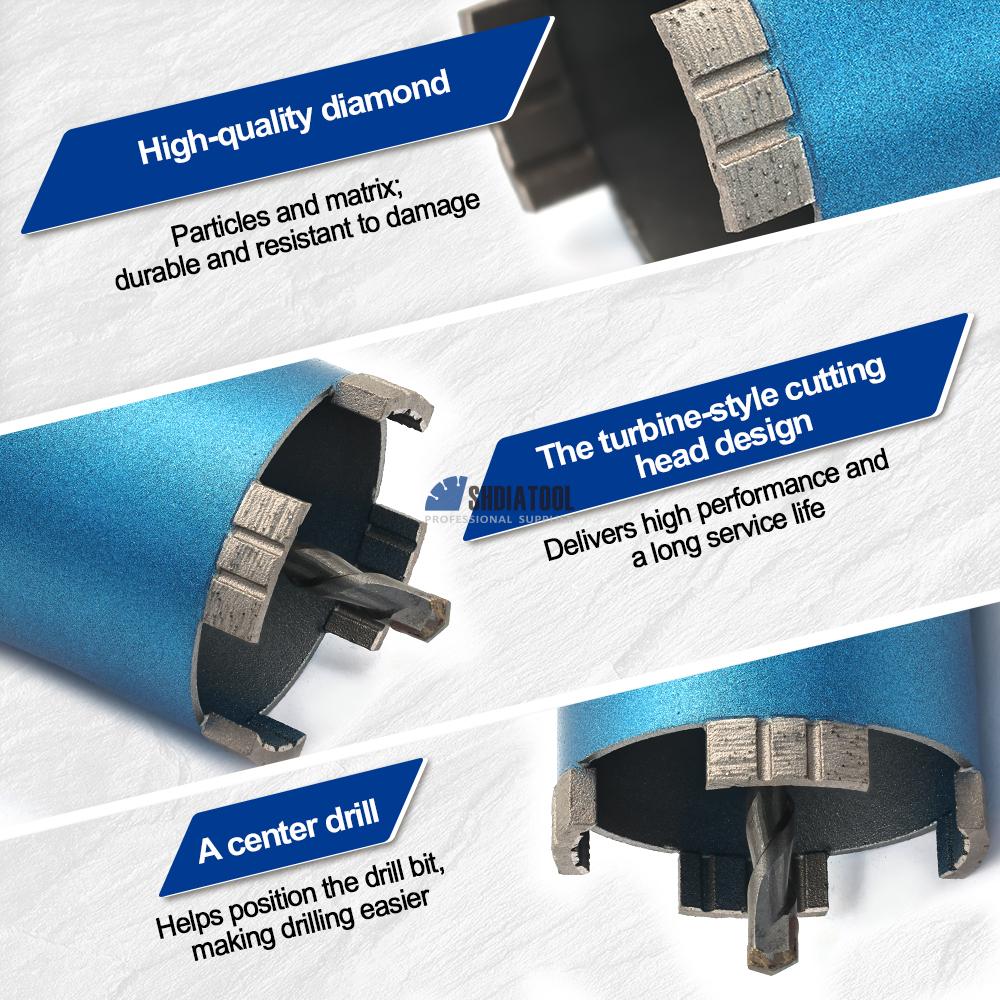

High-quality diamond particles matrix; durable and resistant to damage;Turbo type segments provide efficient performance and long working life.Centering drill help to position the core drill, easy to do the drilling job.Laser welding provides strong welds, and the unique tube design aids in cooling and removing dust from the bore.SDS-Plus adapter can to fit to drill or hammer drill easily
Price : 12.11-13.73USD
- Information
- Description
|
Product Name |
Laser Welded Diamond Core Center Drill Bit |
Style |
Diamond Hole Saw |
|
Brand |
SHDIATOOL or OEM |
Shank |
SDS PLUS Shank |
|

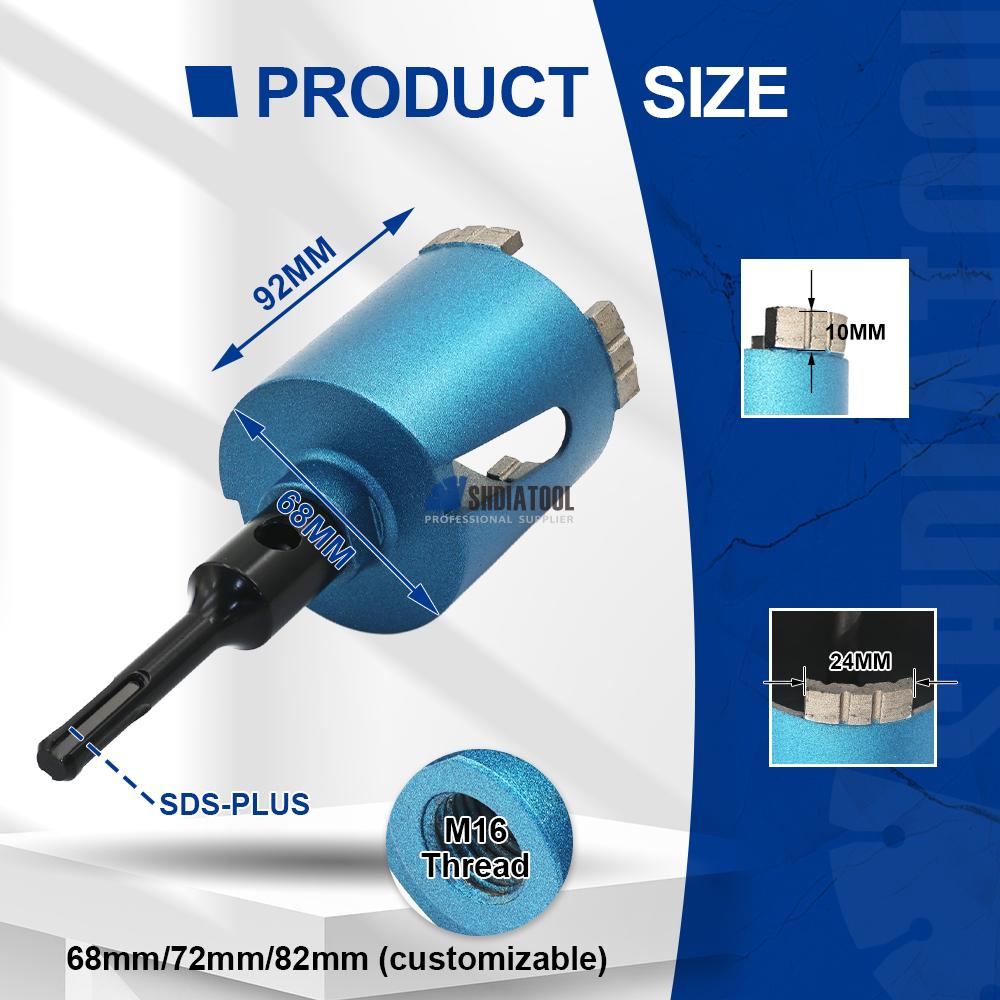

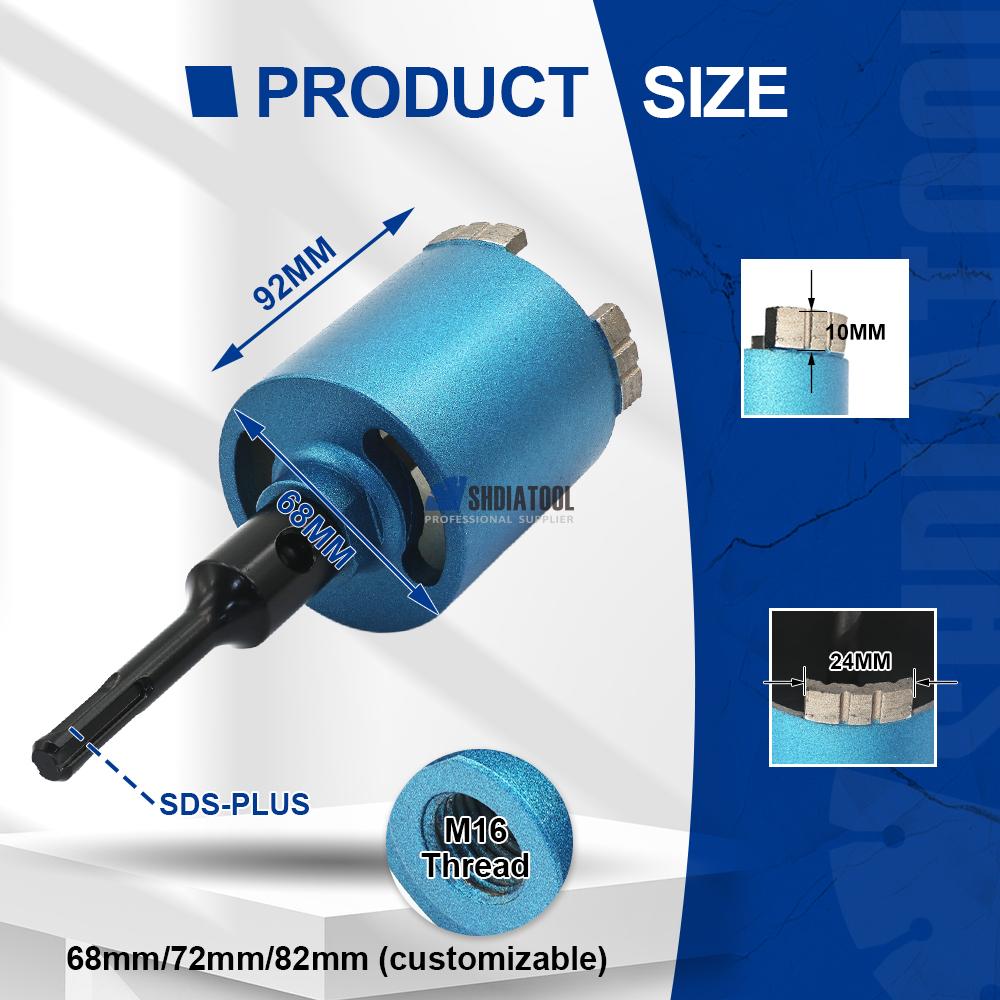

Diameter |
68mm/72mm/82mm |
Diamond Height |
10mm |
|
Total Height |
92mm |
Thread |
M16 |
|
Using Method |

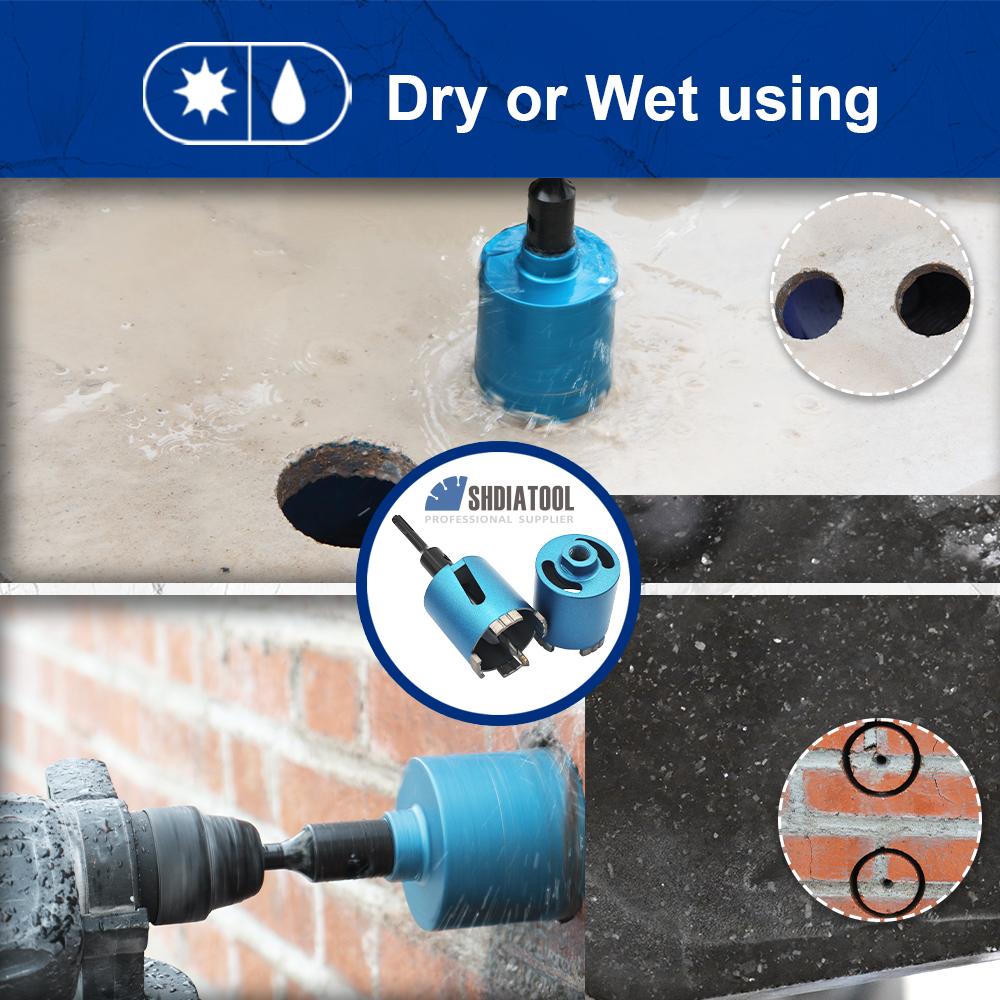

Drilling into brick walls, concrete block walls, masonry, or unreinforced, unplastered rough-textured concrete products is not recommended; solid cast concrete is not recommended. When used on stone or reinforced concrete, the tool must be used wet with sufficient water added; |
||

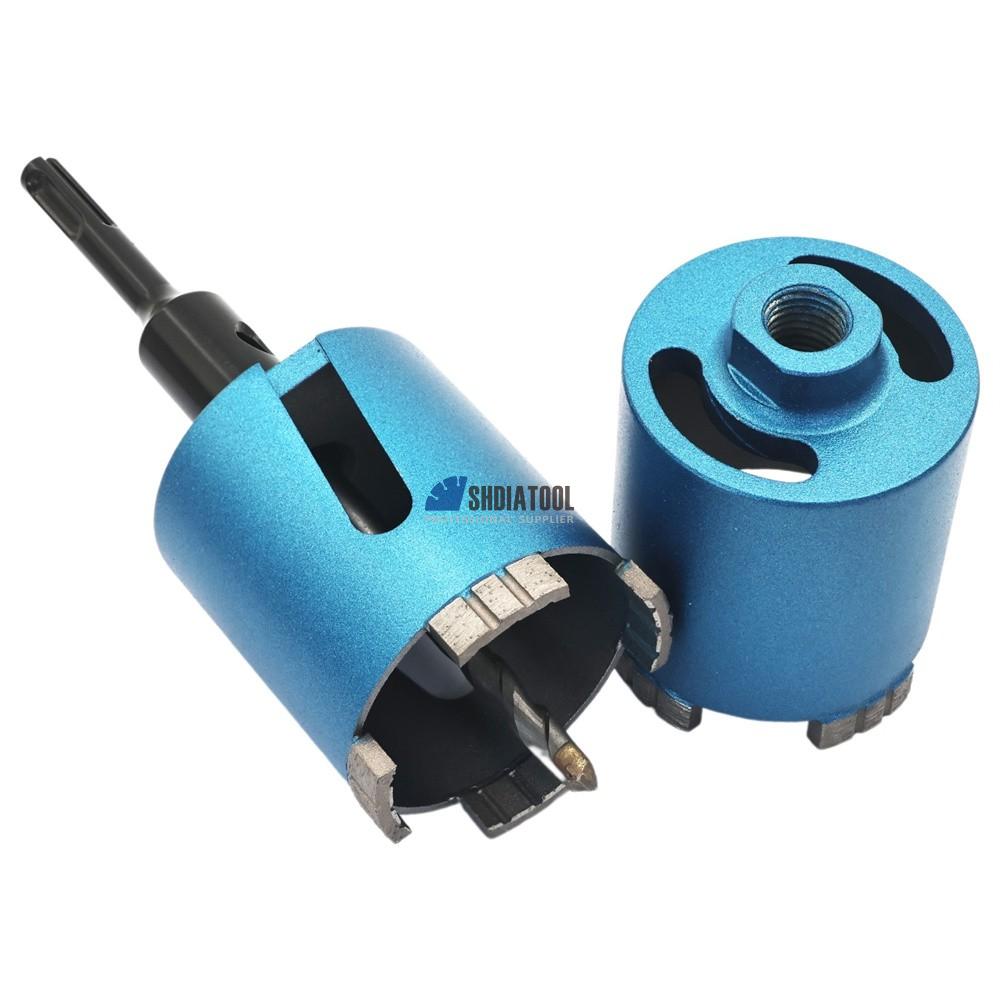

1.M16 thread screws straight onto core drilling rigs and water-fed drills, while the included SDS-Plus adapter mounts the same bit on an SDS-Plus rotary hammer. One drill covers the rig and the hammer drill already in the van — no second set of bits for the second machine.

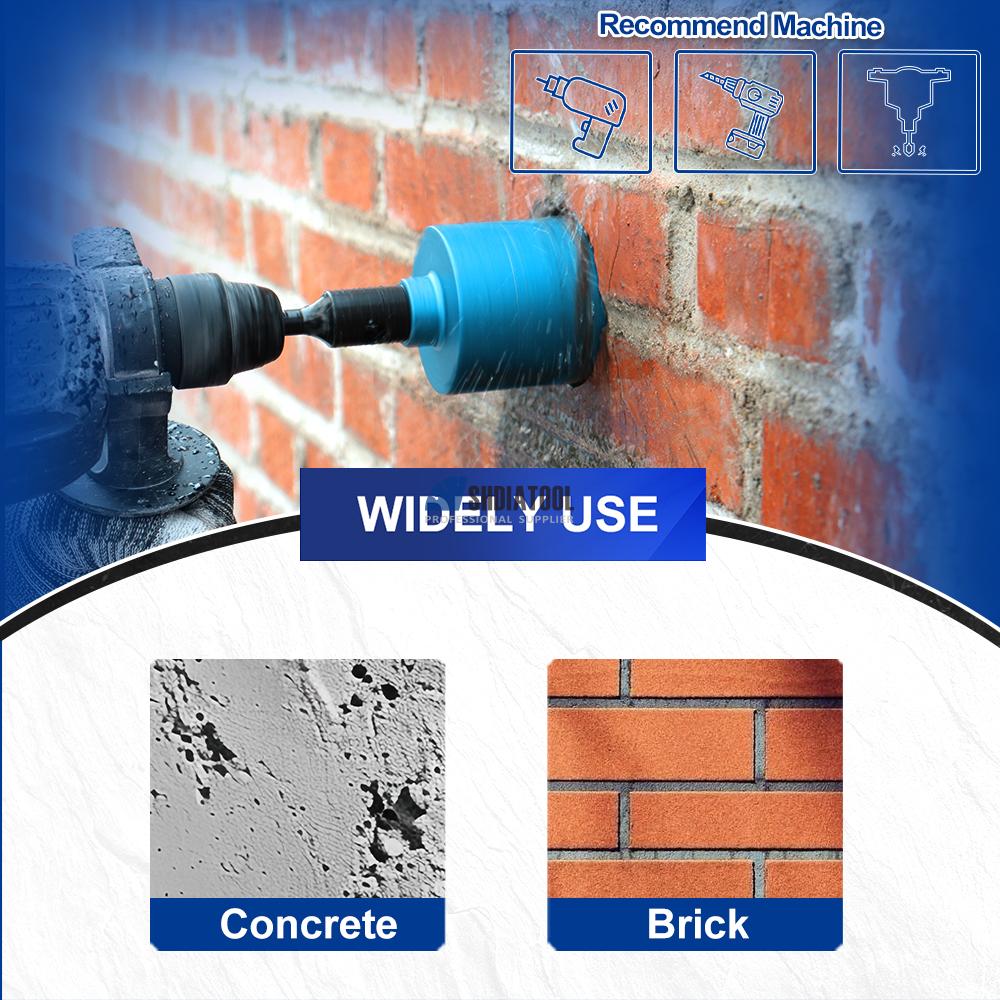

2.68 / 72 / 82mm — The Big Holes on Installation Day.Covers the large-diameter openings crews actually drill: air-conditioning pipe runs, drainage and waste lines, extraction and vent ducts, and cable wall penetrations.
3.The center drill bites first and holds the bit in place — no skating across smooth concrete or glazed surfaces, no oval holes, no re-marking halfway through, even when drilling overhead one-handed on a ladder.

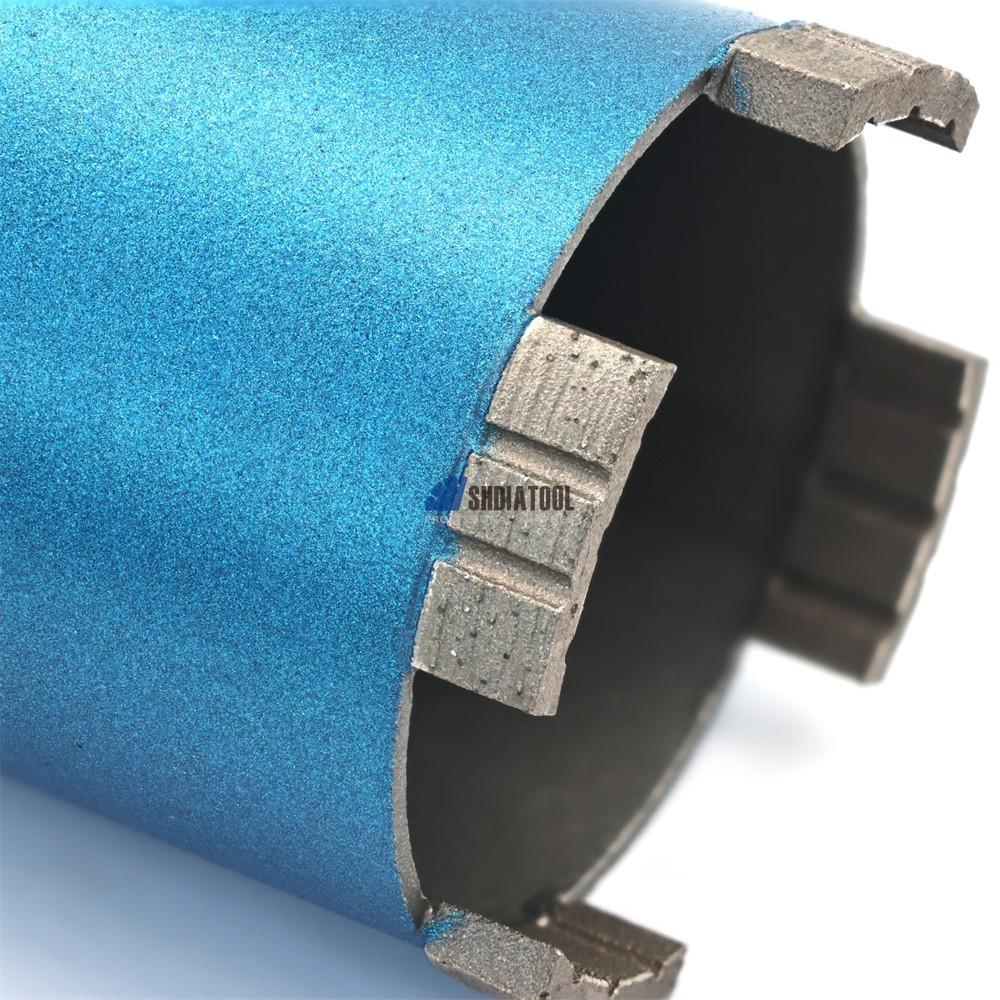

4.Segments are laser-fused to the barrel, not brazed or sintered — the bond holds under load and through rebar, so no segment loss mid-hole. Turbo geometry clears debris and vents heat for steady cutting in hard concrete and reinforced masonry.
|
Product Name |
Laser Welded Diamond Core Center Drill Bit |
Style |
Diamond Hole Saw |
|
Brand |
SHDIATOOL or OEM |
Shank |
SDS PLUS Shank |
|
Diameter |
68mm/72mm/82mm |
Diamond Height |
10mm |
|
Total Height |
92mm |
Thread |
M16 |
|
Using Method |
Drilling into brick walls, concrete block walls, masonry, or unreinforced, unplastered rough-textured concrete products is not recommended; solid cast concrete is not recommended. When used on stone or reinforced concrete, the tool must be used wet with sufficient water added; |
||
1.M16 thread screws straight onto core drilling rigs and water-fed drills, while the included SDS-Plus adapter mounts the same bit on an SDS-Plus rotary hammer. One drill covers the rig and the hammer drill already in the van — no second set of bits for the second machine.
2.68 / 72 / 82mm — The Big Holes on Installation Day.Covers the large-diameter openings crews actually drill: air-conditioning pipe runs, drainage and waste lines, extraction and vent ducts, and cable wall penetrations.
3.The center drill bites first and holds the bit in place — no skating across smooth concrete or glazed surfaces, no oval holes, no re-marking halfway through, even when drilling overhead one-handed on a ladder.
4.Segments are laser-fused to the barrel, not brazed or sintered — the bond holds under load and through rebar, so no segment loss mid-hole. Turbo geometry clears debris and vents heat for steady cutting in hard concrete and reinforced masonry.
