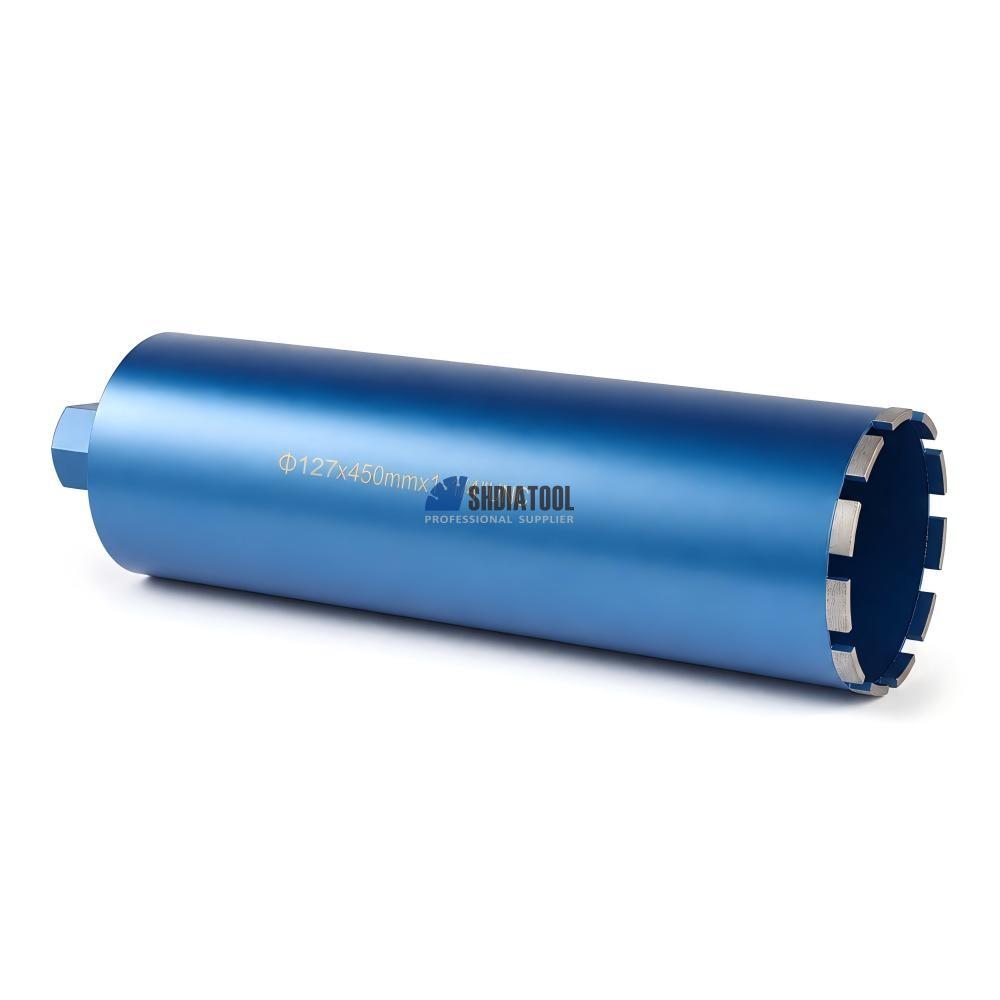

Laser Welded Diamond Core Drill Bit with Arix Segment for Reinforced Concrete Granite Marble Solid Block Stone Wet Drilling Tool
Matrix brazing technology ensures that all diamond abrasive grains contribute to the drilling process. The drill bit is significantly sharper, offers high precision, and effectively reduces drilling temperature.For drilling holes in construction materials such as concrete, reinforced concrete, hard brick walls, masonry, and asphalt.For wet use only; add plenty of water; use in spin mode only.
Price : 11.97USD
- Information
- Description
|
Product Name |
Diamond Segment Core Drill Bit |
Style |
Diamond Hole Saw |
|
Brand |
SHDIATOOL or OEM |
Shank |
1-1/4"-7 UNC |
|

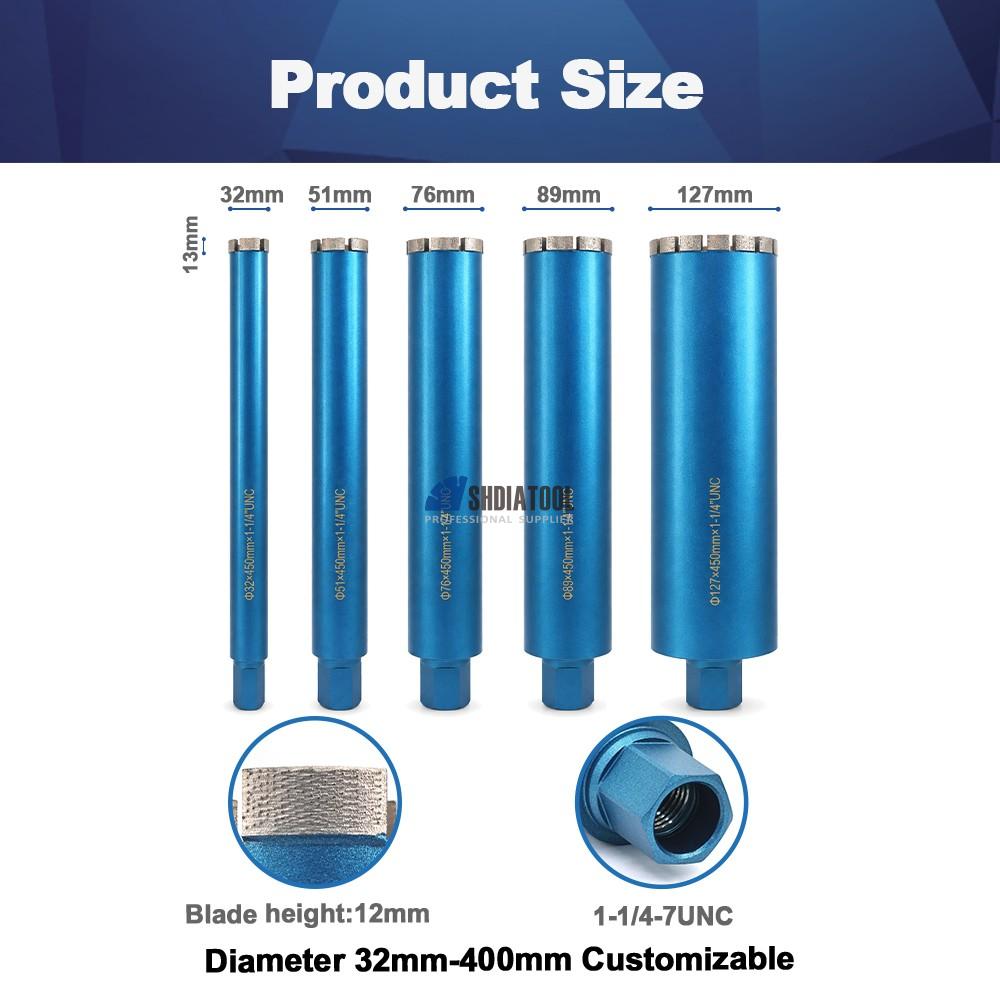

Diameter |

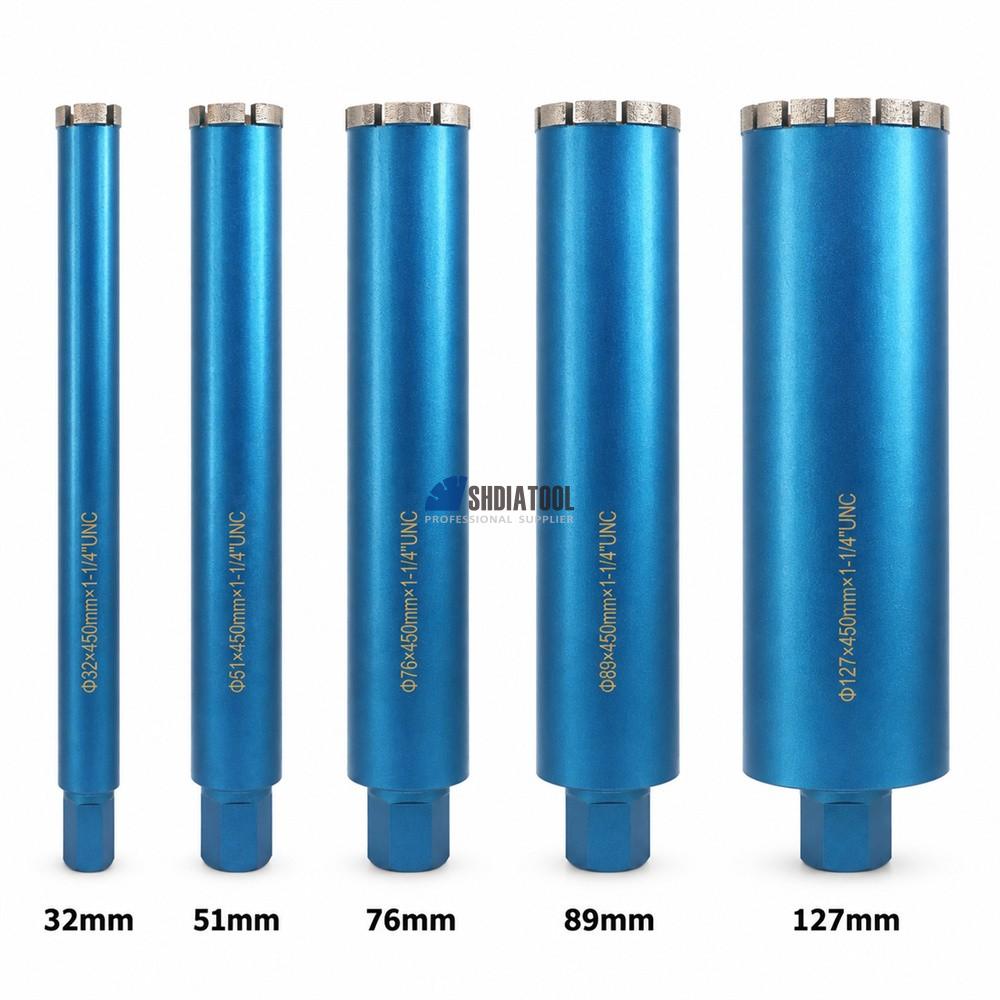

32-400mm |
Diamond Height |
12mm |
|
Working Depth |
400mm |
Total Height |
450mm |
|
Application |

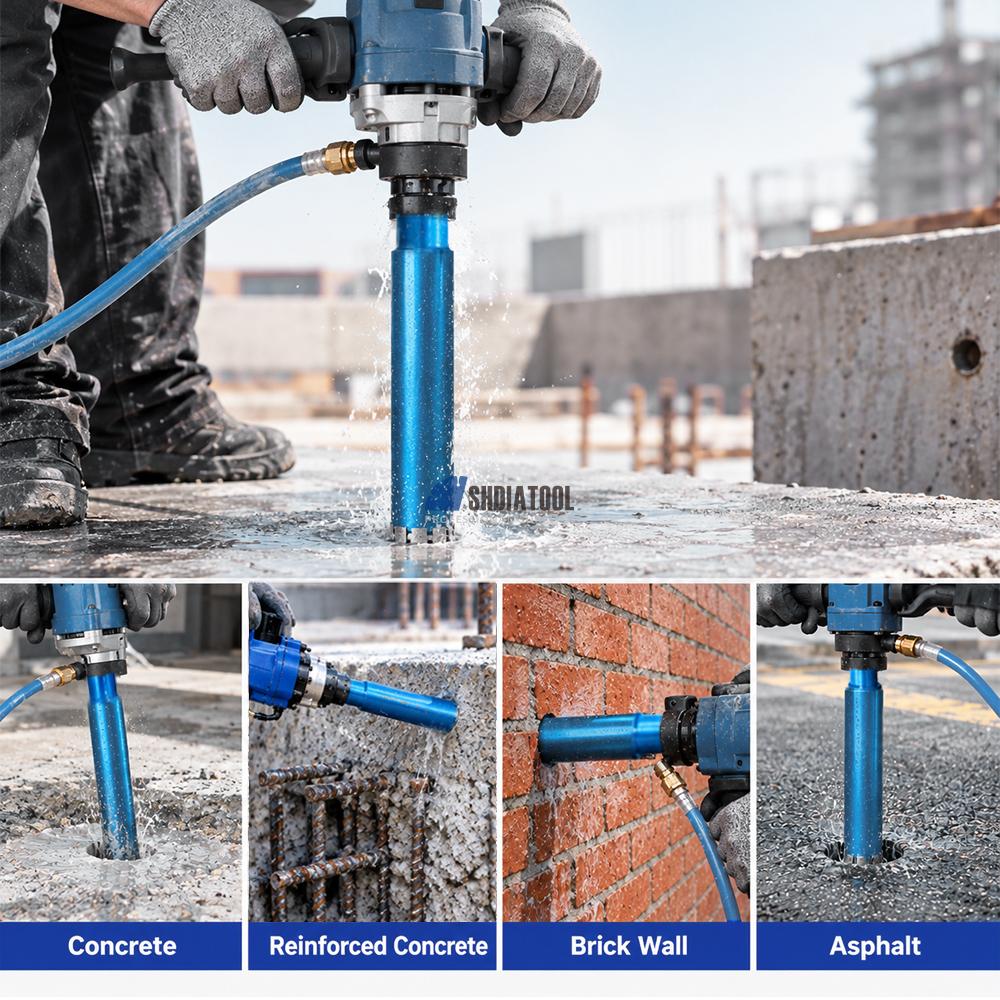

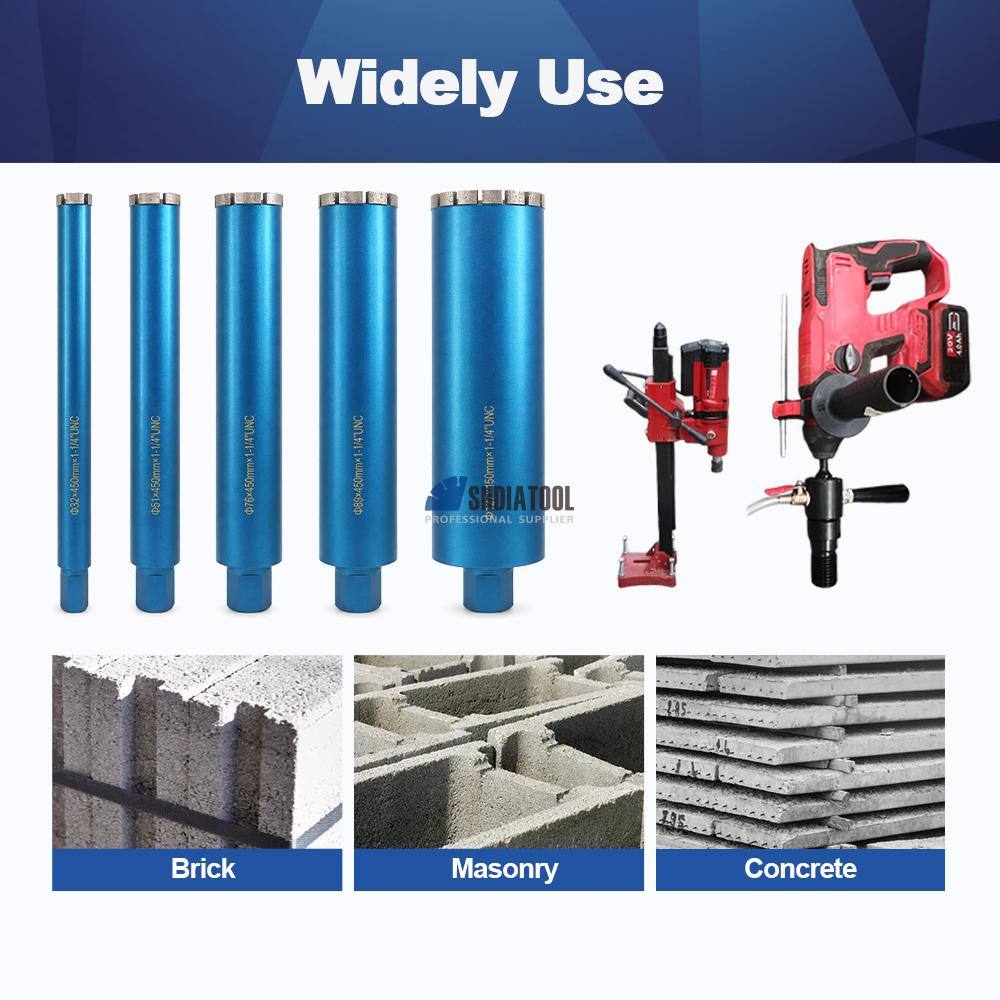

1. For drilling holes in construction materials such as concrete, reinforced concrete, hard brick walls, masonry, and asphalt. 2. For wet use only; add plenty of water; use in spin mode only. 3. Suitable for handheld engineering drills and professional engineering drills. |
||

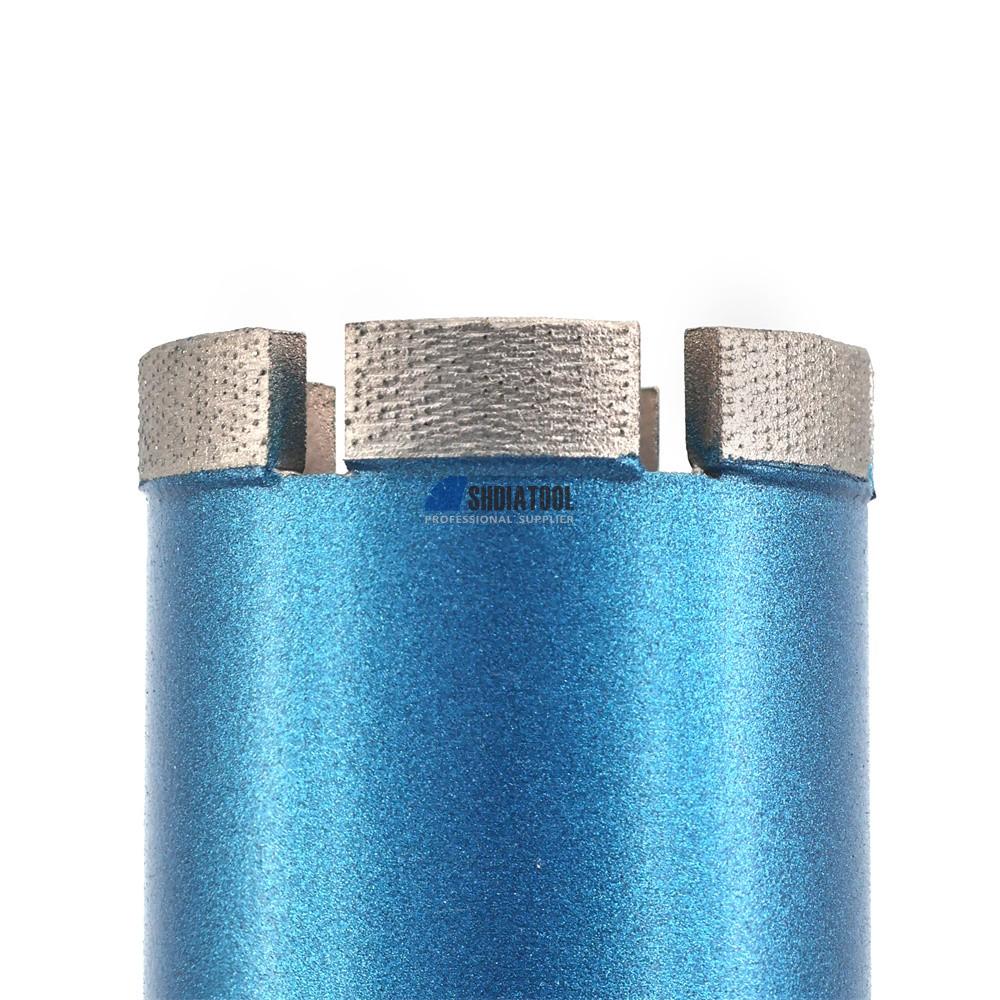

1.The Arix segment pattern packs diamond densely and evenly across the cutting face, so the load spreads instead of concentrating on a few protruding grits. The result is a crown that keeps cutting hard aggregate at a steady rate rather than glazing over where a standard segment would stall.

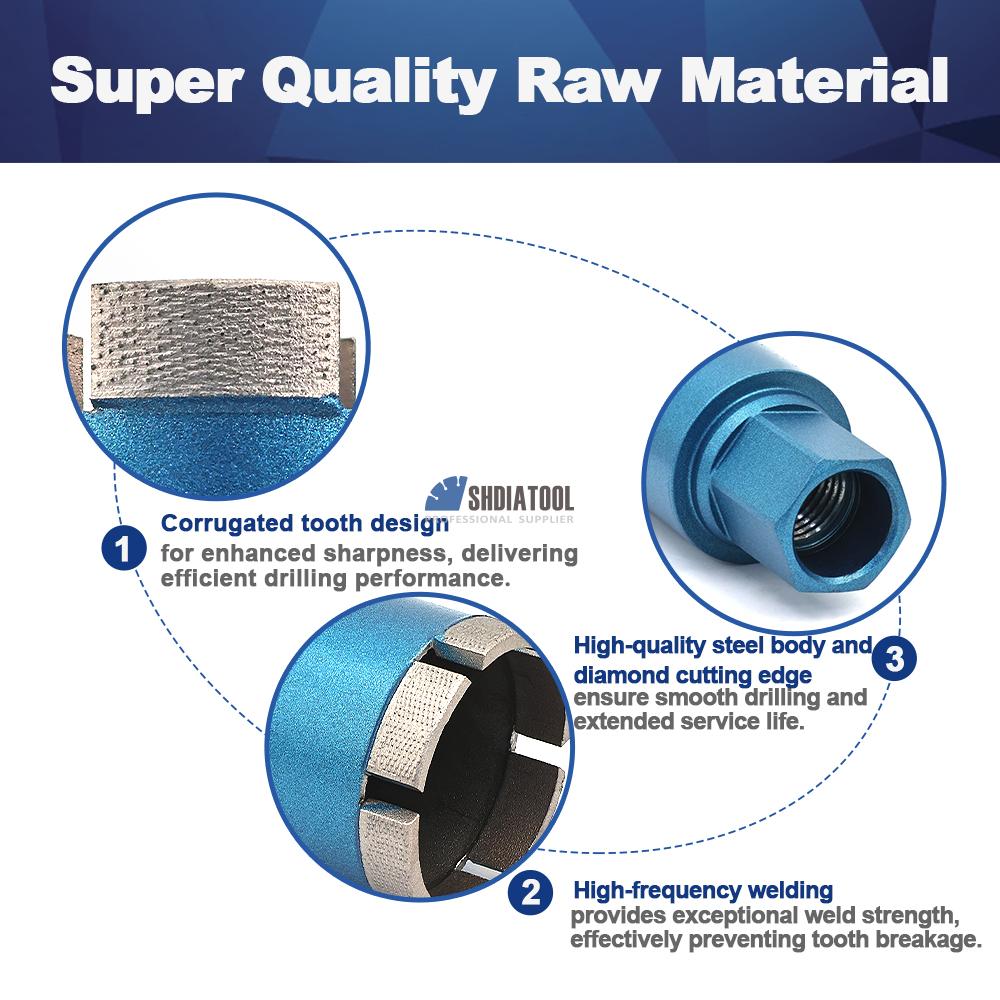

2.Segments are laser-fused to the steel barrel, the highest-strength joint used on diamond tooling. The bond survives contact with rebar and hard inclusions — no segment shear, no barrel damage from a thrown block, which is what ends the life of a sintered bit in reinforced concrete.
3.The range starts at small service penetrations and runs to 400mm structural and duct openings on the same thread standard. Contractors sizing a riser core, a duct drop, or a heavy cable run order the same barrel line instead of sourcing the large diameters elsewhere.
4.Run wet on granite, marble, and solid block stone, where dry cutting scorches the face and chips the exit edge. Coolant carries the fines away and holds the crown temperature down, keeping the hole round and the stone face clean through the full depth.
|
