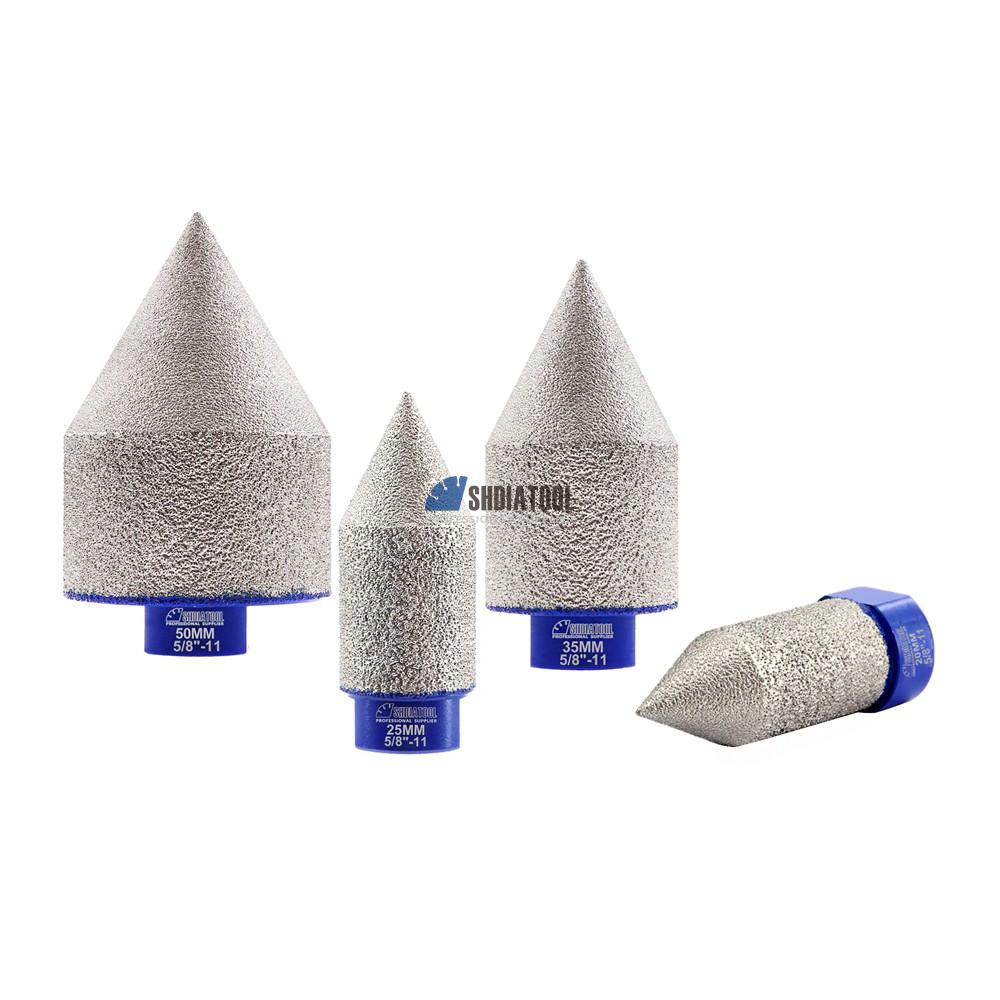

20/25/35/50mm M14 or 5/8''-11 Thread Diamond Vacuum Brazed Chamfering Milling Finger Bits

Product Name

Chamfering Milling Finger Bits

Brand

SHDIATOOL or OEM

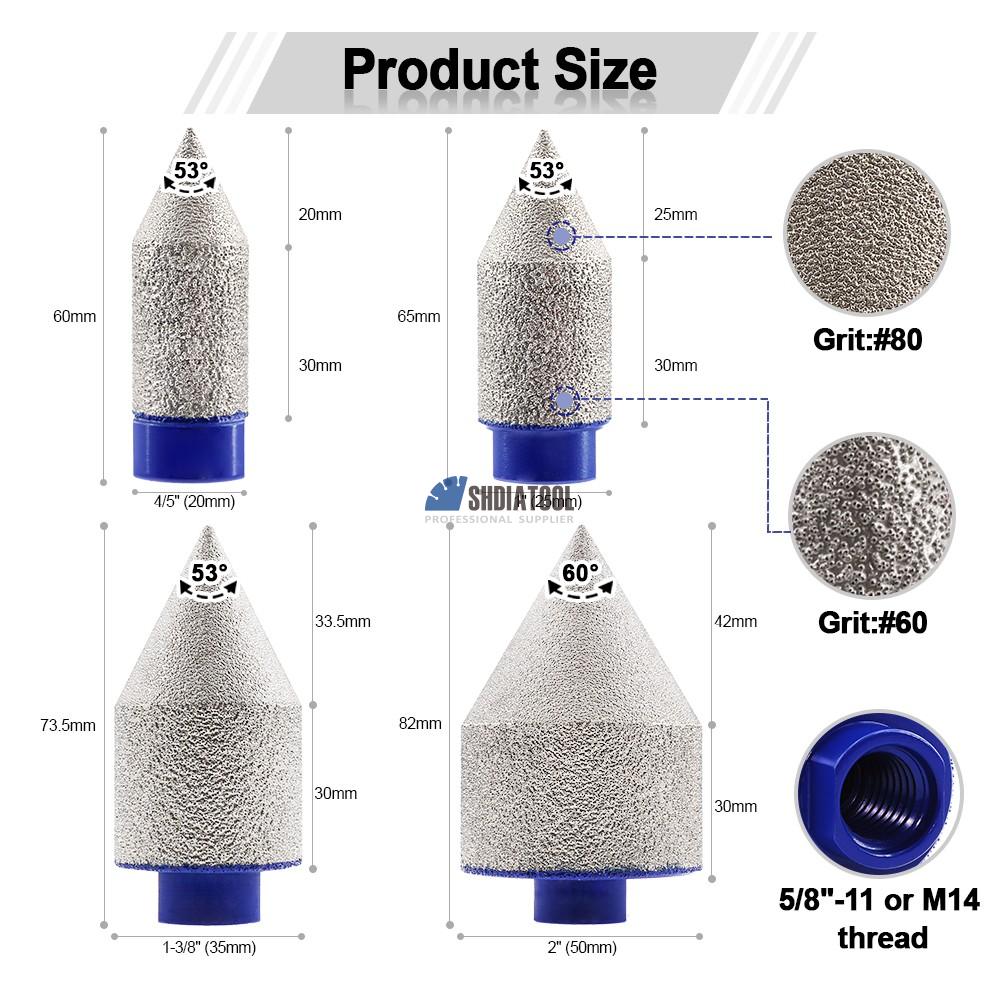

Specification

*Diameter 20mm,Total length 60mm;Chamfering Part: Length 20mm, Grit#80,Top angle 53°;
·Milling Part: Length 30mm, Grit#60

*Diameter 25mm,Total length 65mm;Chamfering Part: Length 25mm, Grit#80,Top angle 53°;
·Milling Part: Length 30mm, Grit#60

*Diameter 35mm,Total length 73.5mm;Chamfering Part: Length 33.5mm, Grit#80,Top angle 53°;

·Milling Part: Length 30mm, Grit#60

*Diameter 50mm,Total length 82mm;Chamfering Part: Length 42mm, Grit#80,Top angle 60°;
·Milling Part: Length 30mm, Grit#60

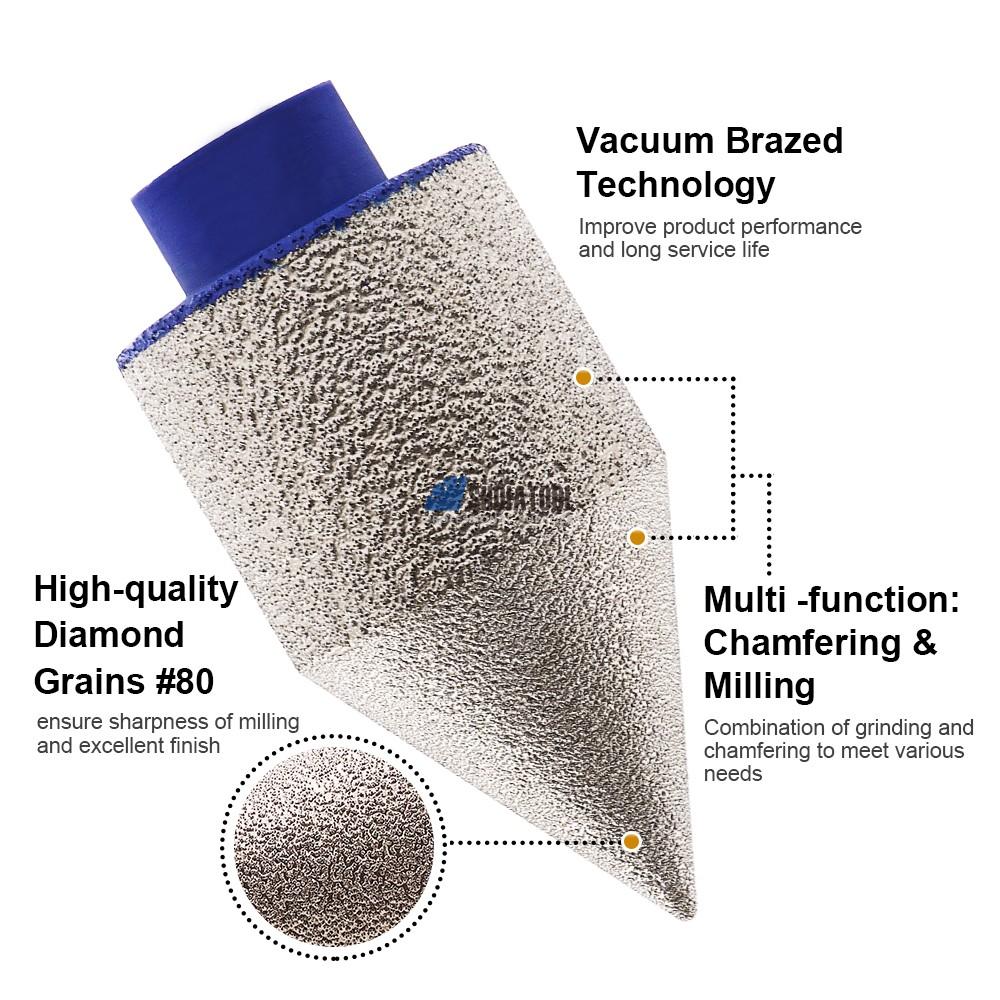

Feature

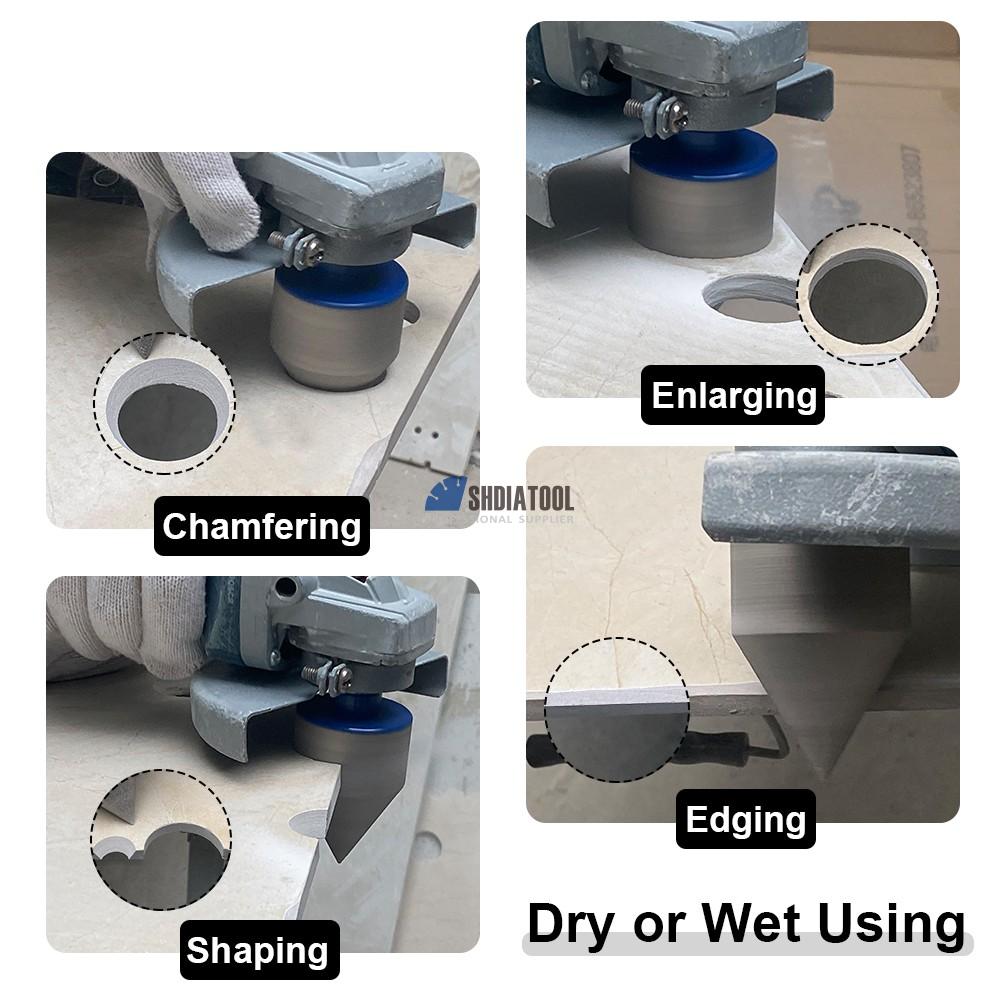

1.Multi-function: Chamfering & Milling Combination of grinding and chamfering to meet various needs
2.Vacuum brazed technology improves product performance and prolongs service life.
3.High-quality diamond coated ensures sharpness of drilling and better finishing.

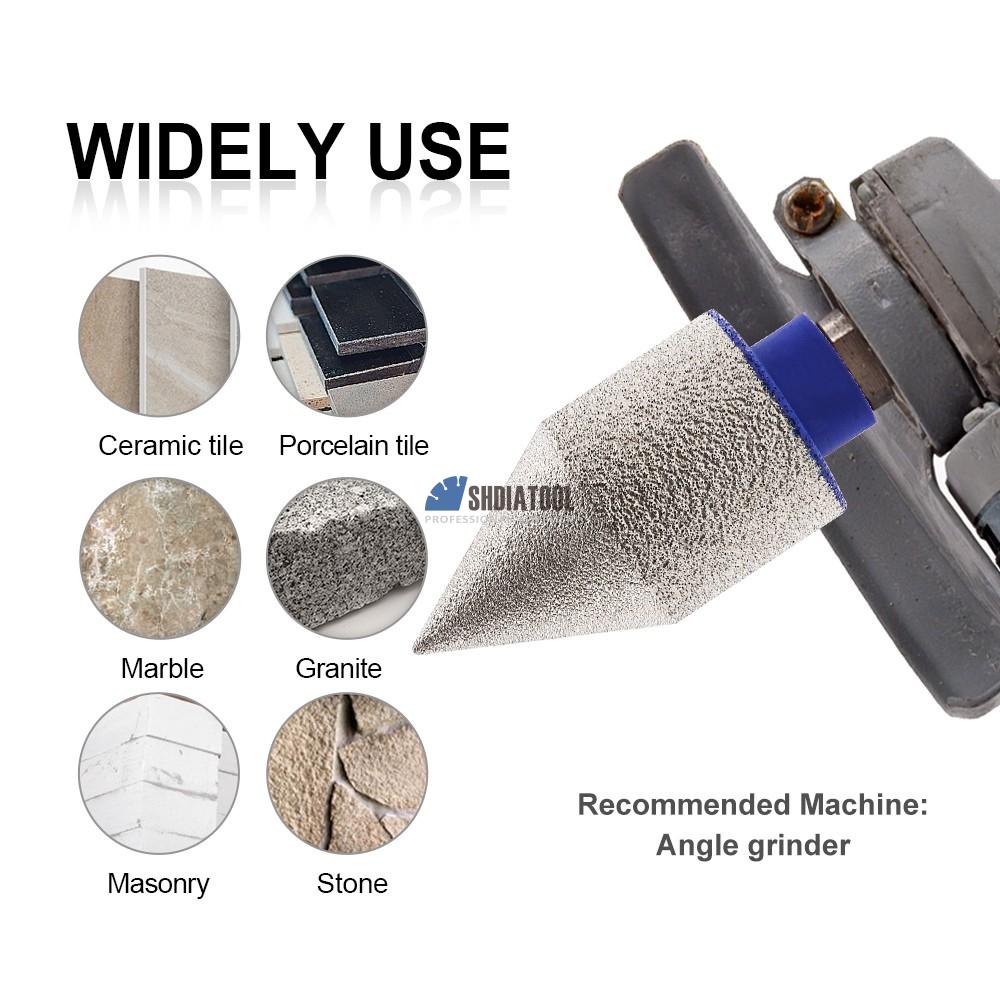

Application

1.For milling ceramic tile, porcelain tile, marble, granite and other materials;
2.Dry or wet use, suitable for angle grinder.
