20/35/50/75MM Vacuum Brazed Diamond Chamfering Bit Diamond Milling Bits Chamfer M14/5/8''-11 For Beveling Enlarging Exit Hole

Item

SHDIATOOL Vacuum Brazed Diamond Chamfer bits Milling bits

Customized support

OEM, ODM

Brand Name

SHDIATOOL

Application

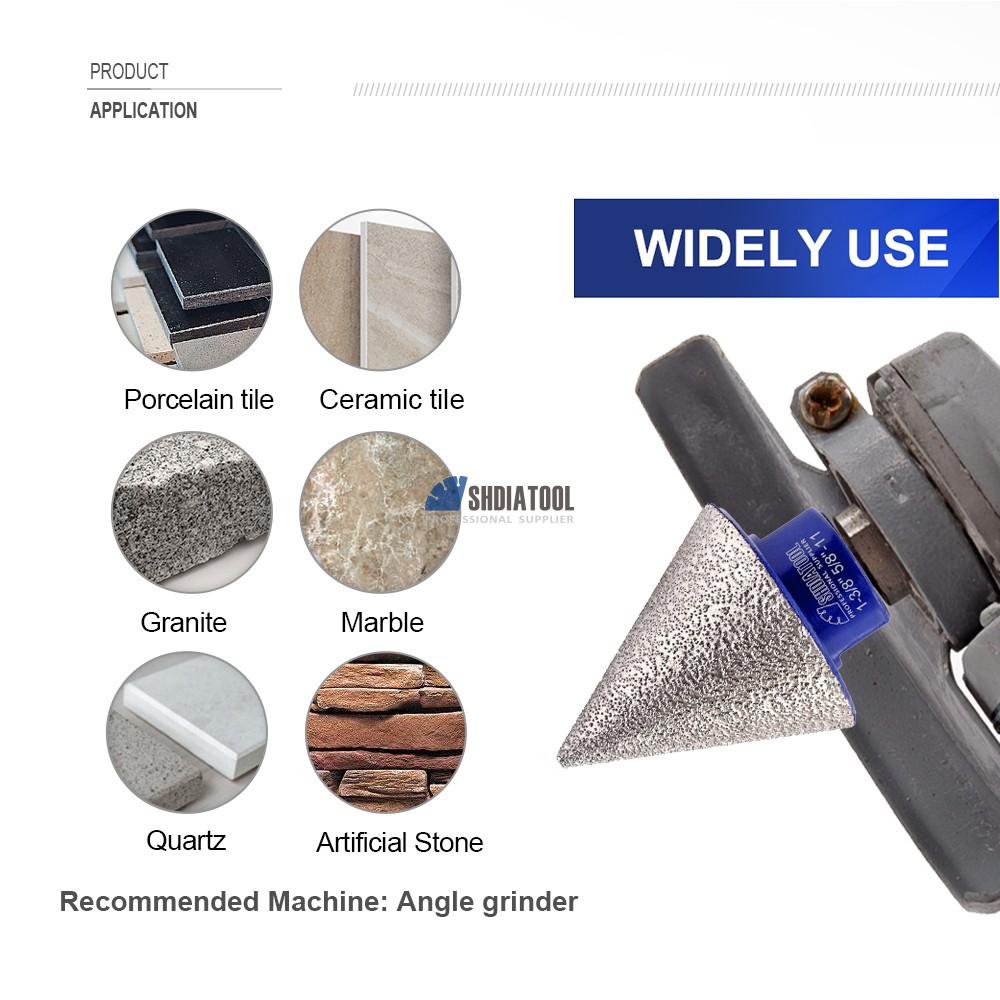

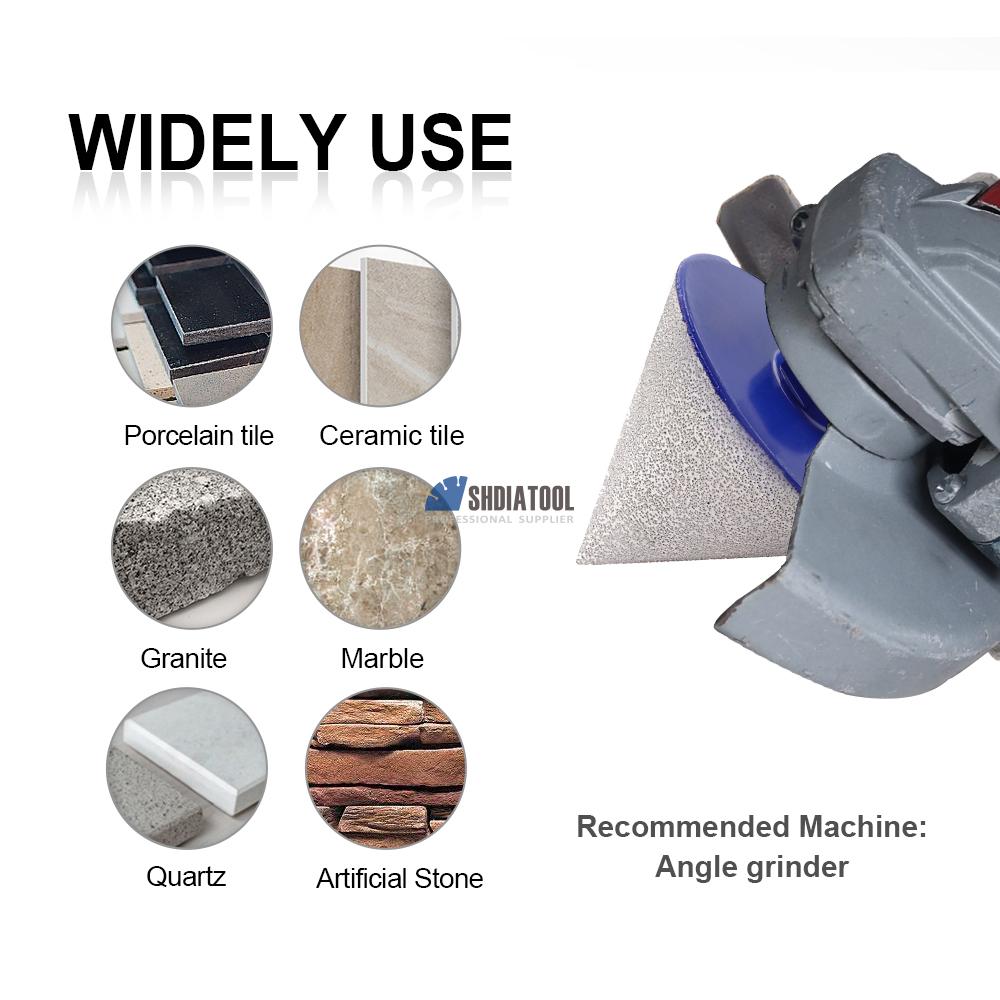

For enlarging, polishing and bevelling the exist holes

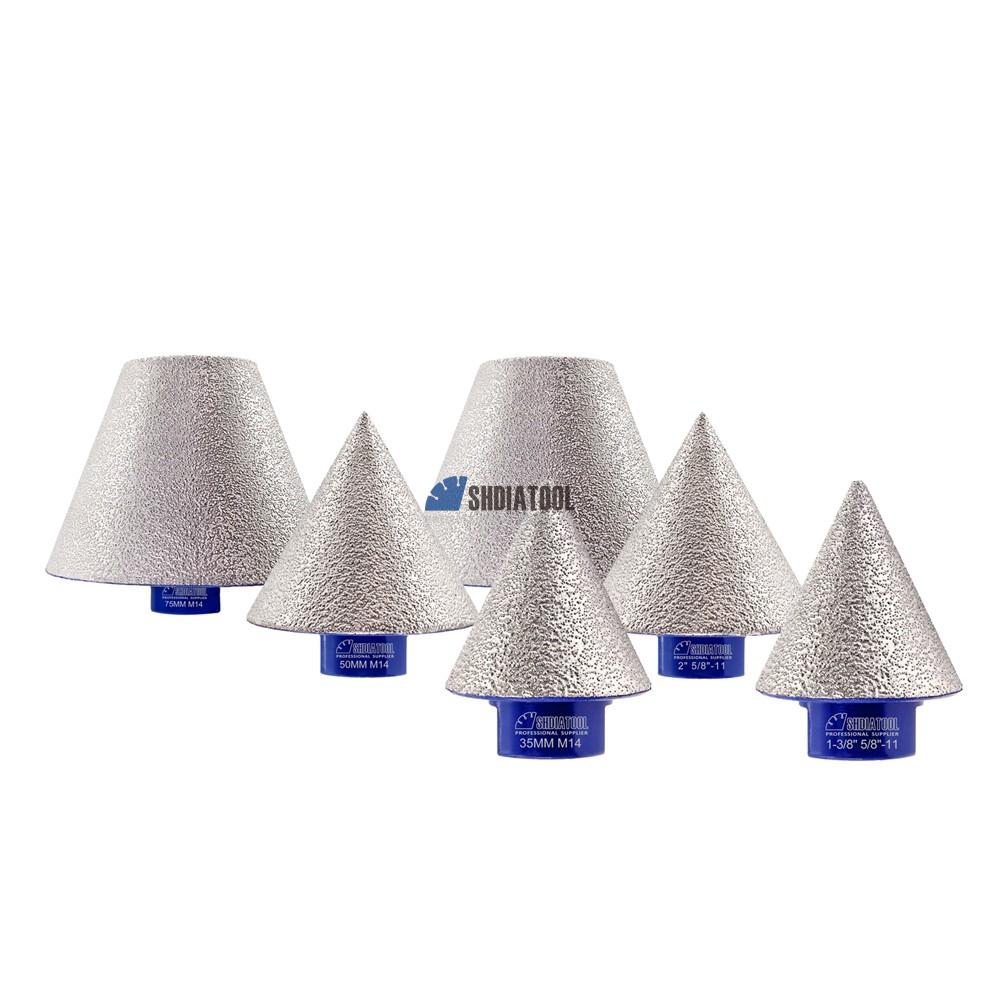

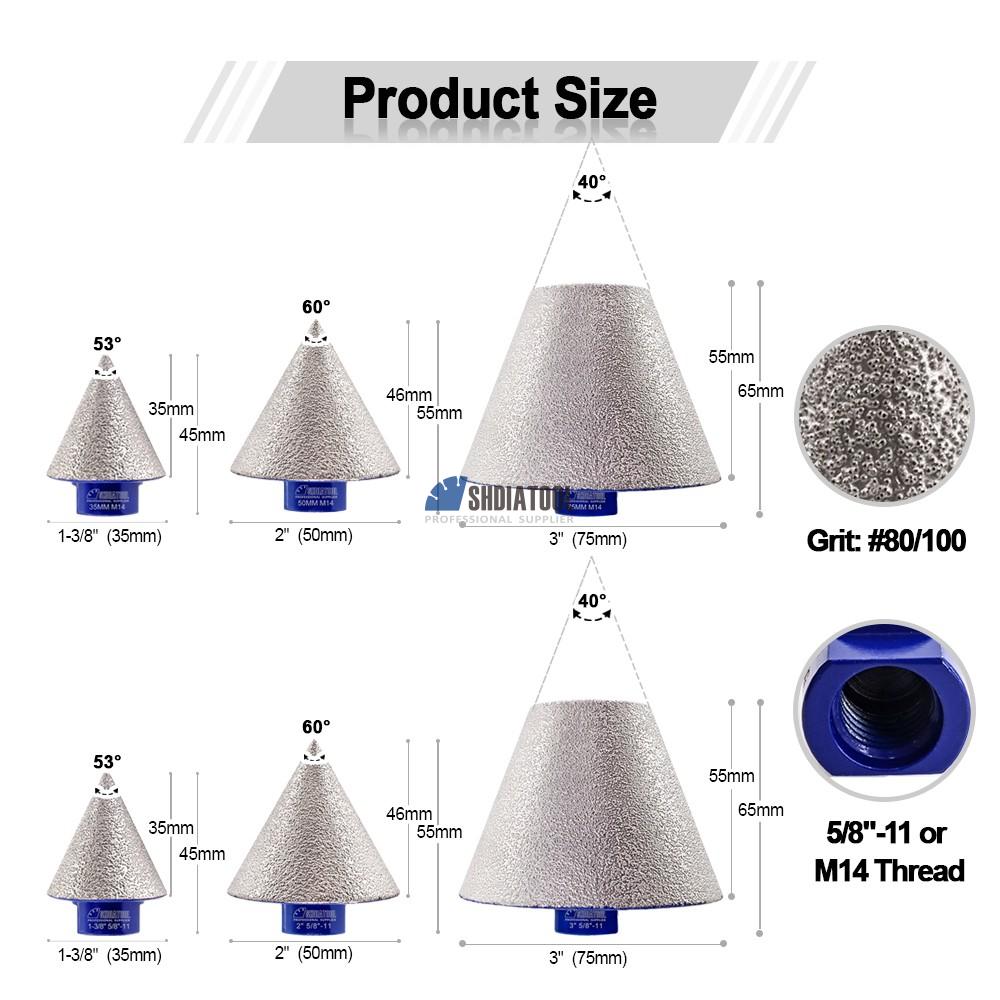

Specification

Dia 20mm: Total length 40mm,Working length 20mm,Top Angle 56°,Grit #80;
Dia 25mm: Total length 35mm,Working length 25mm,Top Angle 53°,Grit #80/100;
Dia 30mm: Total length 40mm,Working length 30mm,Top Angle 53°,Grit #80/100;
Dia 35mm: Total length 45mm,Working length 35mm;Top Angle 53°,Grit #80;
Dia 40mm: Total length 50mm,Working length 40mm,Top Angle 53°,Grit #80/100;
Dia 45mm: Total length 55mm,Working length 45mm,Top Angle 53°,Grit #80/100;
Dia 48mm: Total length 54mm,Working length 45mm,Top Angle 58°,Grit #80/100;
Dia 50mm: Total length 55mm,Working length 46mm;Top Angle 60°,Grit #80;
Dia 75mm: Total length 65mm,Working length 55mm;Top Angle 40°,Grit #80; (Empty in the middle)

Feature

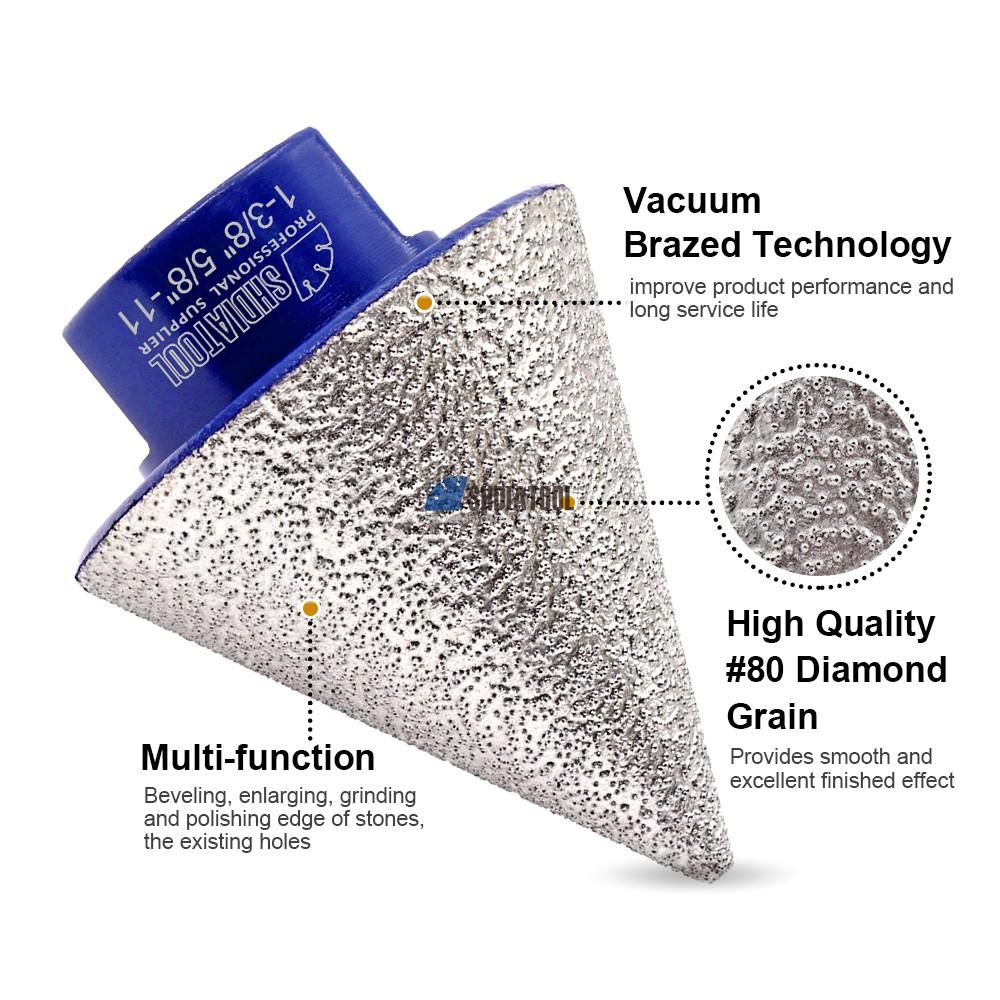

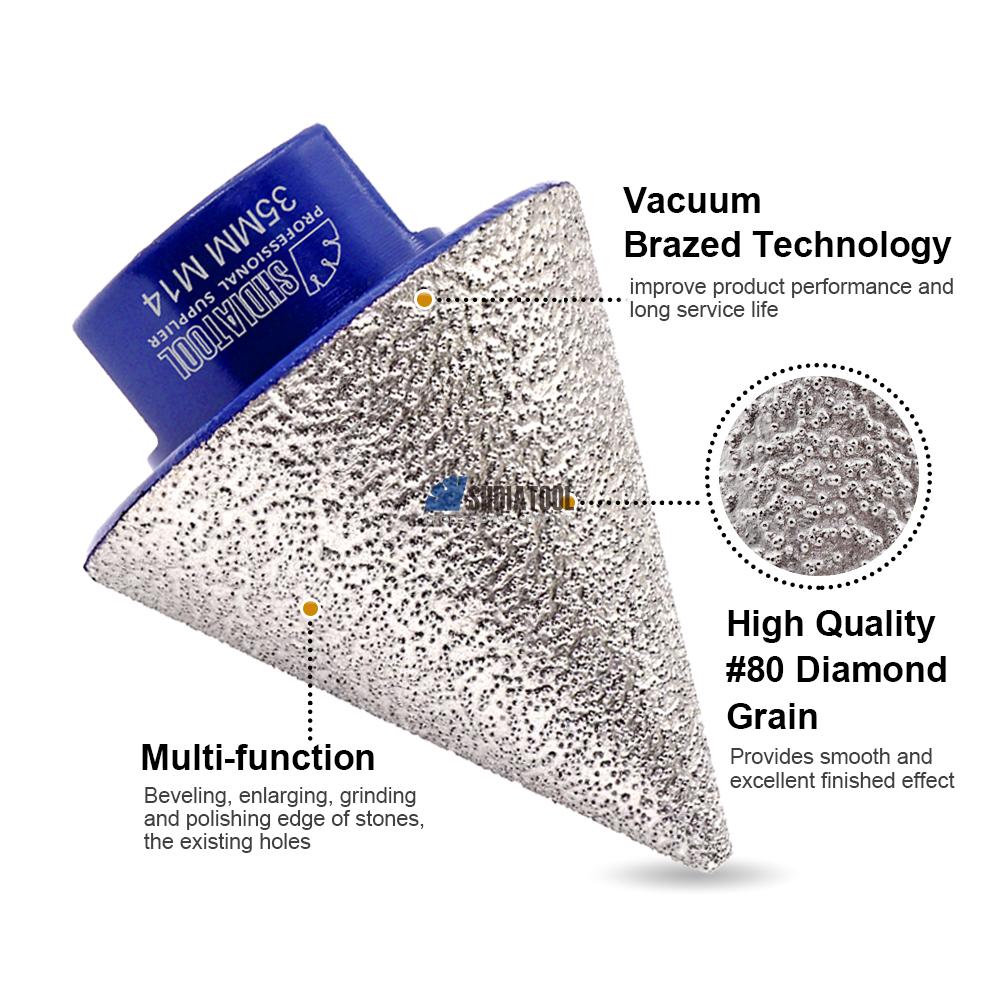

1. Vacuum brazed technology,improves product performance and long service life.
2. High quality #80 diamond grain,provides smooth and excellent finished effect.

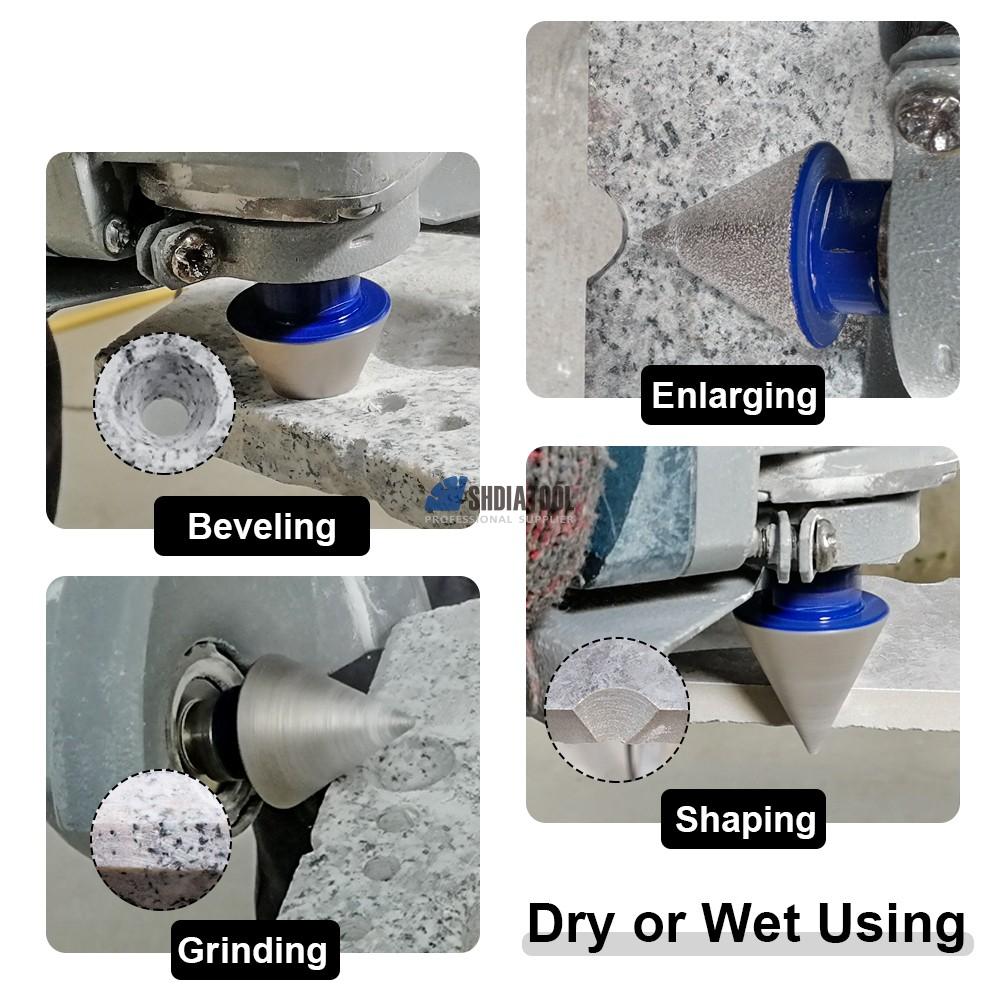

3. Multi-function,beveling,enlarging, grinding and polishing edge of stones,the existing holes.
4. Dry or wet use.
