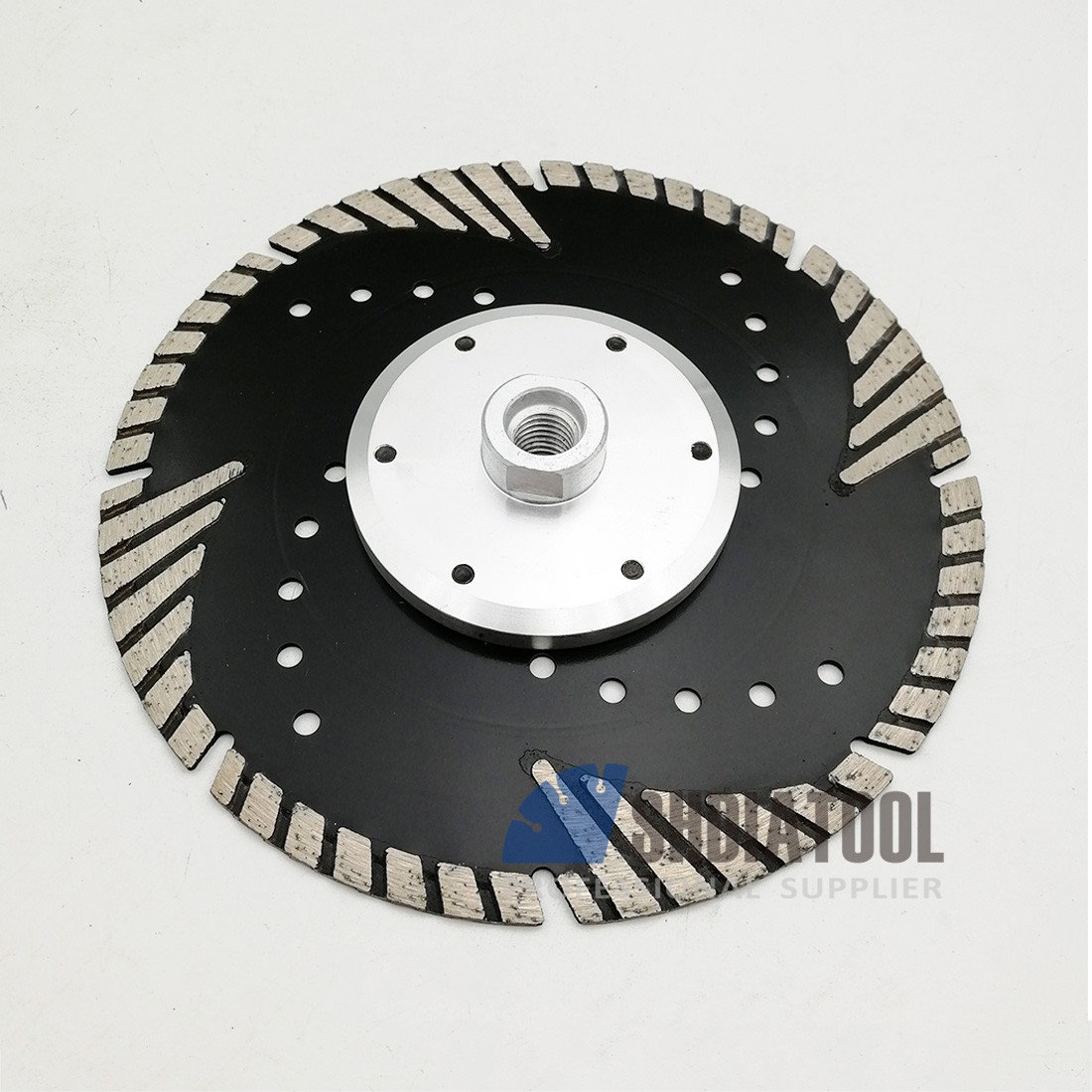

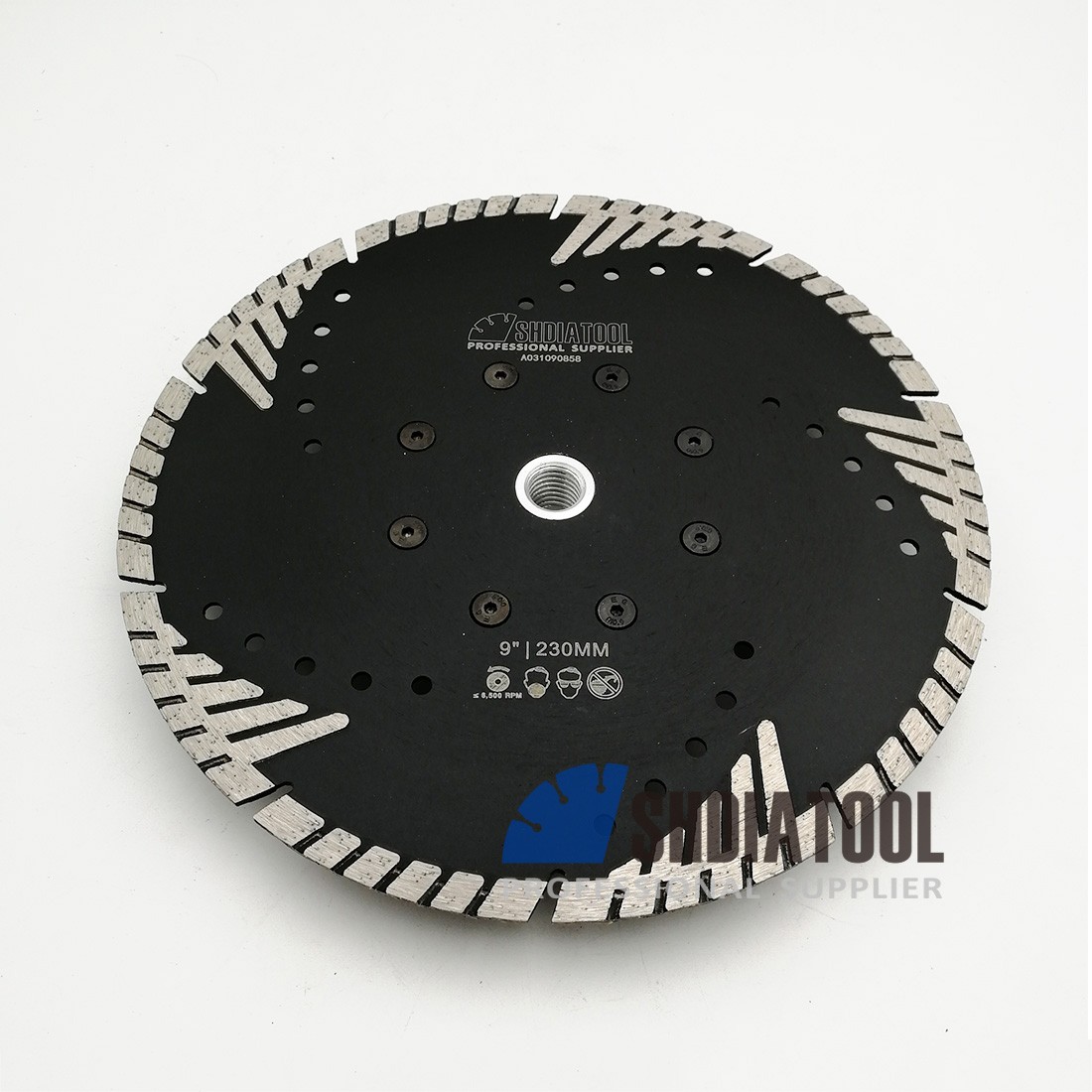

Diamond Blade with Slant protection teeth(10 sizes available)
  1. Diamond Blade with Slant protection teeth(10 sizes available)
  2. Diamond Blade with Slant protection teeth(10 sizes available)
  3. Diamond Blade with Slant protection teeth(10 sizes available)
  4. Diamond Blade with Slant protection teeth(10 sizes available)
  5. Diamond Blade with Slant protection teeth(10 sizes available)

Diamond Blade with Slant protection teeth(10 sizes available)

Product Item:A031

Multi-purpose, Can be used on cutting and grinding , efficient in deep cutting

Use wet or dry, wet working will help to increase the cutting performance.

Cutting stone & construction material, concrete, brick, tile, granite, marble, masonry

diamond disc  , diamond wheel  , marble saw blade cutting disc  , saw blades  , tile cutting disc
Inquiry Whatsapp Buy Online

Description

Specification: (Please order the right size as per your request)

ITEM DIAMETER BORE / Flange Thickness of segments
MM INCH
105MM Bore20
105
4
20MM Reducer 16MM
2.0MM-2.1MM
115MM Bore22 115
4 1/2
22.23MM ( 7/8")
2.3MM-2.4MM
125MM Bore22 125
5
22.23MM ( 7/8") 2.3MM-2.4MM
105MM M14 or 5/8-11 105
4
M14 or 5/8-11 Flange
2.0MM-2.1MM
115MM M14 or 5/8-11 115
4 1/2
M14 or 5/8-11 Flange 2.3MM-2.4MM
125MM M14 or 5/8-11 125
5
M14 or 5/8-11 Flange 2.3MM-2.4MM
180MM M14 180
7
M14 Flange 2.4MM-2.5MM
230MM M14 or 5/8-11 230
9
M14 or 5/8-11 Flange 2.6MM-2.7MM
180MM F22 180
7
22.23MM Flange 2.4MM-2.5MM
230MM F22 230
9
22.23MM Flange 2.6MM-2.7MM


Machine: Angle grinder or circular saw


Feature:

Multi-purpose, Can be used on cutting and grinding , efficient in deep cutting
Use wet or dry, wet working will help to increase the cutting performance.

Application:

Cutting stone & construction material, concrete, brick, tile, granite, marble, masonry........
