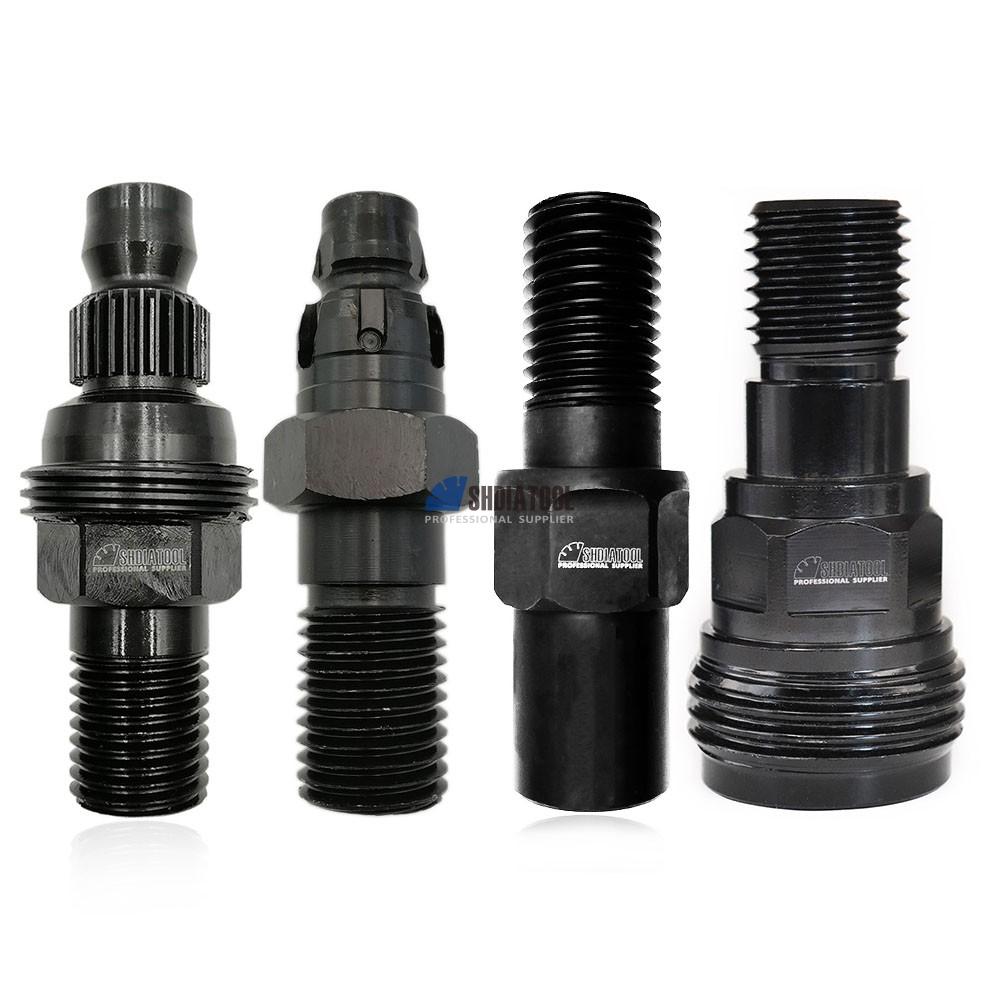

DIAMOND CORE DRILL ADAPTER for Hilti

Description

Specification:

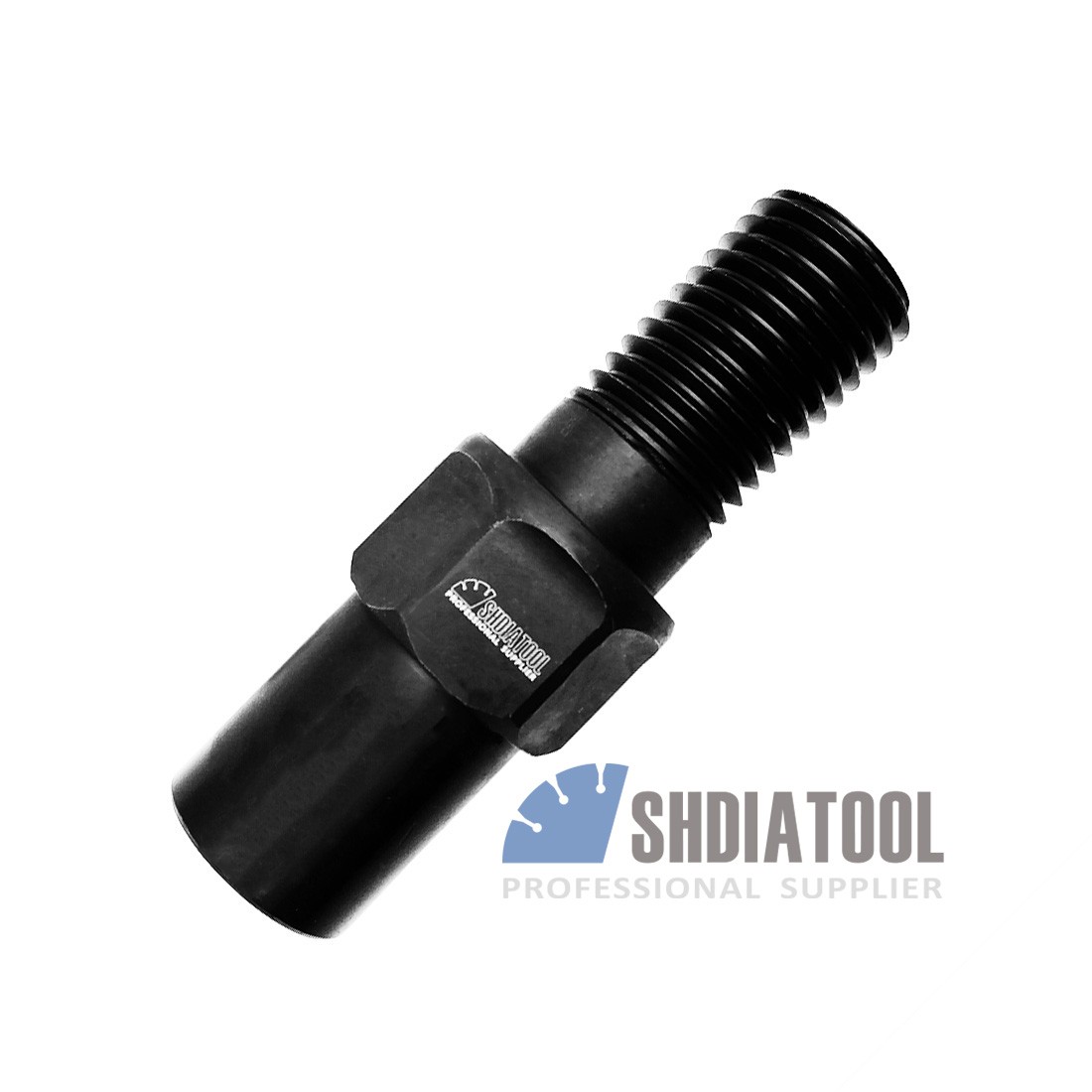

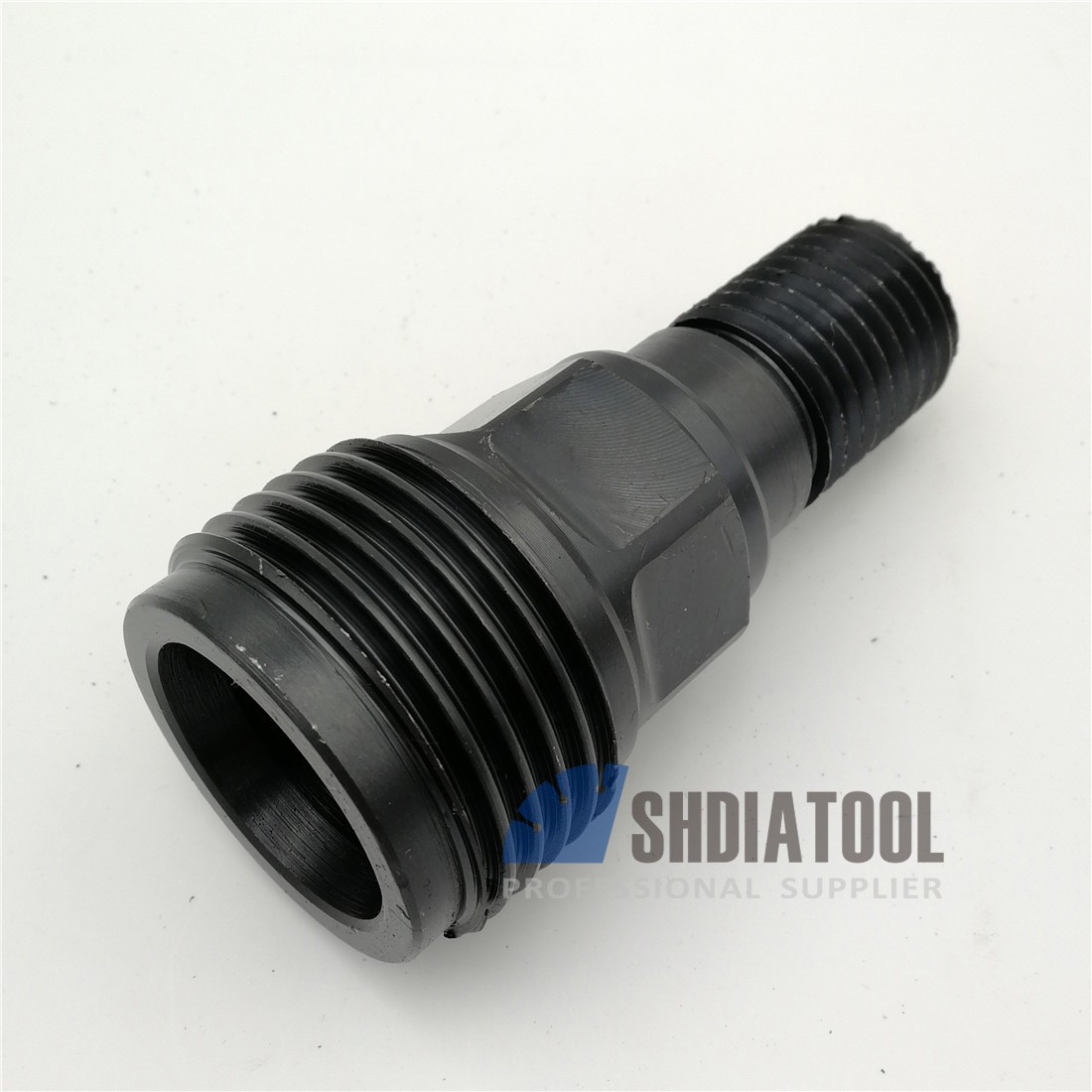

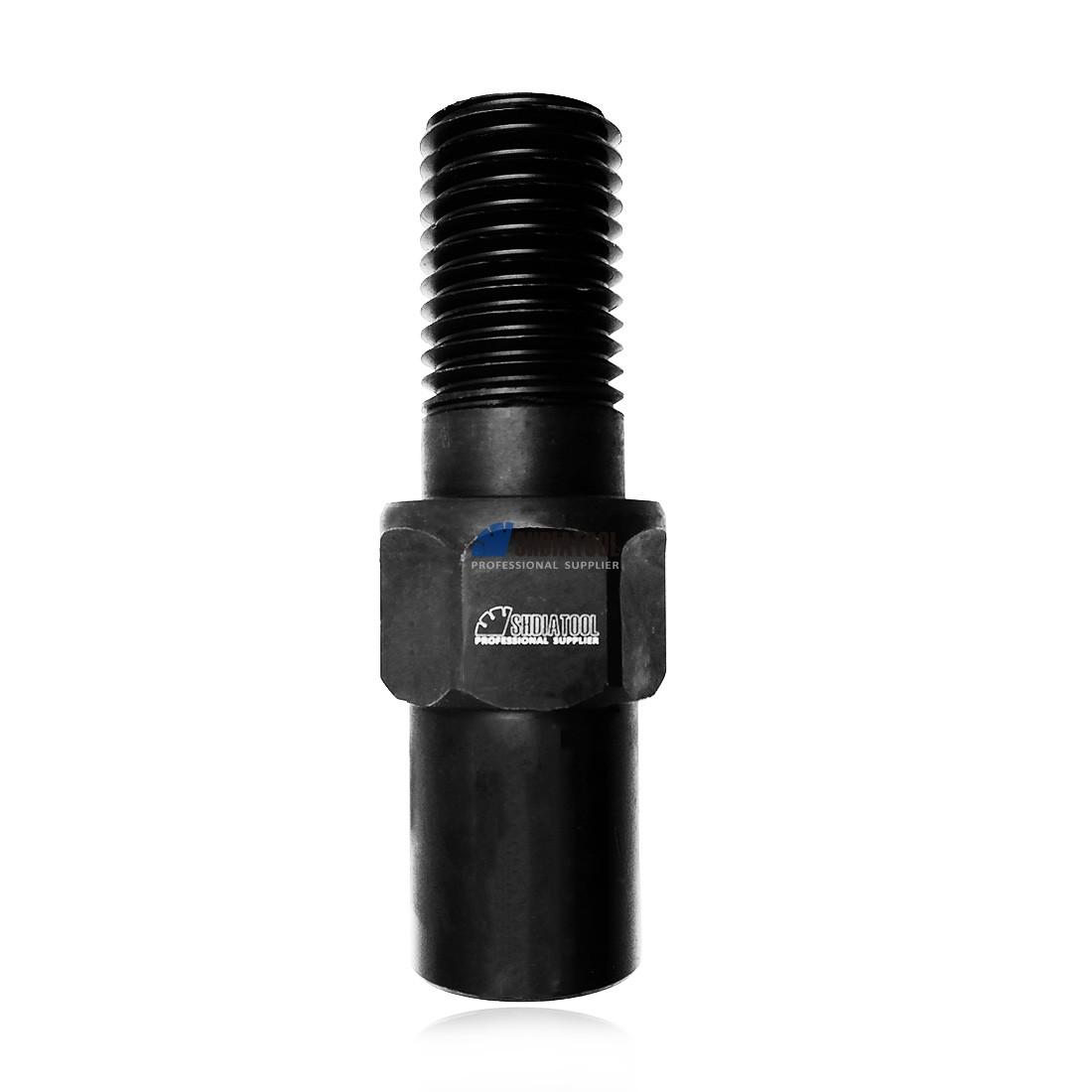

1.Hilti DD200 Converting Adaptor Diamond Core Drilling:

Hilti DD200 Converting Adaptor, Total length 130mm,

Fit all Hilti DD200 drilling machines & rigs Through this adapter

Simply screw the adaptor into the end of your diamond core drill

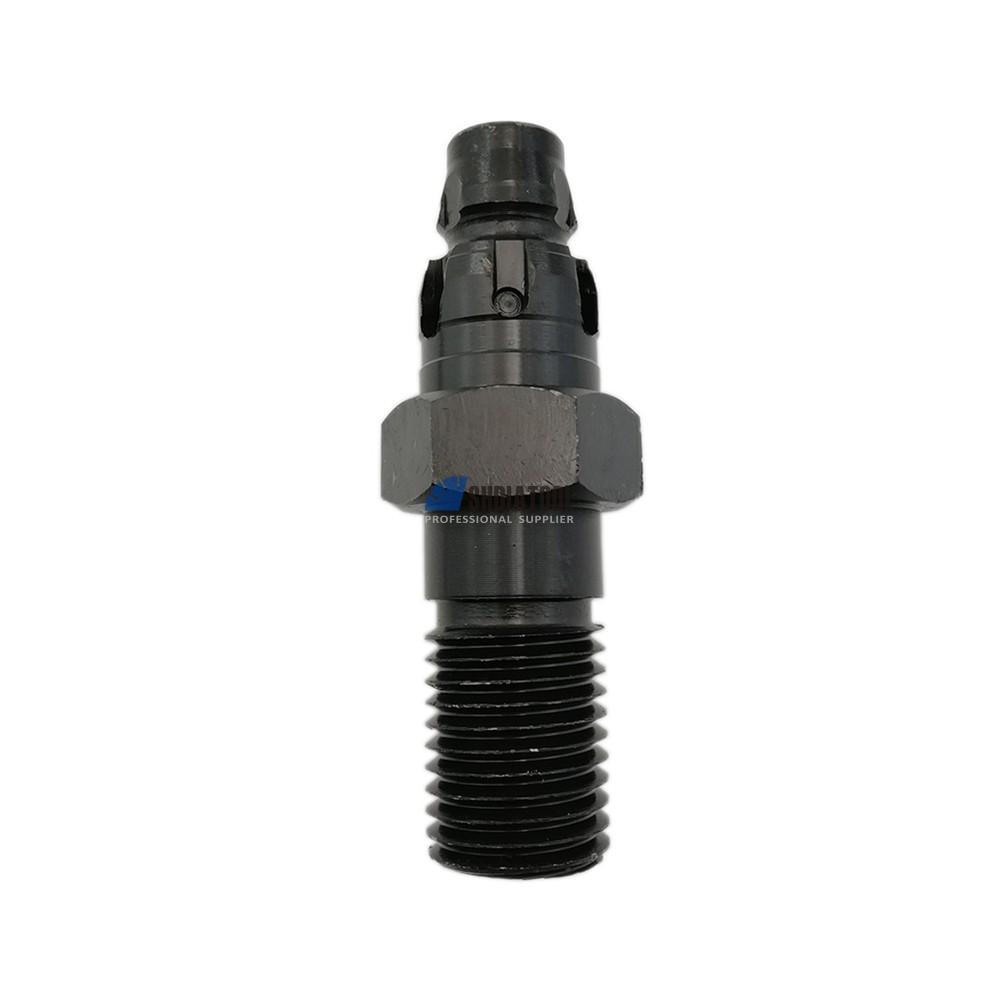

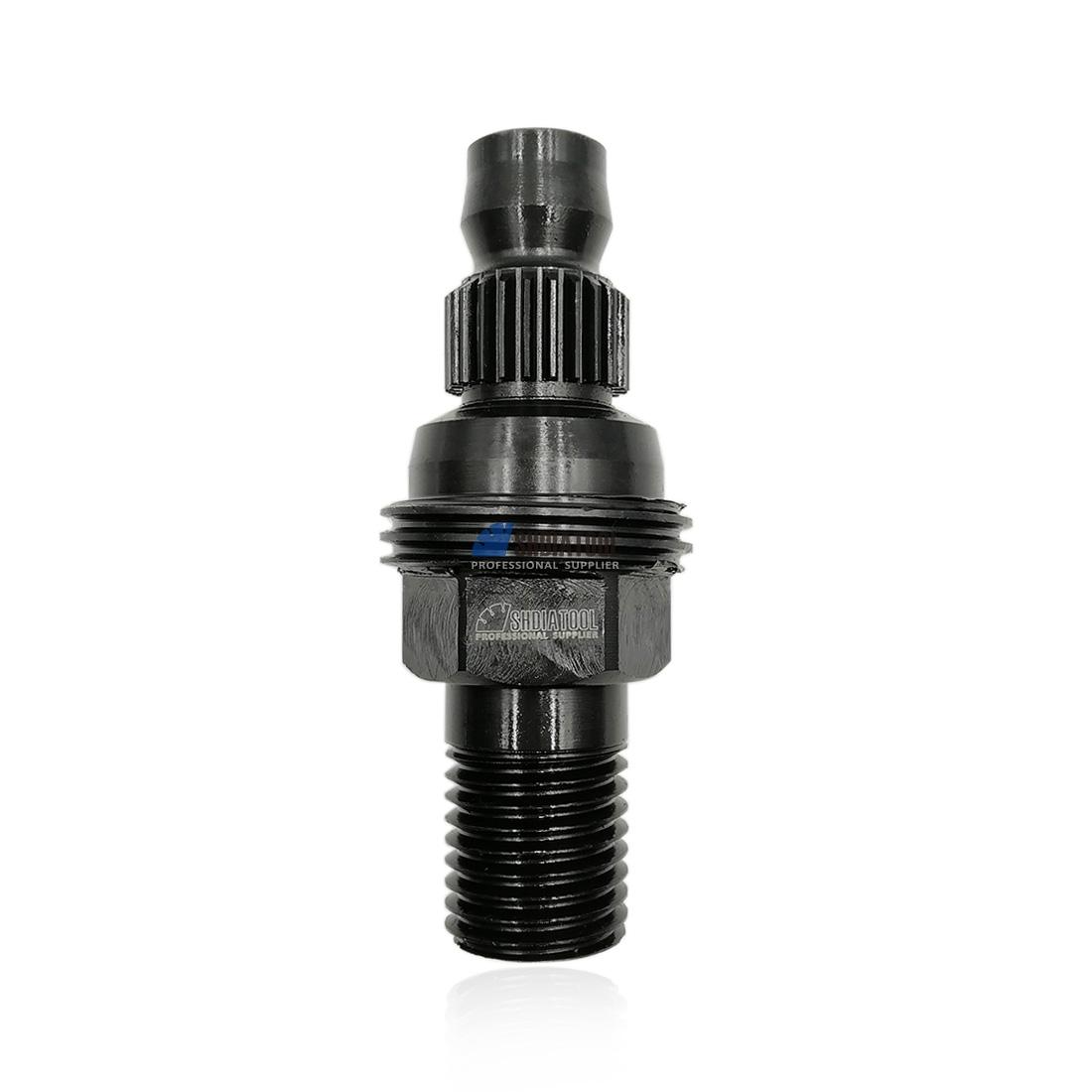

2.Hilti Core drill bit Adapter- Quick Disconnect Male Spline to 1-1/4"- 7 Thread:

Hilti DD-BU to 1-1/4"-7 and 1/2 BSP Threaded ,total length 136mm,

For HILTI Core Drill Machine DD750 DD160 DD250 DD400

Fit the 1 1/4UNC or 1/2 BSP thread diamond core bits on Hilti Machine DD 750/160/250/400 Through this adapter

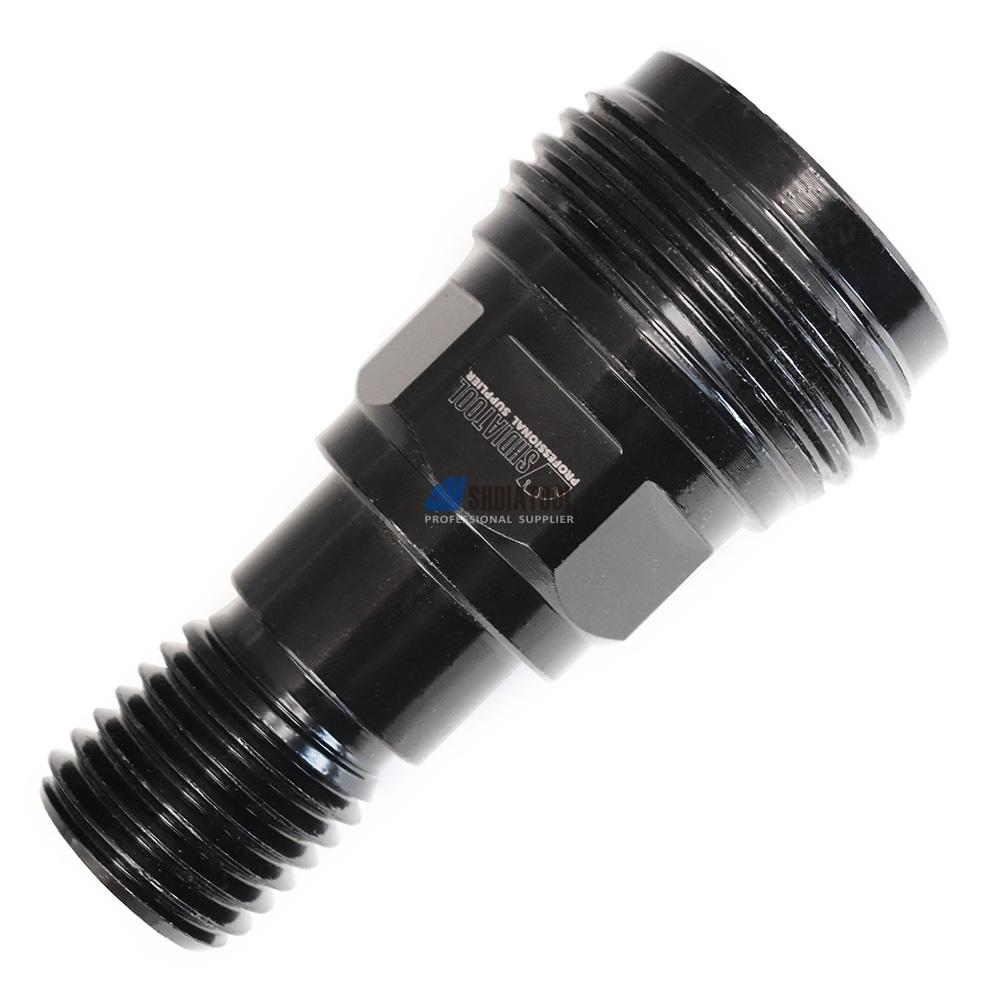

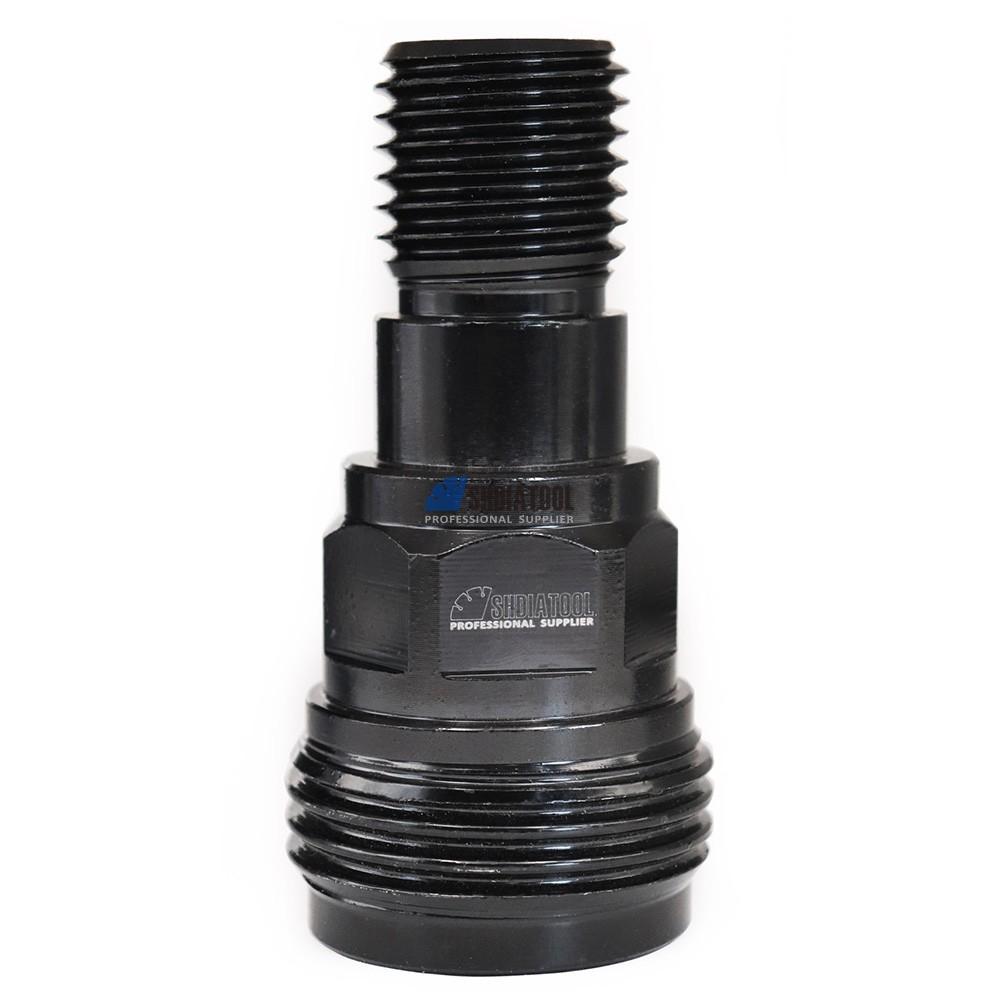

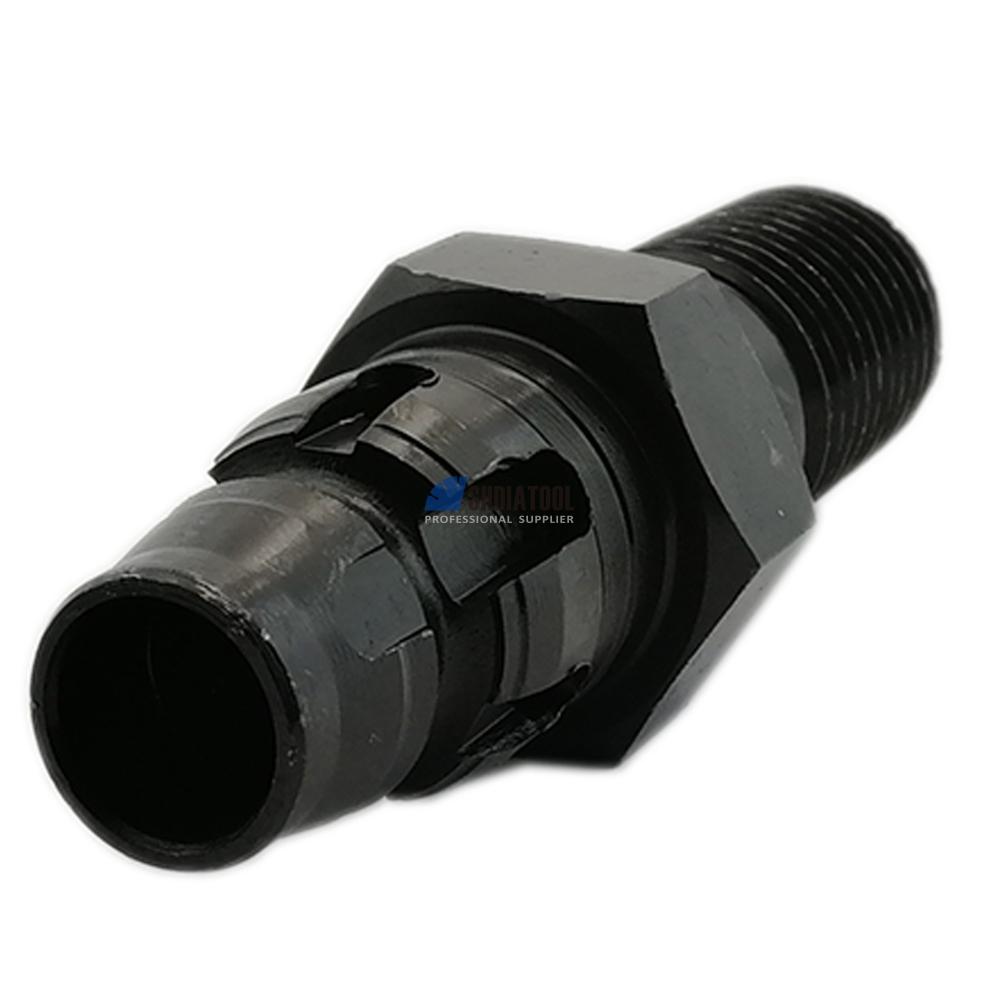

3.Diamond Core Bits Adapter (DD-BL to DD-BS) :

for HILTI DD160E DD200 DD250E DD350:

Hilti DD-BL Chuck to 1-1/4"-7 (BS) Threaded Bit Connection, total length 115MM

Fit the 1 1/4UNC or 1/2 BSP thread diamond core bits on Hilti Machine DD 160E/250E/200/350 Through this adapter

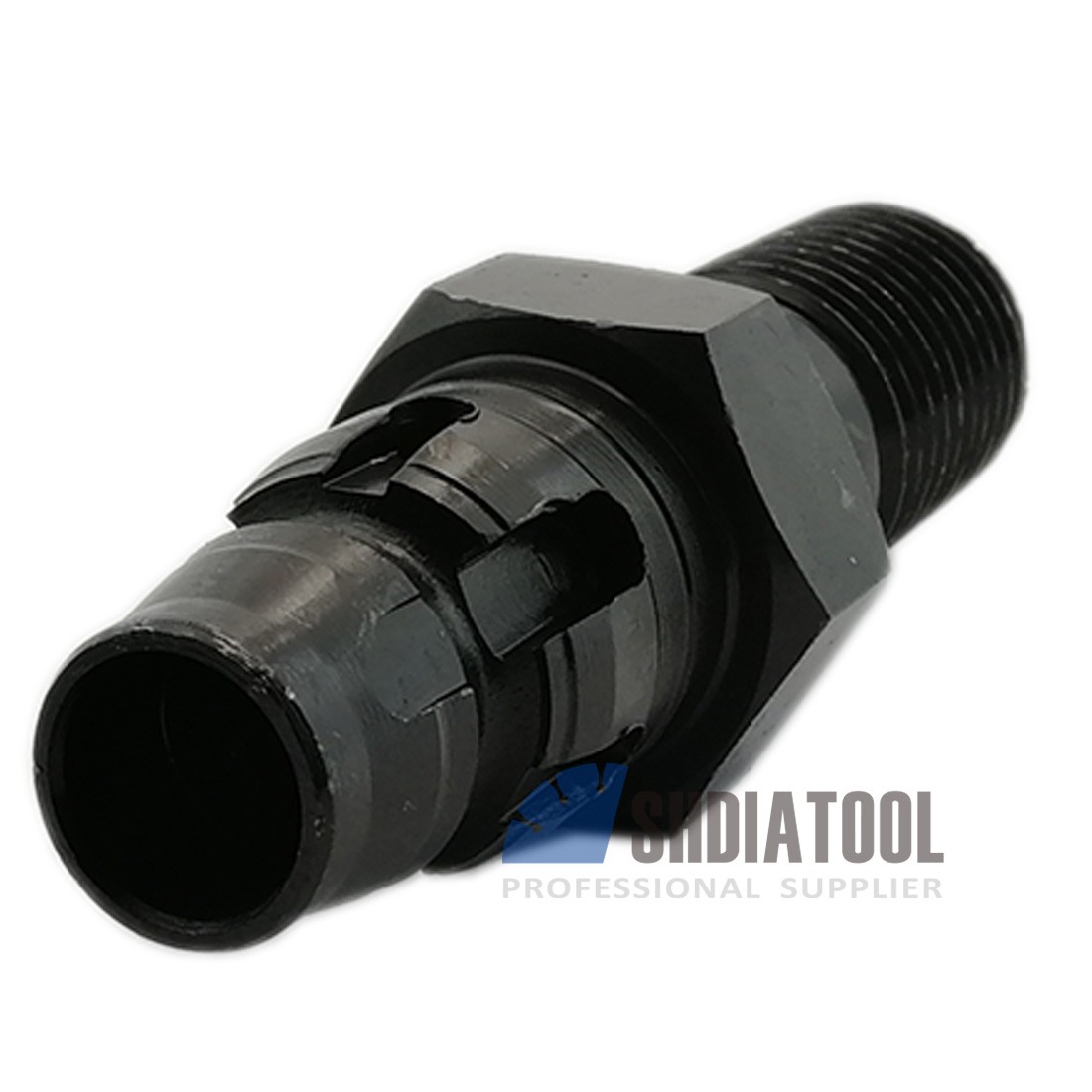

4.Diamond Core Bits Adapter DD-BI

DD-BI to 1-1/4" UNC outside thread and 1/2" BSP inside thread

for HILTI BI chuck DD100 DD110-W DD120 DD130 DD150-U

Fit normal core bits with 1-1/4" UNC or 1/2” BSP thread to HILTI Machine

Good strength adapter is made from a solid piece of steel
