Home Products Diamond Core Drill Bits 8PCS 5/8''-11 Vacuum Brazed Diamond Core

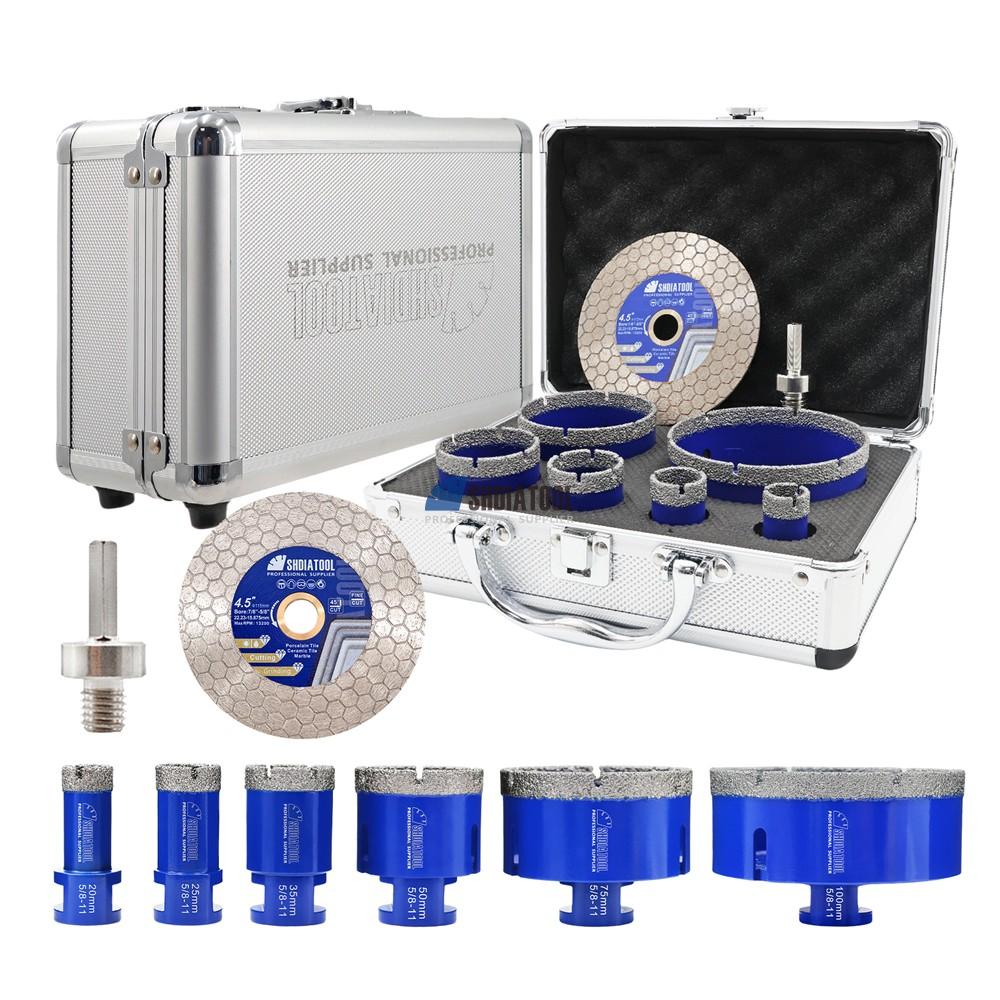

8PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bit Drilling Bit Set for Marble Granite Tile Masonry Saw Blade Hole Saw Cutter Kit
  1. 8PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bit Drilling Bit Set for Marble Granite Tile Masonry Saw Blade Hole Saw Cutter Kit
  2. 8PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bit Drilling Bit Set for Marble Granite Tile Masonry Saw Blade Hole Saw Cutter Kit
  3. 8PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bit Drilling Bit Set for Marble Granite Tile Masonry Saw Blade Hole Saw Cutter Kit
  4. 8PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bit Drilling Bit Set for Marble Granite Tile Masonry Saw Blade Hole Saw Cutter Kit

8PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bit Drilling Bit Set for Marble Granite Tile Masonry Saw Blade Hole Saw Cutter Kit

Product Item:A8546010K16T

Drill Bits Diamond Height:10mm

Saw Blade Diamond Height:20mm

Saw Blade Bore:22.23mm

Package Size:24x17x9CM

Inquiry Whatsapp

Description

item
1set/8pcs 5/8''-11 Diamond Drilling/Cutting Set with HEX Adapter
Brand Name
SHDIATOOL or OEM

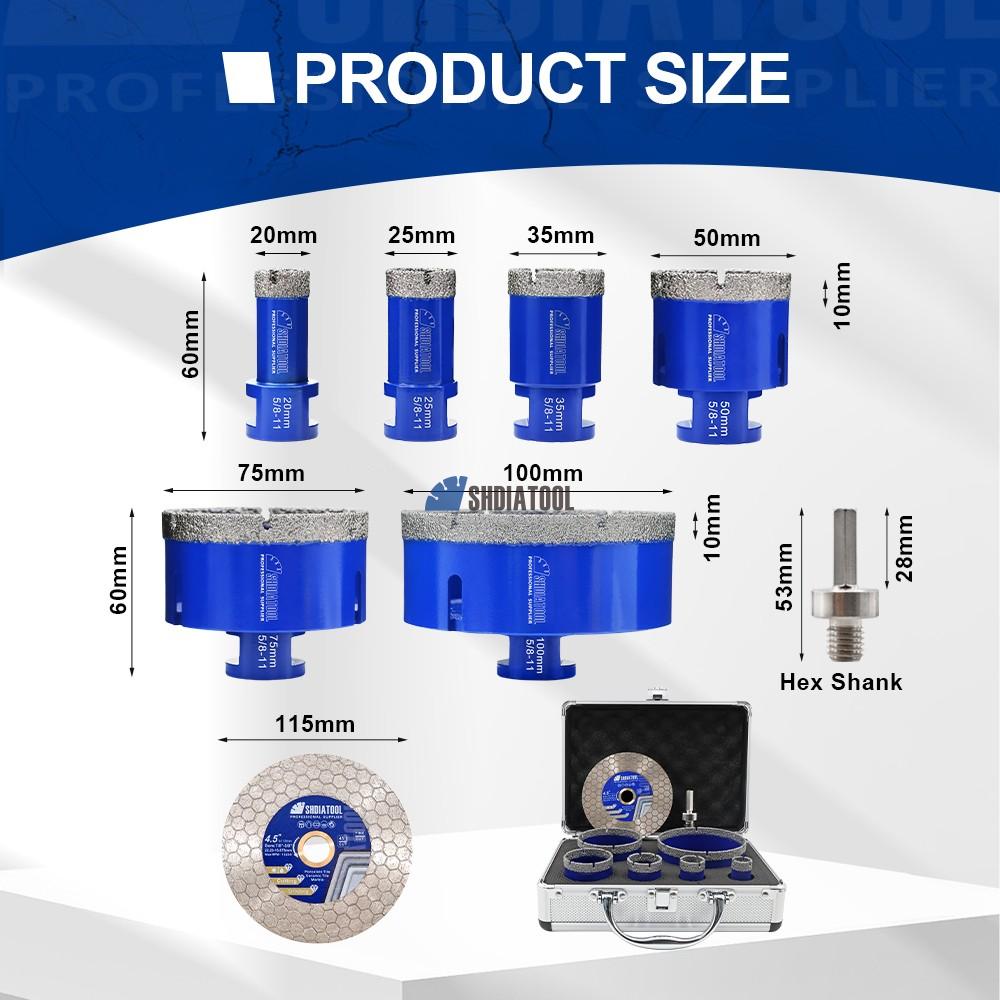

Specification
Drill Bit: Diameter 20/25/35/50/75/100mm
Connection: 5/8''-11;  Diamond height 10MM; Total length: 60mm

Saw Blade:Diameter 4.5in/115mm
Bore:22.23mm Diamond Height:10mm Thickness:1.2mm

Adapter: 5/8''-11 to Hex Shank
Box Size: 24x17x9CM
Application

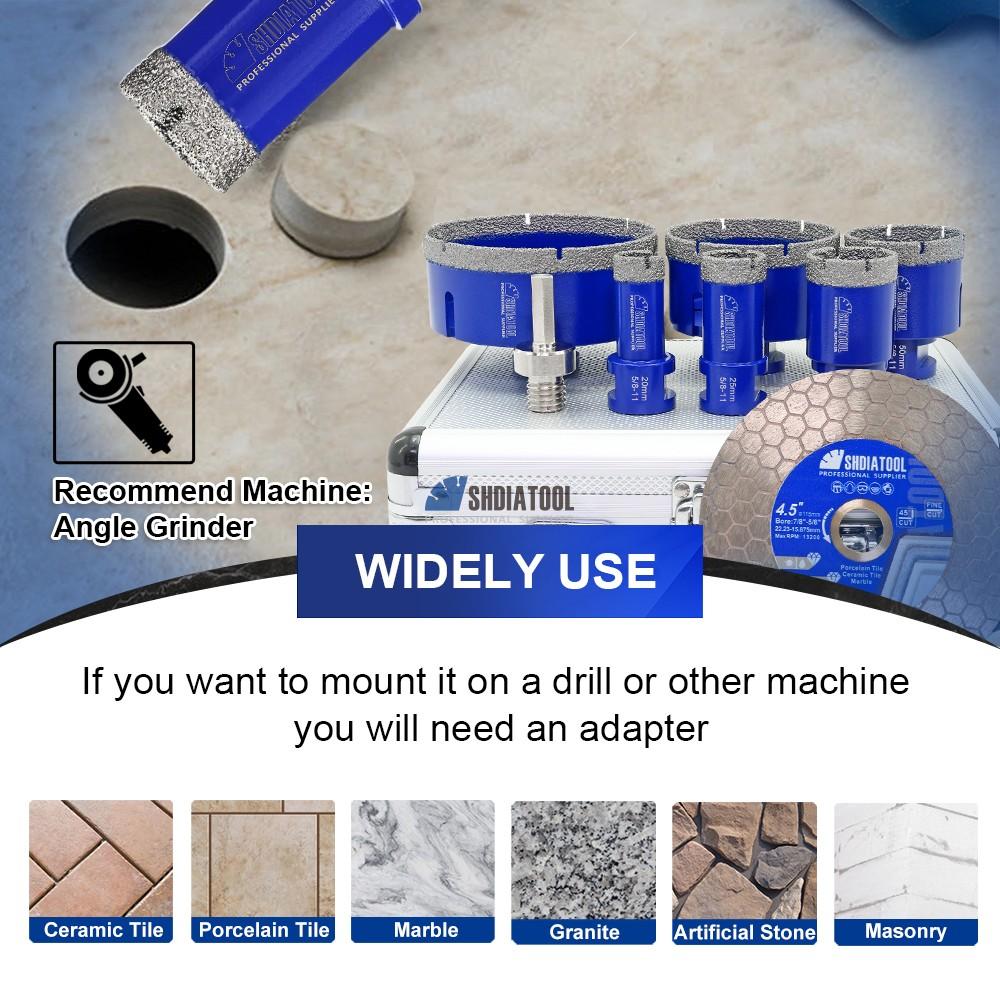

Dry/wet drilling for porcelain tile, granite, marble, ceramic, masonry, stone.

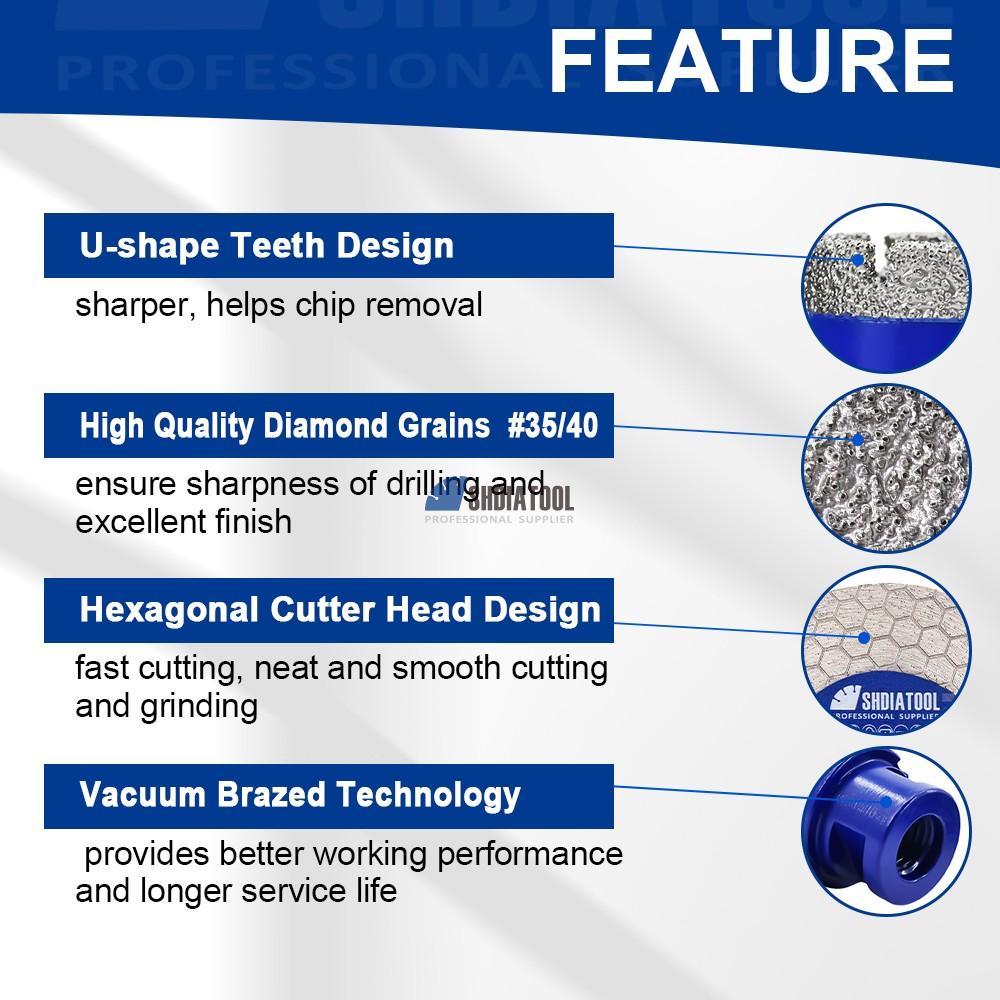

Feature
1. This hole saw drill bit set adopts 5/8''-11 thread, suits for angle grinder.
The design of U-shaped chip grooves provides longer working life, fast and smooth drilling.

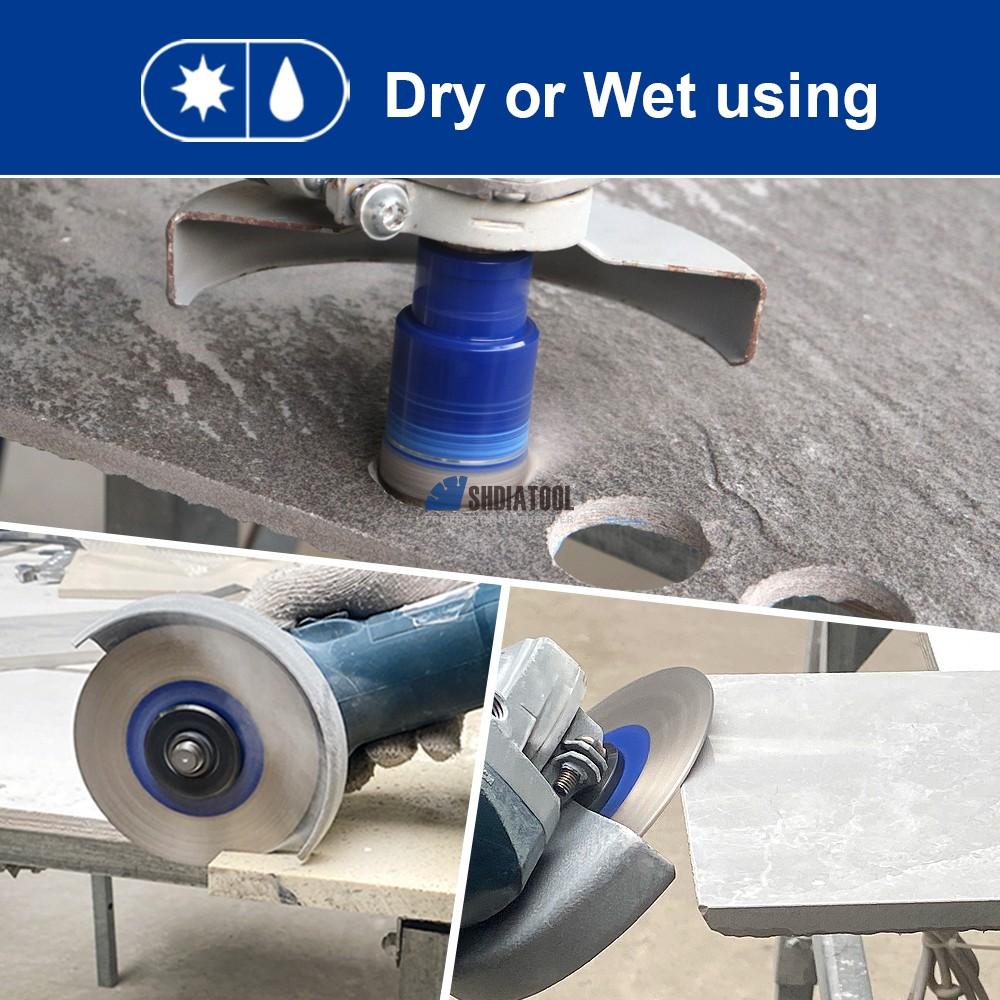

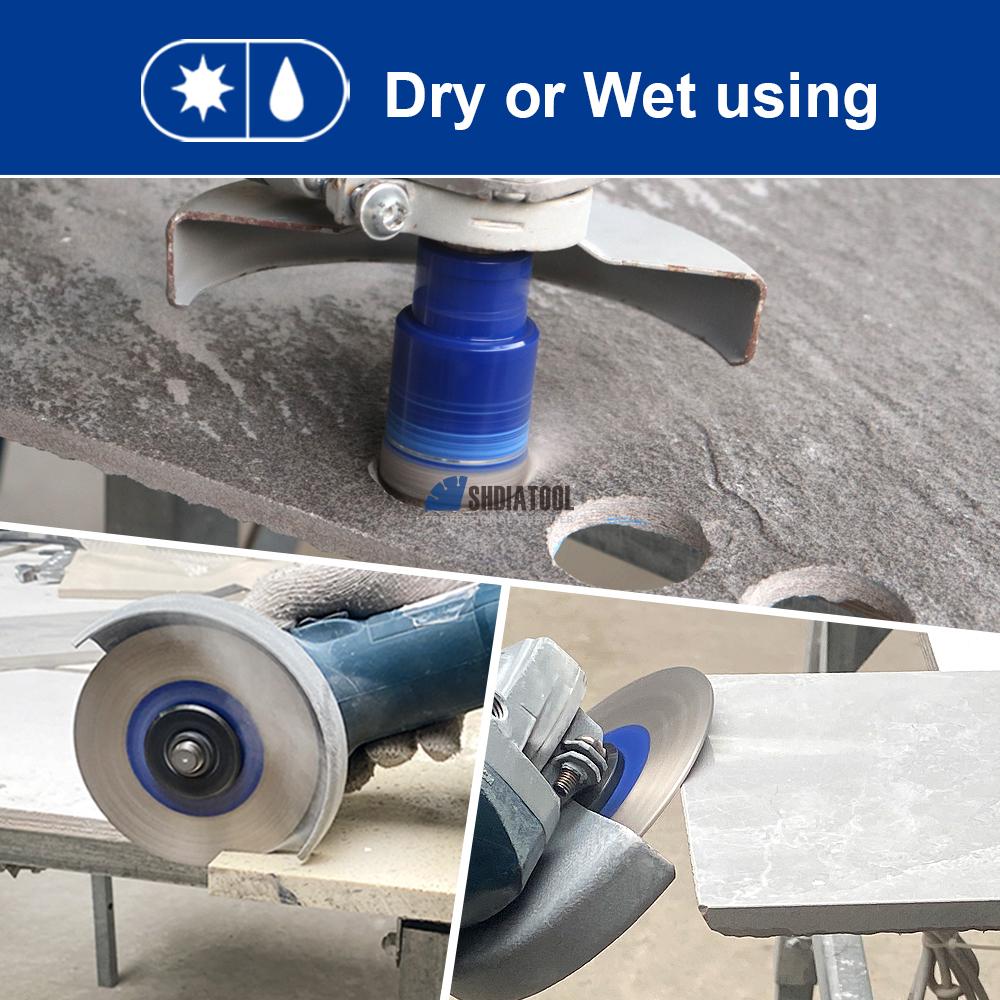

2. The diamond hole saw drill bit set can be used both dry and wet, meet your various needs, recommended adding some water to prolong the service life.
3. Easy To Operate,First, keep the hole drill at a 45-degree angle, and then continue drilling at a 90-degree angle with the horizontal surface. It is easy to install and operate conveniently.
4. Drilling/Cutting 2-functions in one to meet different operational needs.
5.Packed in an aluminium box, it's easy to give as a gift or carry yourself.
