Product Name
|

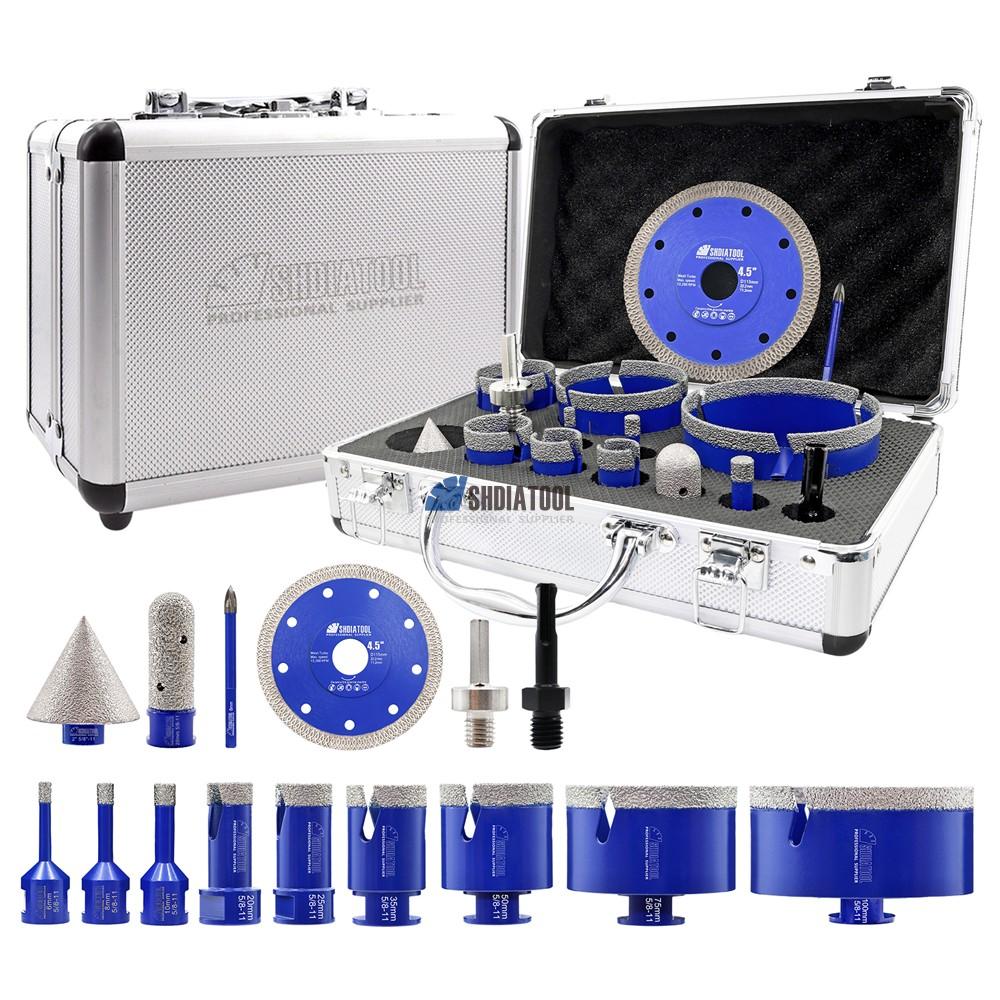

5/8''-11 Thread Diamond Core Drill Bit Beveling Chamfer Saw Blade Kit
|

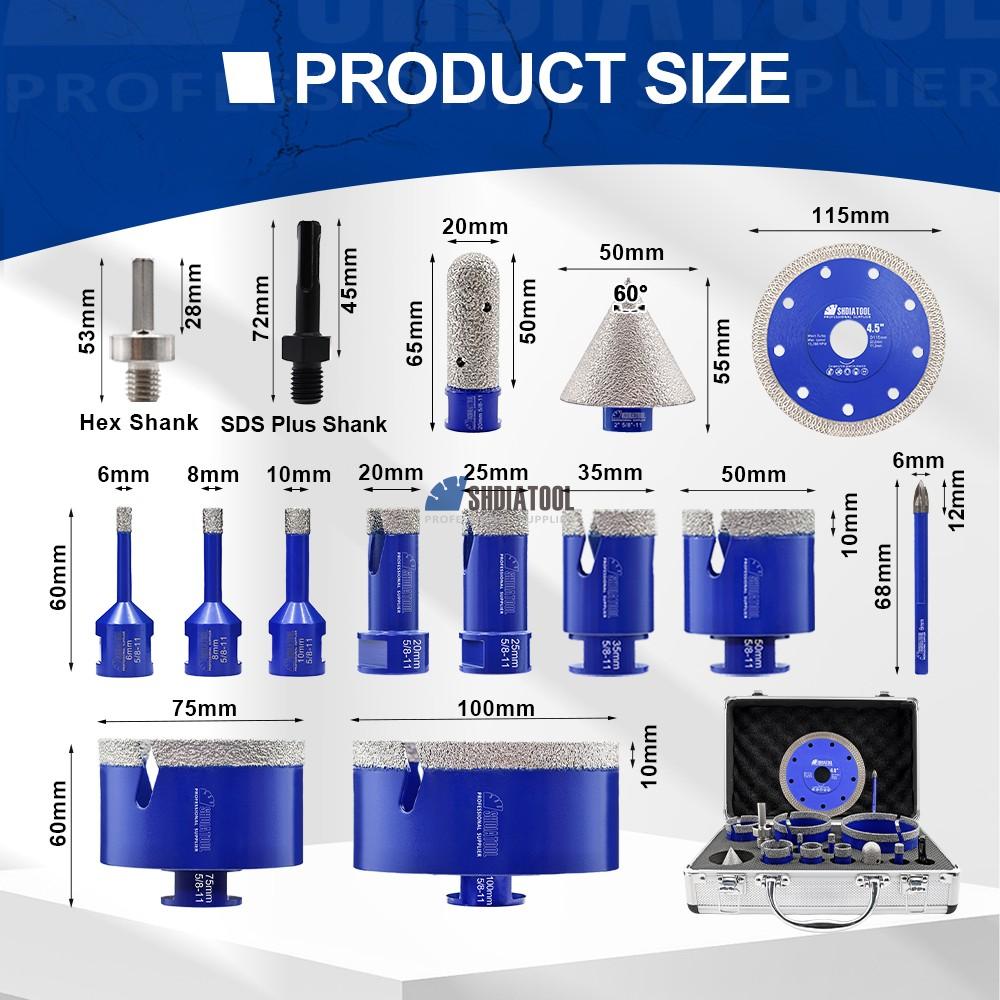

Specification
|
Drill Bit: Dia:6/8/10/20/25/35/50/75/100mm Diamond Height:10mm Total Height:60mm
Carbide Drill Bit:Dia:6mm Diamond Height:12mm Shank:Triangle Shank
Finger Bit: Dia:20mm Working length 50mm Total length: 65mm
Chamfer: Dia:2in/50mm Working length 50mm Total length: 55mm
Saw Blade:Dia 4.5in/115mm Diamond Height:10mm Bore:7/8in(22.23mm)
Adapter: Hex Shank/SDS Shank to 5/8''-11
Package Size: 29*18*10CM
|

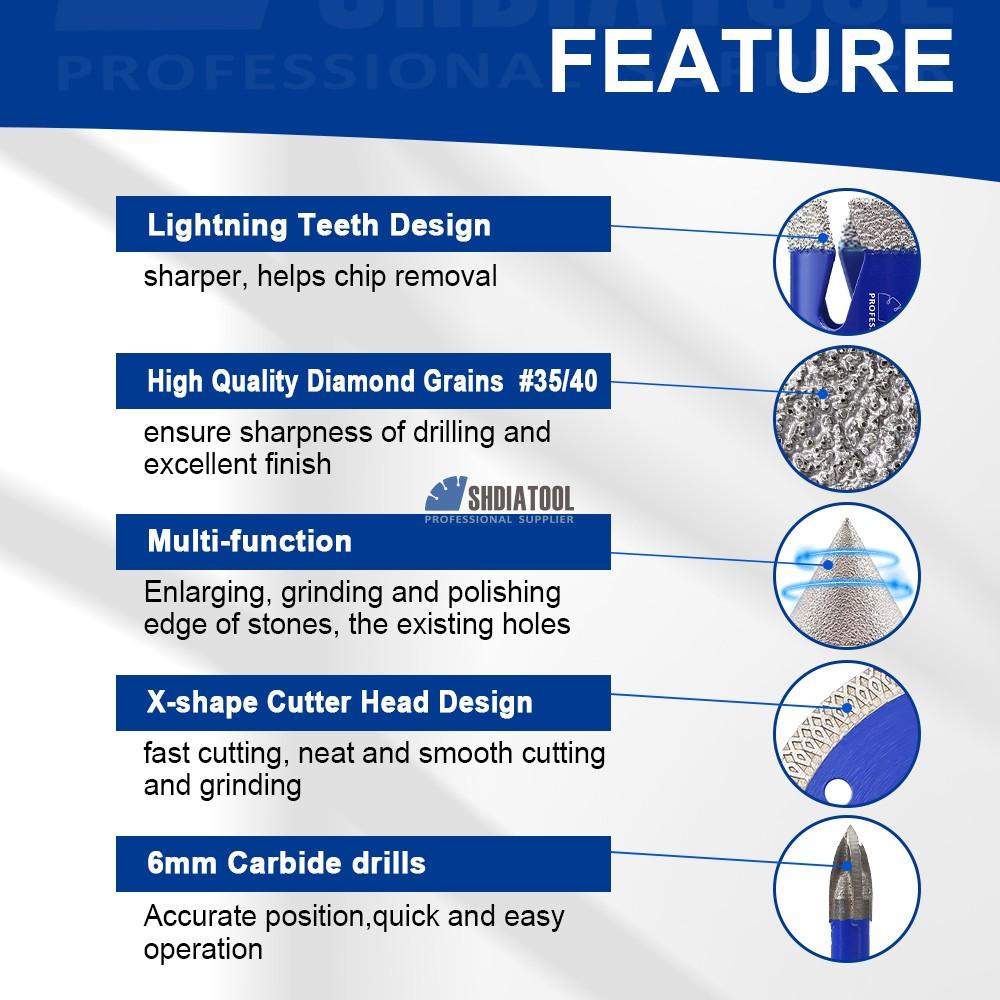

Feature
|
1.Drilling+Milling+Beveling Set,meet different working needs;
2.The core bits can be used in either drill press or hand held drill, including cordless drills.
3.Lightning teeth design; conducive to debris and heat dissipation, better performance;

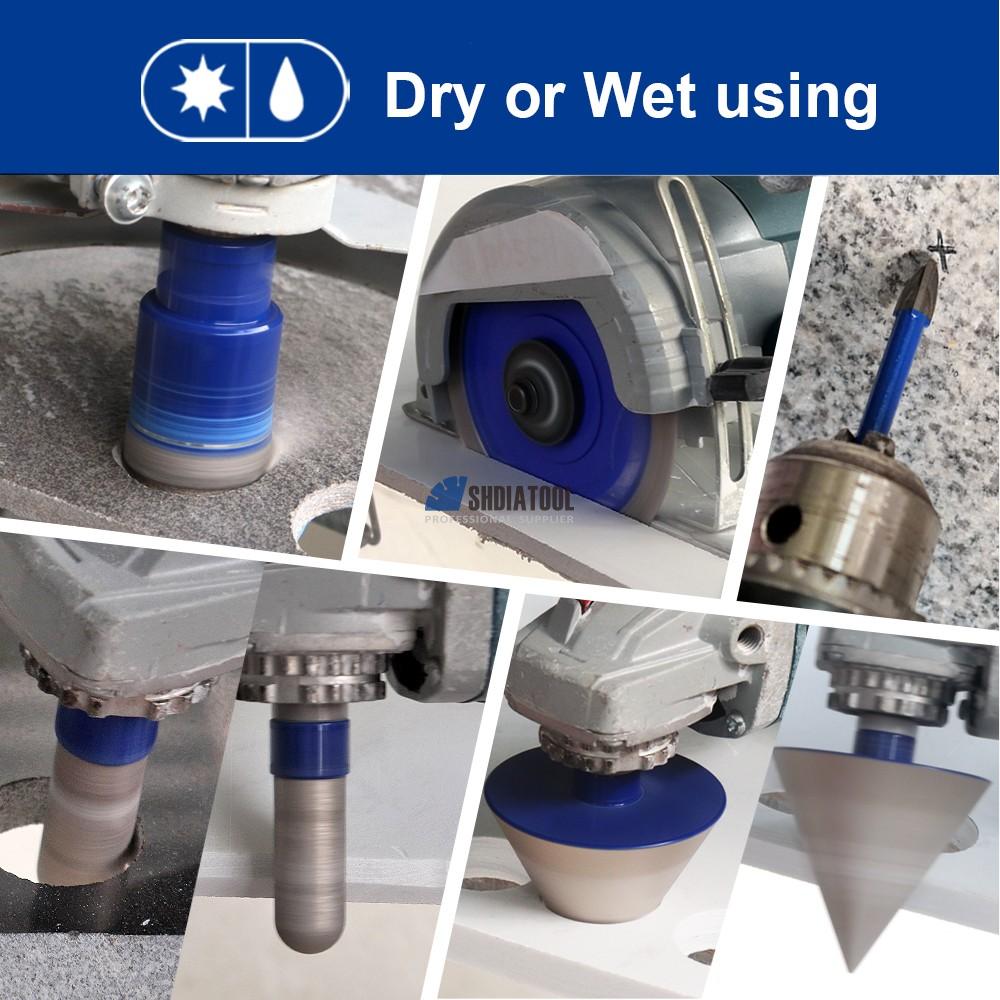

4.The diamond hole saw drill bit set can be used both dry and wet, meet your various
needs, recommended adding some water to prolong the service life.
5.Dry/Wet Cutting.This hole saw bit can be cut arbitrarily in wet or dry to meet various user environments. A little water will make it smoother. 6.Easy To Operate,First, keep the hole drill at a 45-degree angle, and then continue drilling at a 90-degree angle with the horizontal surface. It is easy to install and operate conveniently. |

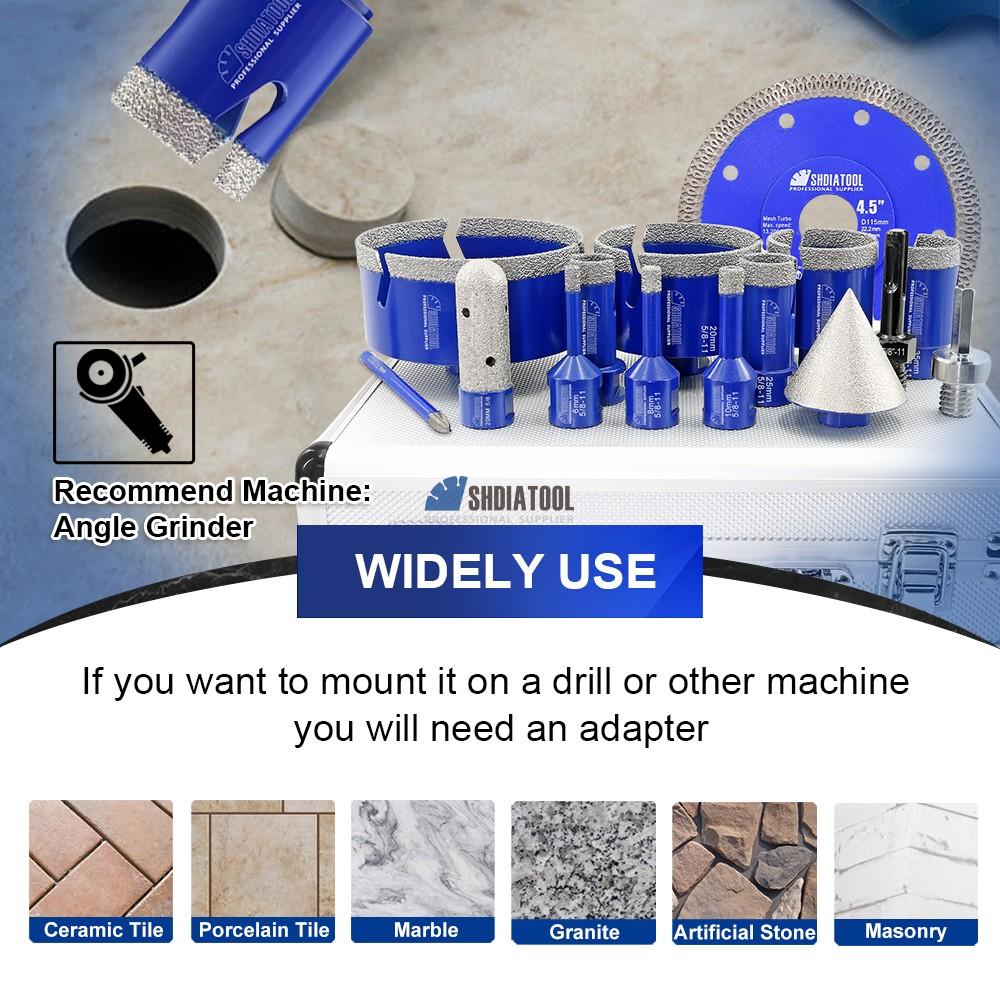

Application
|
* Drill Bit/Saw Blade: Dry drilling cutting for porcelain tile, granite, marble, ceramic,masonry.
* Milling Beveling Bit: Enlarge, shape and/or round bevel existing holes in Porcelain, Hard Ceramic, marble and granite. * Adapter: 5/8''-11 thread core bits can be fitted on hand drill or electric drill. |
