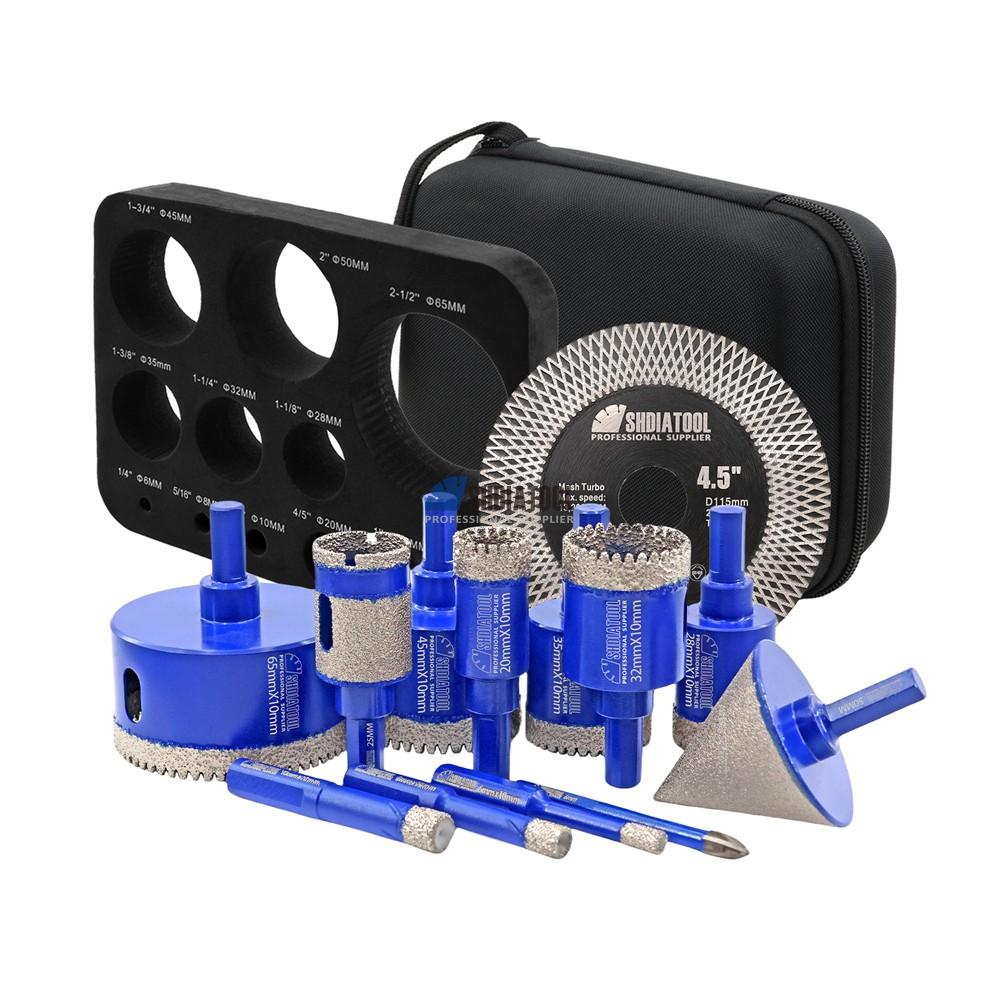

13PCS Triangle Shank Vacuum Brazed Diamond Core Drill Bit Beveling Chamfer Milling Cutter Saw Blade Set for Tile Marble Granite
  1. 13PCS Triangle Shank Vacuum Brazed Diamond Core Drill Bit Beveling Chamfer Milling Cutter Saw Blade Set for Tile Marble Granite
  2. 13PCS Triangle Shank Vacuum Brazed Diamond Core Drill Bit Beveling Chamfer Milling Cutter Saw Blade Set for Tile Marble Granite
  3. 13PCS Triangle Shank Vacuum Brazed Diamond Core Drill Bit Beveling Chamfer Milling Cutter Saw Blade Set for Tile Marble Granite
  4. 13PCS Triangle Shank Vacuum Brazed Diamond Core Drill Bit Beveling Chamfer Milling Cutter Saw Blade Set for Tile Marble Granite

13PCS Triangle Shank Vacuum Brazed Diamond Core Drill Bit Beveling Chamfer Milling Cutter Saw Blade Set for Tile Marble Granite

Product Item:A86026510K4O

Drill Bit Diamond Height:10mm

Chamfer Working Height:43mm

Milling Diamond Height:5mm+25mm

Saw Blade Bore:22.23MM

Inquiry Whatsapp

Description

Product name
Triangle Shank Diamond Drill Bit Saw Blade Chamfer Milling Cutter Set

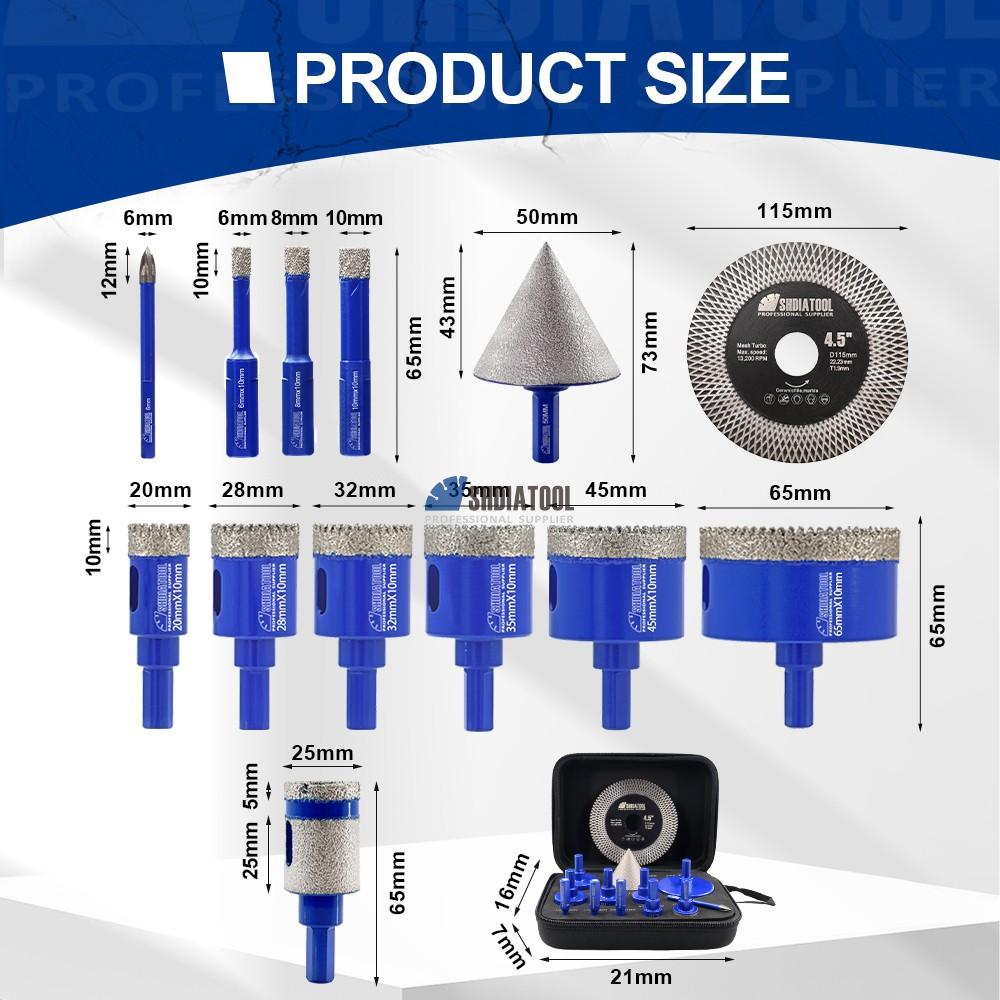

Specification
Drill Bit: Shank:Triangle Shank
Diameter:6/8/10/20/28/32/35/45/65MM  Diamond Height:10MM Total Length: 65MM
Chamfer Bit: Shank:Hex Shank
Diamter:50mm  Working length:43mm  Grit:#80
Milling Cutter: Shank:Triangle Shank
Diameter:25mm  Drilling Height:5mm  Milling Height:25mm
Double Sided Saw Blade: Diameter:115mm
Front Diamond Height:20mm  Back Diamond Height:10mm Bore:7/8in  Thickness:1.9mm
Box Size:21*16*7CM
Adavantages
Drill Bits:
1, vacuum brazing technology precision manufacturing, improve product quality and life, cost-effective;
2,Serrated special cutter head, greatly improving the sharpness and drilling speed, saw teeth between a number of chip slots, in the drilling of dust can be quickly discharged, not easy to clog;

Milling Cutter:
Grinding and drilling in one,the special design of the combination of grinding and drill bit breaks the processing mode of drilling first and then grinding. It can drill while grinding,with very high efficiency;

Beveling Chamfer:
The #80 fine-grained diamond, through fine grinding, can produce excellent surface effect on the edge of the hole, smooth and clean;

Saw Blade:
1.Double side segment design,multifunction,both cutting and grinding.
2. X mesh turbo segment,faster cutting,less chipping,reduce dust.
3.Hot press technology,high quality steel body,prolongs working life.
Application
