11PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bits Saw Blade Set Tile Diamond Hole Saw Kit for Granite Marble Drilling
  1. 11PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bits Saw Blade Set Tile Diamond Hole Saw Kit for Granite Marble Drilling
  2. 11PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bits Saw Blade Set Tile Diamond Hole Saw Kit for Granite Marble Drilling
  3. 11PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bits Saw Blade Set Tile Diamond Hole Saw Kit for Granite Marble Drilling
  4. 11PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bits Saw Blade Set Tile Diamond Hole Saw Kit for Granite Marble Drilling

11PCS 5/8''-11 Vacuum Brazed Diamond Core Drill Bits Saw Blade Set Tile Diamond Hole Saw Kit for Granite Marble Drilling

Product Item:A8546010K15T

Inquiry Whatsapp

Description

item
1set/11pcs 5/8''-11 Diamond Drilling/Milling/Beveling/Cutting Set with SDS Adapter
Brand Name
SHDIATOOL or OEM

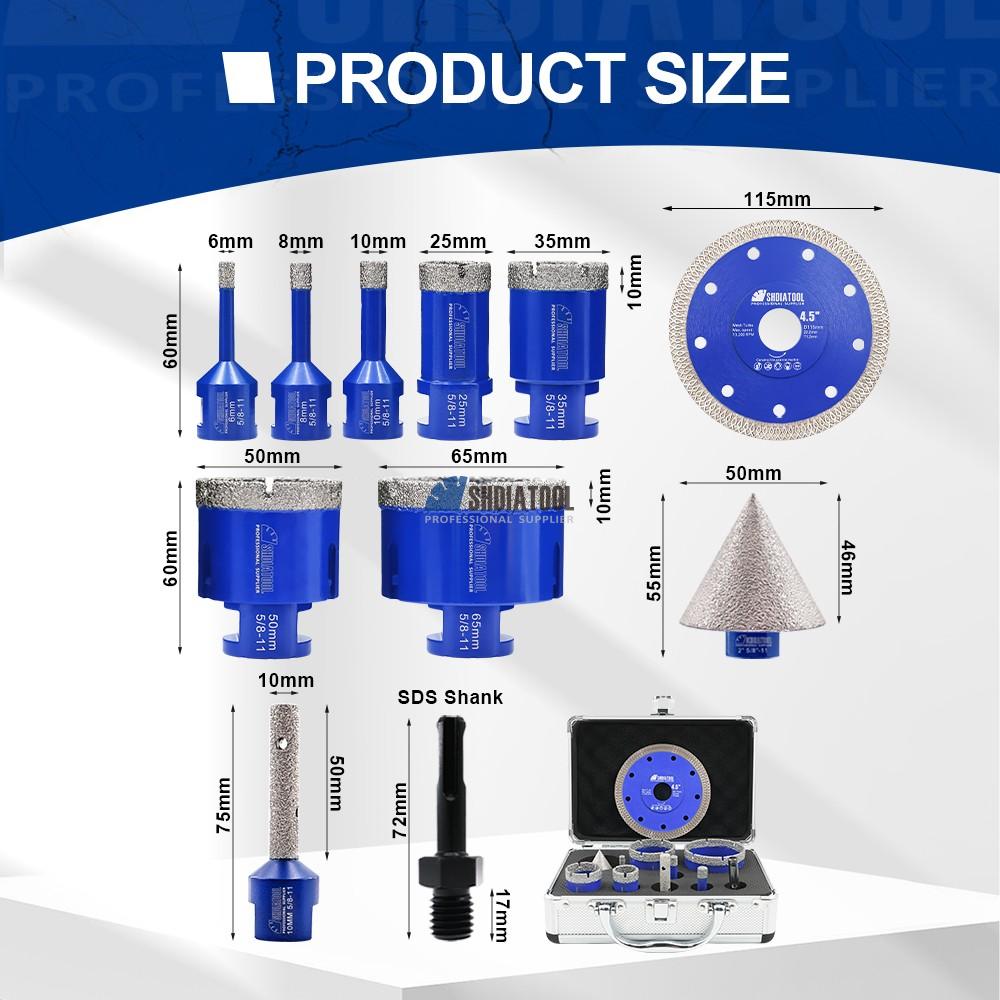

Specification
Drill Bit: Diameter 6/8/10/25/35/50/65mm
Connection: 5/8''-11;  Diamond height 10MM; Total length: 60mm
Finger Milling Bit: Diameter 10mm
Connection: 5/8''-11; Diamond height 50MM; Total length: 75mm
Chamfer Beveling Bit: Diameter 2in/50mm
Connection: 5/8''-11; Diamond height 46MM; Total length: 55mm
Saw Blade:Diameter 4.5in/115mm
Bore:22.23mm Diamond Height:10mm Thickness:1.2mm

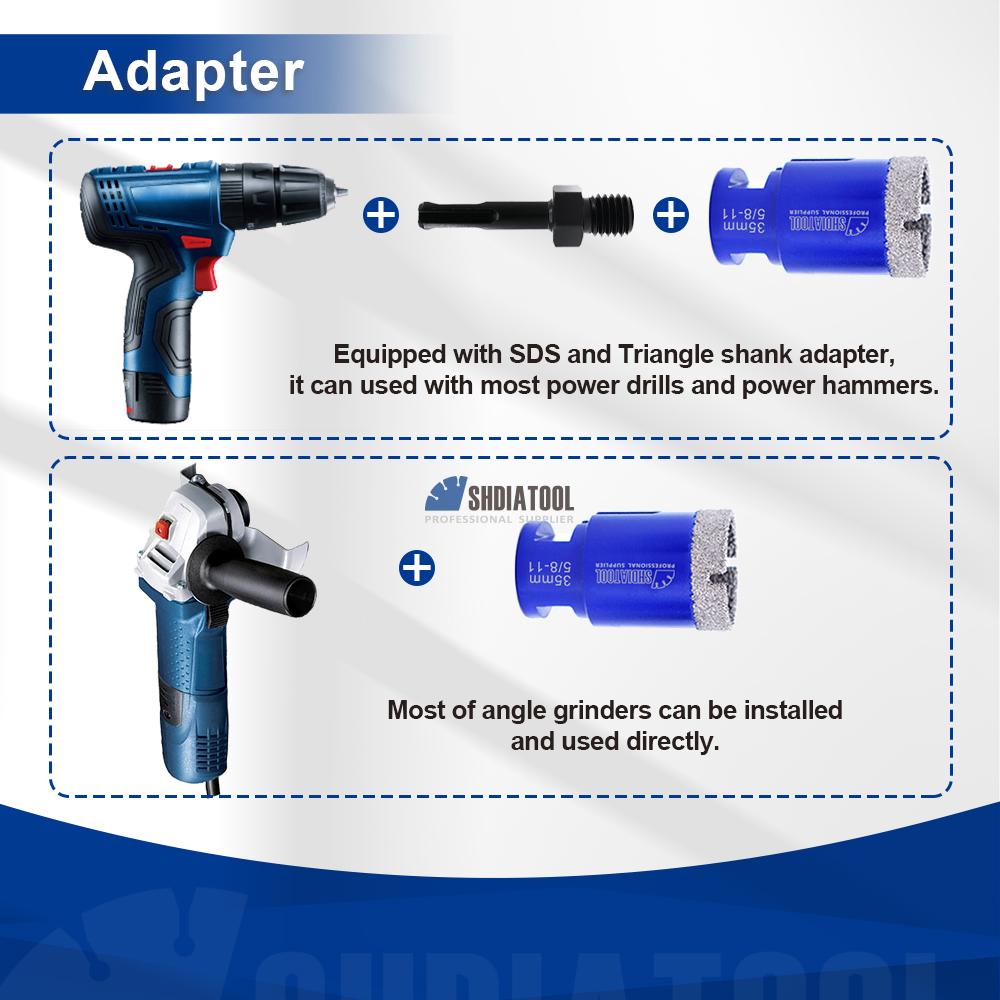

Adapter: 5/8''-11 to SDS Plus
Box Size: 24x15x9CM
Application

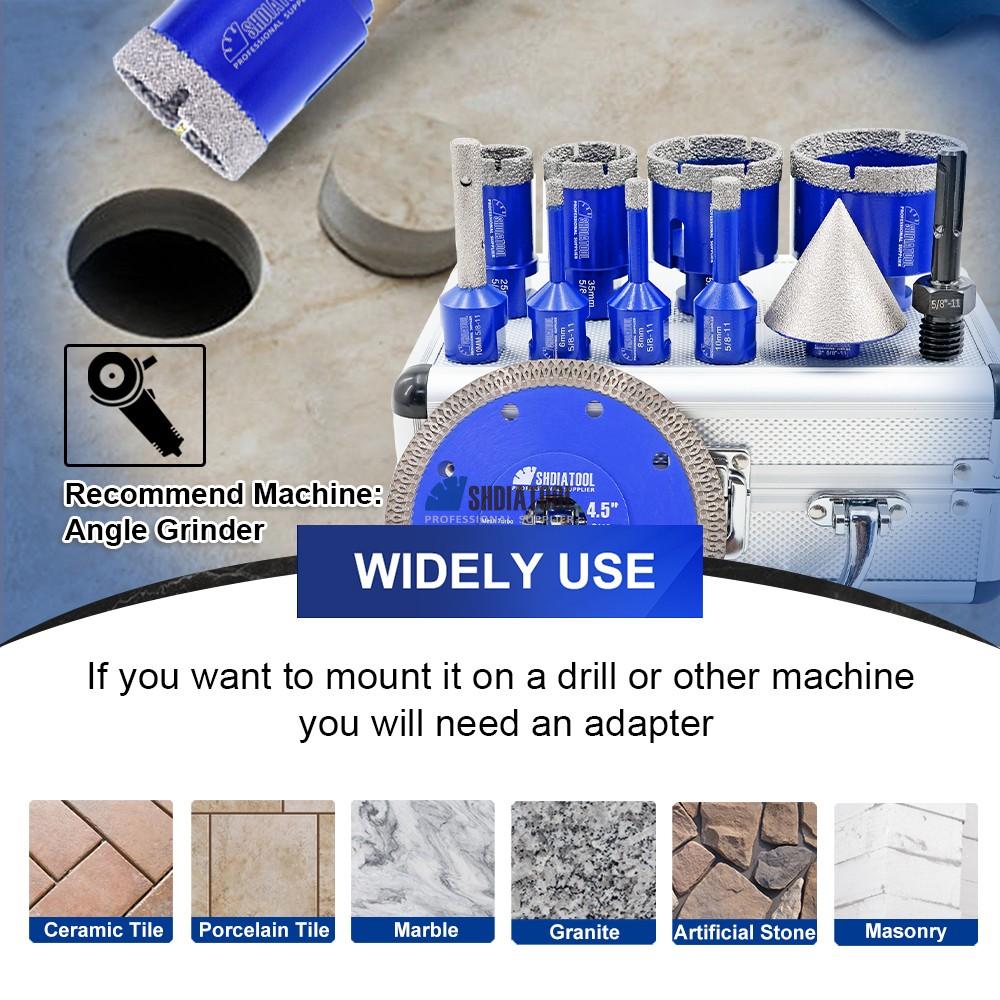

Drill Bit: Dry/wet drilling for porcelain tile, granite, marble, ceramic, masonry, stone.
Feature

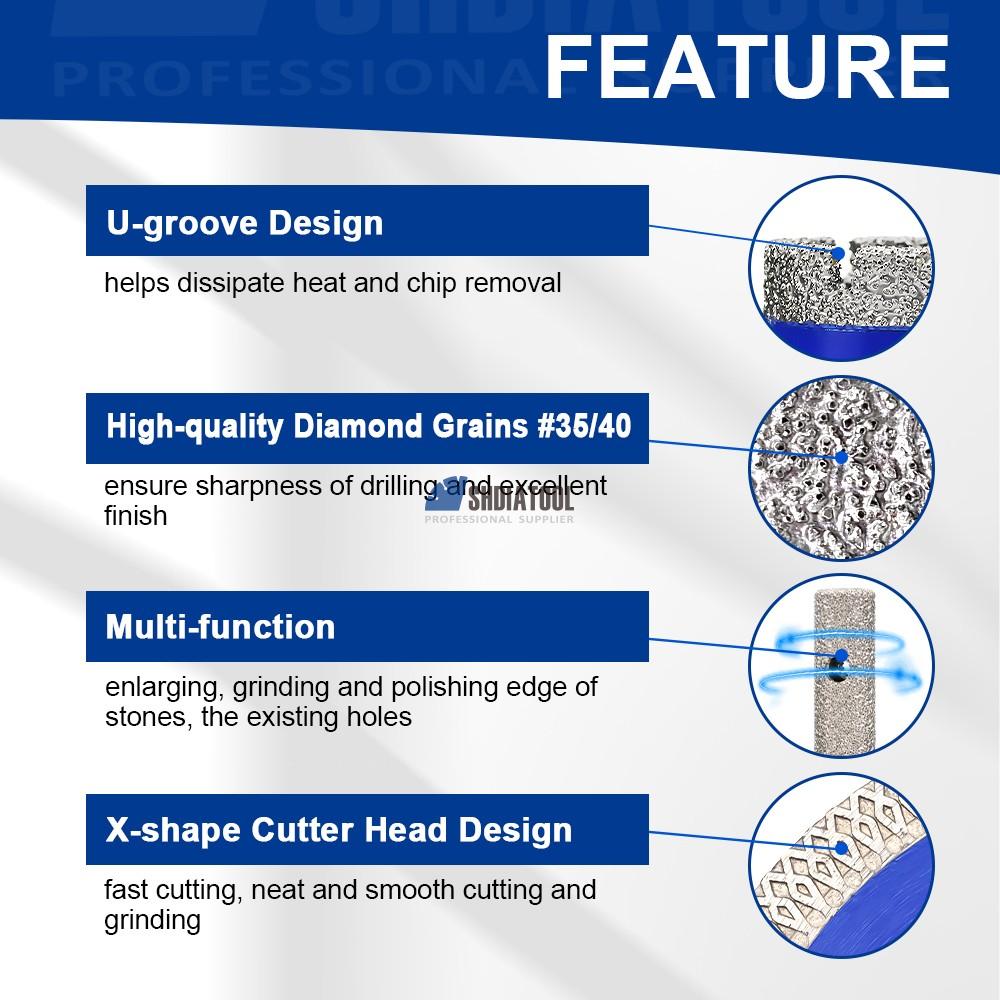

1. This hole saw drill bit set adopts M14 thread, suits for angle grinder. The design of U-shaped chip grooves provides longer working life, fast and smooth drilling.
2. The diamond hole saw drill bit set can be used both dry and wet, meet your various needs, recommended adding some water to prolong the service life.
3. Easy To Operate,First, keep the hole drill at a 45-degree angle, and then continue drilling at a 90-degree angle with the horizontal surface. It is easy to install and operate conveniently.

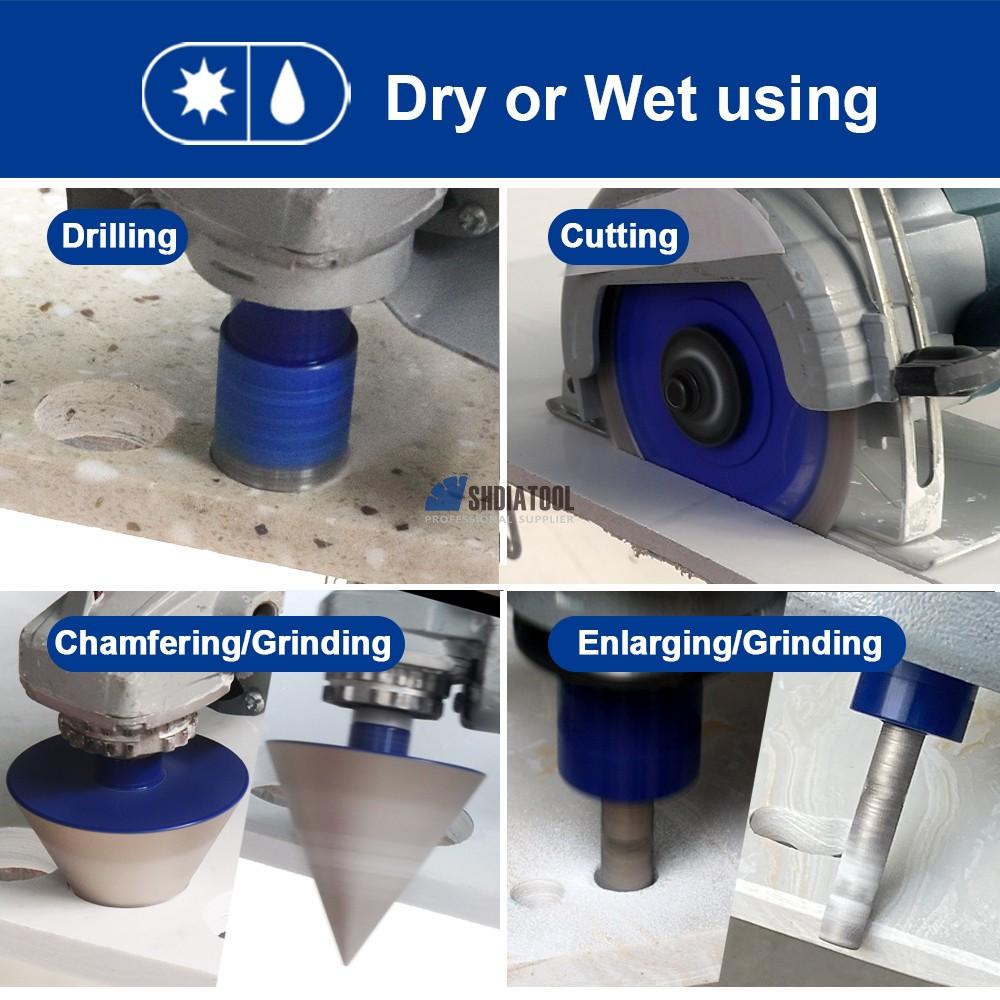

4. Drilling/Milling/Beveling/Cutting 4-functions in one to meet different operational needs.

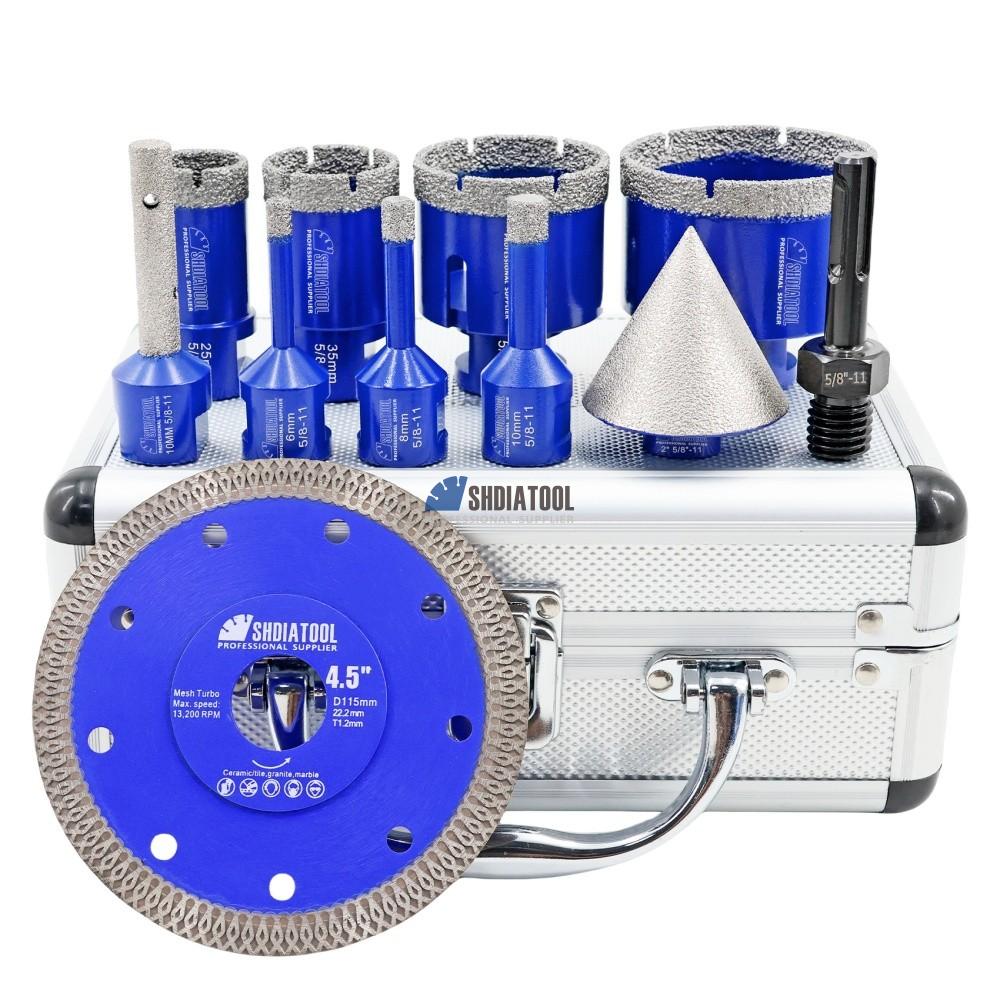

5.Packed in an aluminium box, it's easy to give as a gift or carry yourself.
